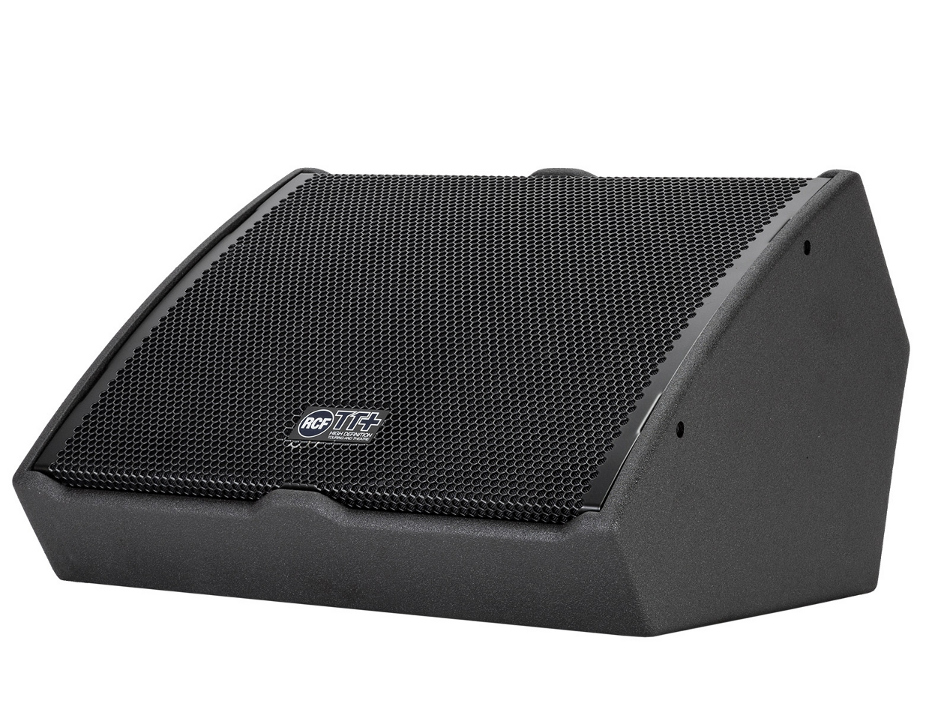

RCF TT25-CXA
15" Active High Definition Coaxial Floor Monitor

OUR PART #:  TT25-CXA

RCF’s TT25-CXA is a full range, high performance coaxial monitor with a linear response curve...
Learn More
Our Price: $2,549.00
List Price: $3,879.00
You save 34%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

RCF TT25-CXA
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

RCF’s TT25-CXA is a full range, high performance coaxial monitor with a linear response curve, consistent coverage and acoustic output – traits that make it a professional choice for demanding situations. The voicing is accurate and deep, the sound is transparent in the mids and extremely accurate at very high frequencies. The size is compact and the profile is very low for a discreet appearance. The TT25-CXA is a high power active system that raises the standard in the touring and theatre sound reinforcement. By producing flat amplitude and phase response, full-range bandwidth and exceptional impulse response, the TT25-CXA far exceeds the capabilities of conventional stage monitors.

The TT25-CXA makes for an ideal vocal stage monitor (main), high-output drum or keyboard monitor; or sidefill monitor for small-to-medium-scale applications.

RCF TT25-CXA Features:

  • 1,100 W Class D Amplifier
  • 60° x 60° constant directivity coverage angle
  • 15" neo coaxial woofer, 3.5" mm voice coil
  • 1.5 " neo coaxial c. driver, 2.5" mm voice coil
  • DSP Processing
  • Onboard RDNet Control
  • Multifunctional cabinet
  • Very high output

RCF TT25-CXA Specifications:

  • Acoustic:
    • Frequency Response -3 dB: 50 Hz ÷ 20 KHz
    • Max SPL: 133 dB
    • Horizontal coverage angle: 60°
    • Vertical coverage angle: 60°
    • Compression Driver: 1.5 " neo, 2.5" voice coil
    • Woofer: 15" neo, 3.5" voice coil
  • Input/Output Section:
    • Input signal: Bal/unbal
    • Input connectors: XLR, RDNet onboard
    • Output connectors: XLR, RDNet onboard
    • Input sensitivity: -2 dBu / + 4 dBu
  • Processor Section:
    • Crossover frequencies: 900 Hz
    • Protections: Thermal, HF
    • Limiter: soft limiter, dynamic
    • Controls: proces., 8 sel. presets
  • Amplifier Specifications:
    • Total power: 1,100 W RMS
    • High frequencies: 300 W RMS
    • Low frequencies: 800 W RMS
    • Cooling: Convection
    • Connections: Powercon in/out
  • Cabinet:
    • Cabinet Material: Baltic birch
    • Handles: 1 top
    • Pole Mount/Cap: Yes
    • Color: Black
  • Physical Specifications:
    • Height: 353 / 13.89 mm/inch
    • Width: 580 / 22.83 mm/inch
    • Depth: 486 / 19.15 mm/inch
    • Net Weight: 18 / 39.6 kg/lbs.
