Product Overview
Big Source Four® attitude, yet small in size - ETC's 4M50LG-I-1 is a Source Four Mini™ that has everything you expect from the Source Four® brand - ease of use, superior optics, crystal-clear image projection and a bright, even field - but packaged in a tiny fixture that's just one-third the size of a traditional Source Four. A mere nine inches long, and available in both tungsten and LED, the Source Four Mini can go anywhere: museums, retail outlets, restaurants, light labs, children's theaters, and other small scale installations where size matters. This version is a Source Four Mini LED Gallery 50° fixture in a canopy mount design with an integral transformer that comes in white.
The Source Four Mini LED can go where no full-sized Source Four® has gone before. ETC’s 12W Source Four Mini LED features the same crisp optics, user-friendly functionality and sleek look of the legendary Source Four fixture, but in a compact format at a fraction of the size. Surprisingly bright for its size, the Mini LED offers crystal-clear image projection and a bright, even field.
Venues intended for the ETC 4M50LG-I-1:
- Museums
- Retail stores
- Restaurants
- Lobbies
- Light labs
- Theaters
ETC 4M50LG-I-1 Features:
- Rugged, die-cast fixture body
- Interchangeable lens tubes permit selection of 19°, 26°, 36° and 50° field angles
- Uniquely efficient optical system
- Long-life dimmable white LED source
- Three-plane shutters
- Multiple accessories available for color, pattern, and filtering
- Multiple mounting options: C-clamp, canopy and track
- Custom paint colors available
- 9" long, 2.5" diameter
- 12W LED (35,000-hour life)
- E-size pattern holder
- Gel media frame
- Rotating barrel ± 175°
- Three-plane stainless-steel shutter blade assembly
- Tool-free lamp replacement
- Insulated rear handle
- Rugged die-cast aluminum construction
- Black, white, silver or custom colors available
- 4.5 x 1.5" color-matched canopy
- Canopy-mounting hardware for 4" ceiling junction box included
- 12V transformer or LED driver in canopy for hardwired 120V or 230/240V input
ETC 4M50LG-I-1 Specifications:
- Physical:
- Die-cast aluminum construction (a380 grade)
- Fine-texture, high-temperature powder-coated paint
- Steel yoke with 0.406” diameter mounting hole
- Rotating shutter assembly ±175°
- E-size gobo pattern holder (included):
- 37.5mm with a 25.4mm image area
- Stainless steel, full hard shutters in a tri-plane assembly, 0.40mm (a301 grade)
- Fixed-beam angles to suit a range of throw distances
- Tool-free tilt and beam adjustment
- High-impact resistant, thermally insulated knobs and shutter handles
- Captive accessory slot for pattern holder (included)
- Dual captive accessory slots for media frame (included)
- Portable:
- Yoke-mounted leD driver in color-matched enclosure
- Miniature C-clamp mounting (included)- for use with 3/8” to 1” pipe (0.675” to 1.315” oD)
- Three-foot power cable with nema 5-15P connector
- Install canopy:
- Color-matched, powder-coated canopy mount with LED driver (included)
- Canopy dimensions: 5.31” (W) x 1.04” (H)
- Installation hardware included
- Fixture to canopy factory pre wired for easy install
- Built-in rotation stop to prevent cable damage
- Track mount:
- Compatible and ETL-listed for EUTRAC brand track
- EUTRAC (#98-549) two-circuit track adapter included
- LED factory-installed in color-matched adapter (black adapter for silver fixtures)
- Black or white power lead
- Electrical:
- Power at full intensity: 12W typical, 14W max
- 18 AWG input wire size
- Input voltage options:
- 90-135V, 50/60Hz
- 190-250V, 50/60Hz
- Dimmable (forward and reverse phase)
- Inrush (first half-cycle):
- 120V: 3A
- 240V: 4A
- Lamp:
- Cree LED (available in 80+ and 90+ CRI)
- Long-life lamp: 35,000 hours L70 lumen maintenance
- 3000K color temperature
- Optical:
- Fixed-beam options of 19°, 26°, 36° and 50° field angles
- Projector-quality, high-contrast lenses
- Beam edge continually adjustable hard to soft
- Thermal:
NOTE:

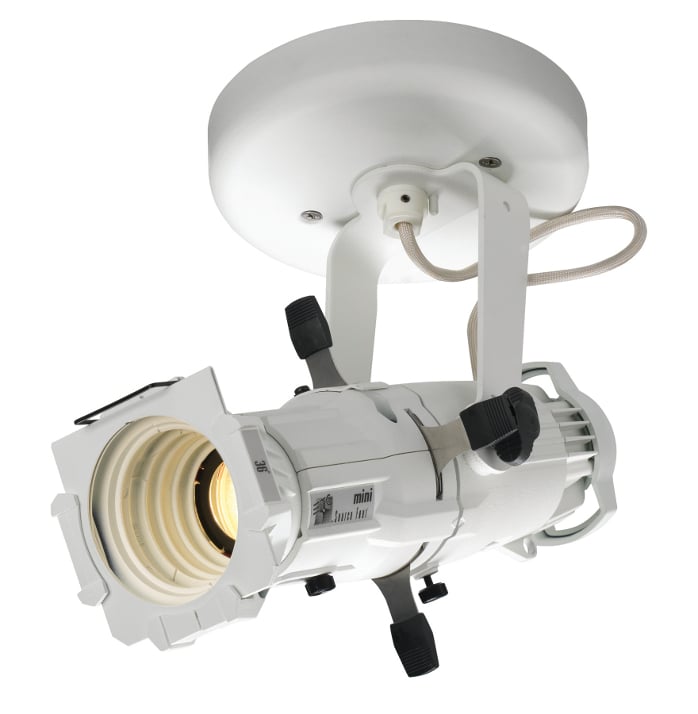

Product shown in image is for illustrative purposes only. Actual product has a 50° field lens .
