Product Overview

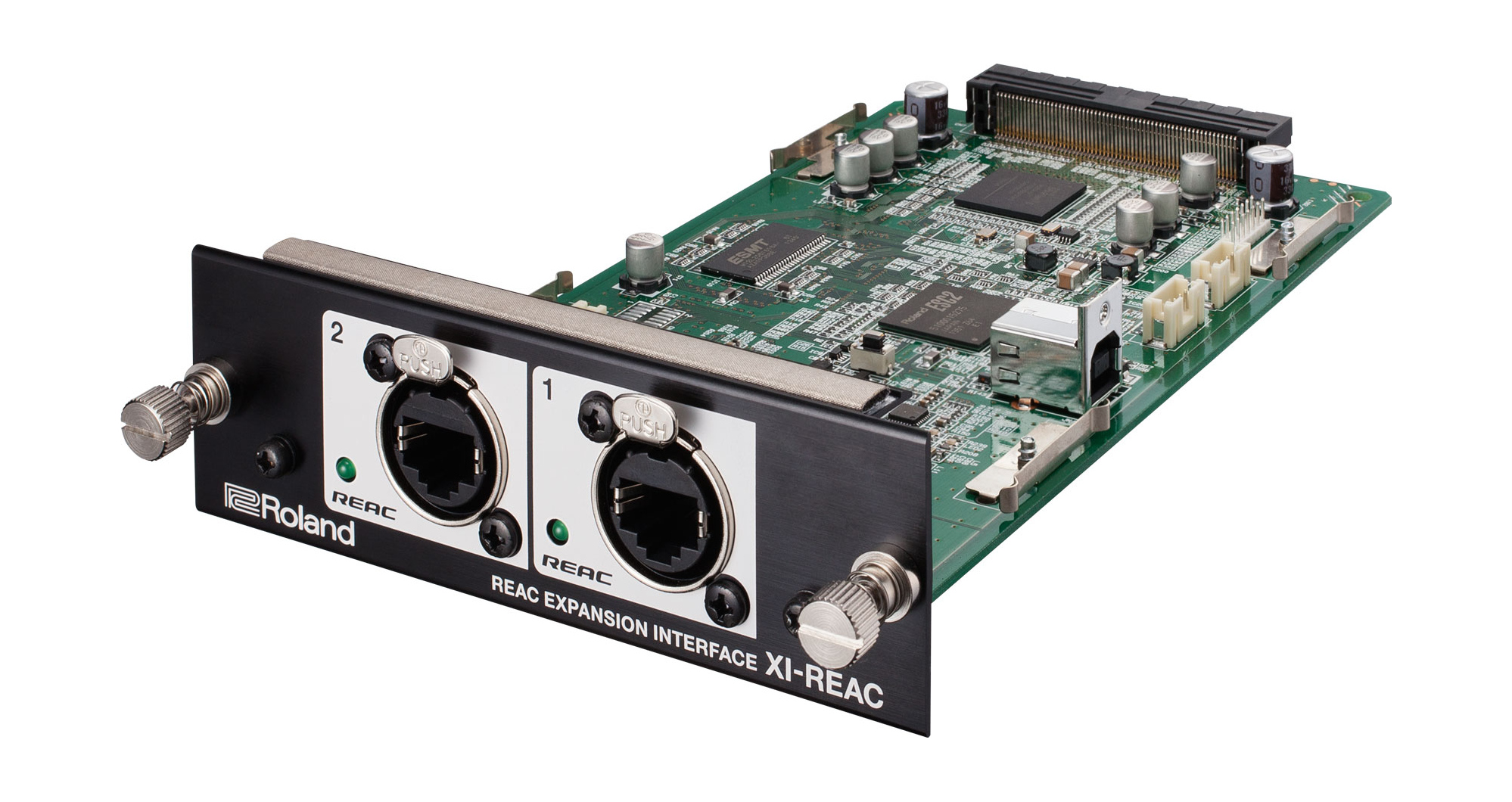

Roland's XI-REAC is a REAC expansion card that adds up to 2 REAC interfaces to their V-1200HD and M-5000 products (both sold separately).

Includes:

  • XI-REAC Expansion Card
  • Setup Guide
  • REAC cap x 2
  • REAC connector cover x 2
  • Ferrite core x 2

Features:

  • When used in the V-1200HD:
    • 16 inputs x 16 outputs at 48kHz
    • Only Port 1 available
    • REAC MODE is secondary only
  • When used in the M-5000:
    • 2 REAC ports
    • 40 inputs x 40 outputs per port

Specifications:

  • Channels:
    • 40 channels input x 2
    • 40 channels output x 2
    • * The number of available channels will be changed by the device that attach the XI-REAC.
  • Signal Processing: Sampling Frequency : 96kHz, 48kHz, 44.1kHz
  • Connectors:
    • REAC ports (1, 2): RJ-45 EtherCon type
    • USB COMPUTER port: USB type B (inside of the panel, updates only)
  • Indicator: REAC x 2
  • Power Consumption: 1.7W
  • Operating Temperature: +41°F to +104°F (+5°C to +40°C)
  • Dimensions (WxDxH): 4-3/4" x 7-5/16" x 1-5/8" (120 x 185 x 40mm)
  • Weight: 6oz (0.16kg)
