Landscape Wall Mount Touch Panel

OUR PART #:  MSD-431-L

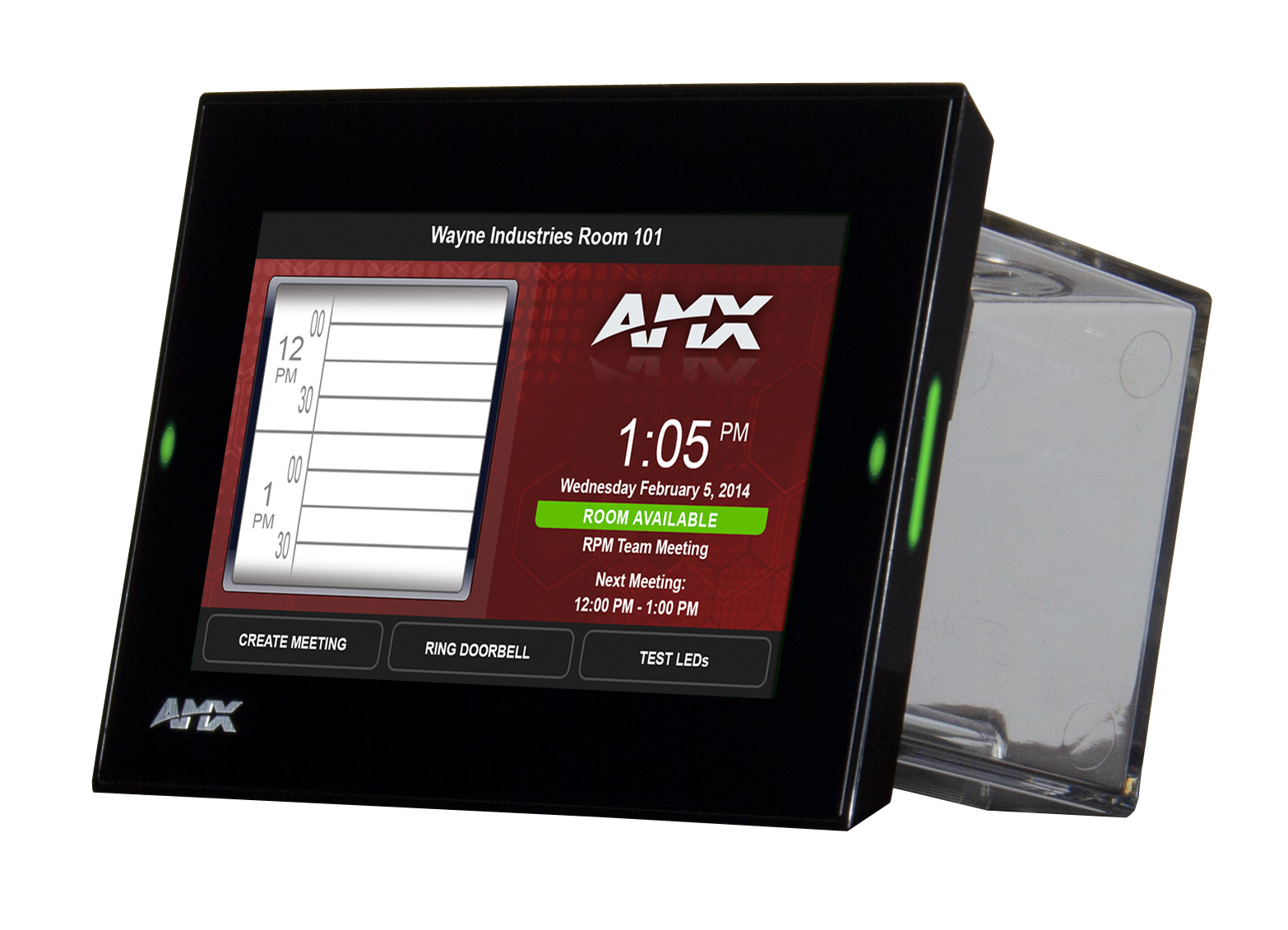

The MSD-431-L from AMX is a 4.3" Modero S Series Wall Mount Touch Panel that is a versatile, yet affordable control surface that is equally suited for scheduling or room control.
Learn More
AMX MSD-431-L - Front View
AMX MSD-431-L - Left Side View
AMX MSD-431-L - Rear View

Click a thumbnail to see more images. (5 total)

Our Price: $1,200.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The MSD-431-L from AMX is a 4.3" Modero S Series Wall Mount Touch Panel that is a versatile, yet affordable control surface that is equally suited for scheduling or room control. With a generous selection of mounting options, the MSD-431 can be placed on any flat surface (including glass) inside or outside a conference room or classroom, and the built-in room availability bar shows green or red depending on if the room is currently booked.

Applications for this unit include:

  • The MSD-431 allows even the most cost sensitive meeting spaces to benefit from a dedicated scheduling panel, allowing users to view the room schedule at a glance and even reserve the room right from the panel.
  • The MSD-431 is also ideal as a second touch panel that is mounted on the wall or in a podium or lectern in a large conference room or classroom.

AMX MSD-431-L Features:

  • Powerful Graphics – Powered by the G4 graphics engine, the Modero S Series features streaming video and brilliant 24-bit color depth
  • Elegant Room Availability Bar with 180° Visibility –Easily glance down the hall to see if meeting spaces are occupied
  • Mount to Any Smooth Surface Including Glass – Use the optional Multi Mount Kit and mount the Modero S wall touch panel to any smooth surface
  • Elegant & Responsive User Interface – Exclusive SmoothTouch™ display supports single touch gesturing and delivers responsive performance
  • Architectural Design Consistency – Install both Modero S and Modero X touch panels throughout a facility for consistent style on any budget

AMX MSD-431-L Specifications (partial):

  • Dimensions (HWD) Landscape: 3 3/8" x 5 1/16" x 2 5/8" (86 x 128 x 66 mm)
  • Weight:
    • 0.65 lbs (.295 Kg), with back box
    • 0.5 lbs (.225 Kg), without back box
  • External Power Supply Required:
    • Optimal performance requires use of one of the following AMX PoE power supplies (not included):
      • PS-POE-AF-TC, PoE Injector, 802.3AF Compliant (FG423-83)
      • NXA-ENET8-2POE, Gigabit PoE Ethernet Switch (FG2178-63)
  • Regulatory Compliance:
    • FCC Part 15 Class B
    • CE EN 55022
    • CE EN 55024
    • CE EN 60950-1
    • IEC 60950-1
    • IC CISPR 22 Class B
    • C-Tick CISPR 22 Class B
    • UL 60950-1
    • VCCI CISPR 22 Class B
    • RoHS
    • WEEE
  • Environmental:
    • Temperature (Operating): 32°F to 104°F (0°C to 40°C)
    • Temperature (Storage): 4°F to 140°F (-20°C to 60°C)
    • Humidity (Operating): 20% to 85% RH
    • Humidity (Storage): 5% to 85% RH
    • Power ("Heat") Dissipation:
      • On: 13.6 BTU/hr
      • Standby: 10.9 BTU/hr

Included Accessories: Installation Template 4.3" S Series (68-2265-02)

NOTE: For additional specifications and information, please refer to the data sheet in the above documentations tab.
