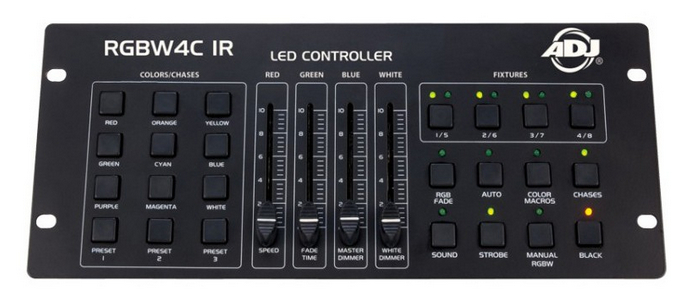

ADJ RGBW4C IR 32-Channel Controller for RGB, RGBW or RGBA LED Fixtures

The RGBW4C IR from ADJ is a 32-channel RGB, RGBW, or RGBA LED controller designed to control any standard 3- or 4-channel group of LED fixtures where channel 1 is Red, channel 2 is Green, channel 3 is Blue and channel 4 is White or Amber. Up to 8 LED fixtures or fixture groups can be independently controlled via 4 fixture buttons, with all LED fixtures or fixture groups required to be set to run in DMX mode, and must be addressed 4 channels apart for independent control. The unit's control panel includes 9 direct access "Static Color/Chase" buttons, which contain pre-programmed color presets and chase programs, 3 user-programmable color preset buttons, 4 multi-function faders that control RGBW intensities on the fly, as well as chase program "Speed", chase program "Fade Time" and "Master Dimmer". Additionally, there's an array of 8 buttons used to select the operation mode, including RGB Fade, Color Macro, Auto Run, Sound Active, Chase, Strobe, Manual RGBW, and Blackout modes. The RGBW4C IR is one of the simplest and most versatile LED controllers available. It's great for D.J.’s, lounges, bars, nightclubs, and anyone that wants easy control of LED pars, bars, floods or panels.

ADJ RGBW4C IR Features:

• Compact DMX512 controller for RGB, RGBW, and RGBA LED fixtures
• Control up to 8 individual fixtures or fixture groups
• 3 user programmable color preset, direct access buttons
• 9 Color preset/Chase program direct access buttons
• Color Macro playback mode
• Manual RGBW intensity control mode
• RGB and Auto modes
• On the fly Speed & Fade control of all chase programs
• Sound active mode via internal microphone
• Adjustable microphone sensitivity
• Variable strobe
• Blackout button
• ADJ LED RC2 Compatible (sold separately)

ADJ RGBW4C IR Specifications:

• DMX output connector: 3-pin XLR
• Power In: 12VDC 500mA UL approved power supply (included)
• Power consumption: 3.6 Watts
• Size: 12.87" x 5.51" x 1.89" (327 x 140 x 48mm)
• Weight: 2.43 lbs (1.1kg)
