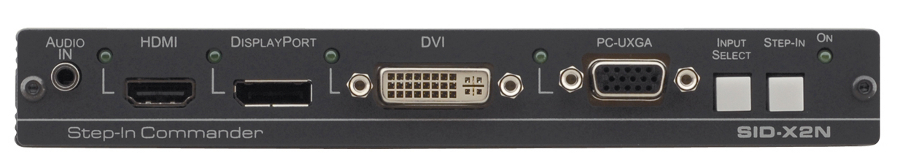

Kramer SID-X2N
4-Input Multi-Format Video over HDBaseT Transmitter with Step-In Commander

OUR PART #:  SID-X2N

The SID-X2N is Kramer’s HDBaseT™ four-in-one twisted pair transmitter that is a high-performance, cost-effective, step-in commander from their Digital Step-in Family.
Learn More
Our Price: $672.00
List Price: $840.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer SID-X2N
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The SID-X2N is Kramer’s HDBaseT™ four-in-one twisted pair transmitter that is a high-performance, cost-effective, step-in commander from their Digital Step-in Family. The unit includes four input types: computer graphics video, HDMI, DVI and DisplayPort. In addition, the SID-X2N includes an unbalanced stereo audio input and output. The local ‘Step-in’ switching button allows the user to take control of the main display through the main switcher.

The SID-X2N works as a stand-alone unit, together with the HDBaseT™ receivers, such as the TP-580RXR/WP-580RXR, using RS-232 commands over a twisted pair cable. Kramer recommends the use of the Kramer BC-DGKat623 or the BC-DGKat7a23 DGKat cable, to reach up to to 426ft (130m) in normal mode, and up to 590ft (180m) in Ultra (Long Reach) mode (1080p @60Hz @24bpp).

The SID-X2N twisted pair transmitter is an ideal choice when designing your state-of-the-art boardroom or presentation room.

Kramer SID-X2N Features:

  • Max. Data Rate - 6.75Gbps (up to 1080p @60Hz 36bpp) innormal mode; up to 4.95Gbps (up to 1080p @60Hz 24bpp) in ultra mode.
  • HDTV Compatible.
  • HDCP Compliant - Works with sources that support HDCP repeater mode.
  • HDMI Support - Deep Color, x.v.Color™ and 3D.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ -Intelligent EDID handling & processing algorithm ensures Plug and Playoperation for HDMI systems.
  • Data Equalization and Reclocking.
  • Input Signal Detection - Based on video clock presence.
  • Automatic Input Selection - Based on manual selection or last connected input.
  • Automatic Analog Audio Detection and Embedding.
  • Local Balanced Audio De-Embedding.
  • Support for Digital Audio Formats.
  • Lockable EDID.
  • System Range - Up to 130m (430ft) normal mode; up to180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC-HDKat6a cables.
  • Local Step-In Switching - Button & contact closure.
  • Power Supply - Requires independent power supply.
  • Size - Compact MegaTOOLS® - 2 units can be rack mounted side-by-side in a1U rack space with the optional RK-T2B rack adapter.

Kramer SID-X2N Specifications:

  • Inputs: 1 HDMI on an HDMI connector, 1 DP on a DisplayPort connector, 1 DVI-D on a DVI-I connector, 1 VGA on a 15-pin HD (F)connector, 1 unbalanced stereo audio on a 3.5mm mini jack.
  • Outputs: 1 HDBaseT TP on an RJ-45, 1 unbalanced stereo audio in a 3.5mm mini jack.
  • Ports: 1 RS-232 3-pin terminal block for programming.
  • Controls: Front panel buttons, remote step-in switch, remote input selection switches, RS-232.
  • Analog Audio Input: Maximum level - 3Vpp.
  • Remote LED Impedance: 5V, 300 ohm approx.
  • Standards: HDMI with x.v.Color™ and 3D; HDCP: works with sources that support HDCP repeater mode.
  • Maximum Data Rate: 4.95Gbps (1.65Gb per graphics channel).
  • Maximum Transmission Distance: 180m (590ft) up to1080p @60Hz @24bpp in extended mode; 130m (430ft) up to 1080p @60 @36bpp innormal mode.
  • Power Consumption: 12V DC, 950mA.
  • Compliance Standards: CE, UL.
  • Operating Temperature: 32° to 104°F (0° to +40°C).
  • Storage Temperature: –40° to 158°F (–40° to +70°C).
  • Humidity: 10% to 90%, RHL non-condensing.
  • Cooling: Convection, vents.
  • Enclosure Type: Aluminium.
  • Dimensions (WxDxH): 7.4” x 4.5” x 1” (18.8cm x 11.3cm x 2.5cm) rack-mountable.
  • Weight: 1.1lbs (0.48kg) approx.
  • Included Accessories: Power adapter.
  • Options: RK-T2B 19“ rack adapter, RTBUS-12, RTBUS-22, SID-X1NBP Kit (substitute black top plate for the SID-X2N to blend in with the color of the modular TBUS-10xl).
