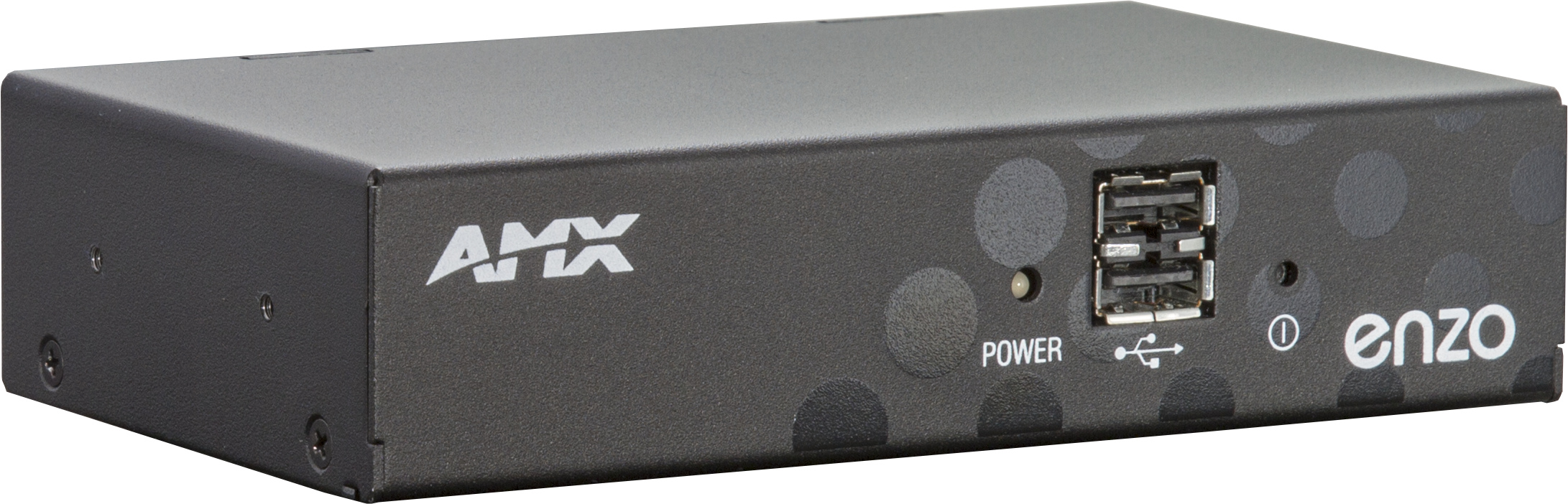

AMX NMX-MM-1000
Enzo Wireless Meeting Room Device

OUR PART #:  FG3211-01

The NMX-MM-1000, Enzo® from AMX is a content sharing platform designed specifically for meeting rooms, classrooms...
Learn More
Our Price: $1,330.56
List Price: $1,995.00
You save 33%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AMX NMX-MM-1000
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The NMX-MM-1000, Enzo® from AMX is a content sharing platform designed specifically for meeting rooms, classrooms, and other collaboration environments to  provide instant access to a wide array of content.

Common Applications
Ideal for use in a huddle room to deliver cost-effective presentation and collaboration functionality for smaller spaces. Use it in conference rooms to allow guest presenters to share documents, photos, and access internet content stored on their device or in the cloud. In classrooms, it also enables the sharing of content from a laptop or mobile device among students and teachers.

AMX NMX-MM-1000, Enzo Includes:

  • (1) NMX-MM-1000, Enzo Unit
  • (2) AVB-VSTYLE-SURFACE-MNT, V Style Single Module Surface Mount Brackets, 760896

AMX NMX-MM-1000, Enzo Features:

  • Laptop Screen Mirroring using MirrorOp* – Present content from your Windows or Mac OSX laptop without an AV cable; (contact your Sales Pro for details on MirrorOpp Senders app
  • Content Sharing from Smartphones and Tablets using MirrorOp* – Share local content from your mobile device using Enzo connected to a screen
  • Moderator Mode with Quad View using MirrorOp* – Moderator controls what content is going on the screen, with the ability to select up to 4 devices for display at once
  • "Instant-On" File and Web Browsing – Access content or USB thumb drive files within seconds of entering the room
  • IT Friendly – Avoids OS updates, viruses and other PC-related maintenance hassles and costs
  • End of session data purge – Prevents unintended disclosure of confidential information
  • Native NetLinx Device – Control Enzo using a touch panel and NetLinx Controller
  • PoE, Pass-Through Ethernet and Small Form Factor – Easy to Install
  • Streaming Video Playback – Watch video content such as television or live presentations streamed from an AMX H.264 Encoder over a private network
  • Supported by RPM – Enables one-click launch of a custom Enzo session

*MirrorOp is the industry leading technology for wireless mobile content sharing

AMX NMX-MM-1000, Enzo Specifications:

  • Manufacturer part #: FG3211-01
  • Physical:
    • Dimensions (HWD): 1-3/8" H x 5-13/16" W x 3-1/4" D (34.80 x 147.32 x 83.41mm)
    • Weight: 1.1 lb (.5 Kg)
  • Mounting Options:
    • Surface Mount: AVB-VSTYLE-SURFACE-MNT, V Style Single Module Surface Mount Brackets, quantity 2 of 760896, included
    • Rack Mount Adapter: NMX-MM-RKA, Enzo Rack Mount Adapter (FG3211-60), sold separately, This rack mount adapter is designed for use with V Style Rack Mounting Tray (FG1010-720/721) and V Style Rack Mounting Shelf (FG3201-60), both also sold separately.
  • Active Power Requirements:
    • Power Consumption: 13 W, (Max)
    • Power over Ethernet: PoE, 802.3AF
    • Power Indicator: (1) LED (red/green), solid red at start of boot, blinking green during boot, solid green after boot is complete
  • Power Supply:
    • External, Required: NMX-MM-1000 requires the use of a 802.3AF Compliant Power over Ethernet (PoE) Injector or PoE capable Ethernet Switch, not included
    • Enzo is compatible with PS-POE-AF-TC (FG423-83)
  • Environmental:
    • Temperature (Operating): 0° C to 40° C (32° F to 104° F)
    • Temperature (Storage): -20° C to 70° C (-4° F to 158° F)
    • Humidity (Operating): 5% to 85%, non-condensing
  • Control:
    • NetLinx:
      • Master Code: URL, Auto, Listen
      • ICSP Security: Yes
    • RS-232:
      • DB-9 Male
      • Supported Baud Rates 150 to 115,200
      • Used to control display
    • Operation Button:
      • Quick press: Sleep
      • Press-and-hold: System Settings
  • Functional Capabilities:
    • Management Interface: On-screen configuration
    • NetLinx On-Screen Keypad:
      • Number of buttons, 12
      • Number of text rows, 3
        Note: Control can be disabled
    • Supported Documents Office: .doc, .docx, .xls, .xlsx, .ppt, .pptx, .pdf
    • Supported Document Sources:
      • Dropbox
      • USB Drive (only one can be connected to Enzo at a time)
      • Web Browser
        Note: Document sources can be disabled
    • Supported Document Sharing:
      • Email (all sources)
      • Dropbox (Dropbox documents only)
        Note: Email document sharing can be disabled
    • Supported Images: .png, .jpg, .bmp, .gif
    • Supported Videos: .mp4 with H.264 video and AAC audio
    • Email:
      • SMTP with SSL or TLS encryption
        Note: Email can be disabled
    • Maximum Number of Web Applications Supported: TBA
    • Supported Web Browser:
      • Chromium-based web browser that supports HTML5. Plug-ins, including Flash, are not supported.
        Note: Web browsing can be disabled
    • Wallpaper:
      • Supported Formats: .png
      • Resolutions: any, 1920 x 1080 preferred
      • Customizable: Can select a single wallpaper applied to all screens EXCEPT for start session screen
    • Included Applications: Browser, MirrorOp, Receiver
    • Maximum Number of Application Favorites on Home Screen: 4
    • Screen Mirroring
      • Technology: MirrorOp
      • Maximum Number of Connected Senders: 32
      • Number of Senders on Screen Simultaneously: 1 (Note: Some MirrorOp Senders allow up to four Senders to be shown simultaneously)
      • Supported Sender Clients: Windows 7 & 8, Mac OS X, Apple iOS, Android
      • Frame Rate (Windows and Mac OS X): TBA
  • Streaming Video:
    • Video Codec: H.264 (up to 1080p30)
    • Audio Codec: AAC
    • Container: MPEG-2 Transport Stream
  • Memory:
    • RAM: 2 GB
    • Flash: 16 GB, (12 GB user accessible)
  • HDMI:
    • Output Connection: (1) HDMI Type A Female
    • Output Signal Type Support: HDMI
    • Output Resolution: 720p, 1080p
  • Analog Audio:
    • Output Connection: (1) 3.5 mm stereo audio jack
    • Output Level (Max): 1 Vp-p into 10 kOhms
    • Output Impedance: 200 Ohms
  • Ethernet:
    • Connection: (2) RJ-45, Auto MDI/MDI-X
    • Description: 10/100 BASE-T
    • Link/Act Indicator: (1) LED (green), on for link, blink off for activity
    • Speed Indicator: (1) LED (yellow), on for 100 BASE-T, off for 10 BASE-T
      Note: Integrated 2 port Ethernet switch allows a connection to PoE (power and network), along with an auxiliary connection for another device to the network drop in the room
  • USB:
    • Connection:
      • (4) USB 2.0 Type A
      • Connect USB drive to display documents
      • Connect keyboard and mouse
    • +5 V Current Output (Max): 4 W total across all USB connections
    • Wireless Keyboard & Mouse:
      • Supports 2.4 GHz RF wireless keyboard and mouse using wireless dongle (sold separately)
        Note: Does not support Bluetooth keyboard and mouse
  • General:
    • Mounting Options:
      • Surface Mount: AVB-VSTYLE-SURFACE-MNT, V Style Single Module Surface Mount Brackets, quantity 2 of 760896, included
      • Rack Mount Adapter: NMX-MM-RKA, Enzo Rack Mount Adapter (FG3211-60), sold separately
      • The rack mount adapter is designed for use with V Style Rack Mounting Tray (FG1010-720/721) and V Style Rack Mounting Shelf (FG3201-60), all sold separately
  • Regulatory Compliance:
    • FCC
    • IC
    • CE EN 55022 Class A
    • CE EN 55022 Class B
    • CE EN 55024
    • CE EN 60950-1
    • IEC 60950-1
    • C-Tick
    • UL 60950-1
    • VCCI
    • RoHS
    • WEEE

Note: All information and specifications are subject to change without notice.
