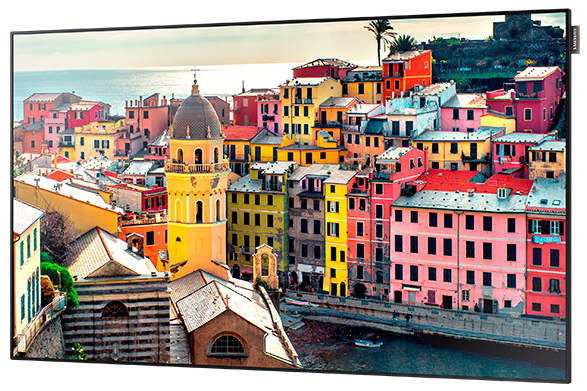

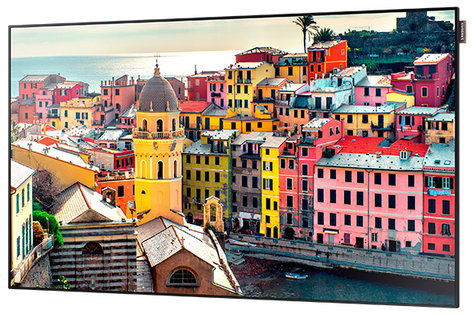

Samsung UE46D
46" 1920x1080 LED Digital Signage Display


Our Price: $2,487.44
List Price: $3,229.00
You save 23%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

A stylishly thin chassis with a slim 11mm bezel to bezel (BtB) spec combined with an upgraded Samsung SMART Signage Platform marks the Samsung UE46D digital signage display. Beautiful video walls in full HD can be created with no PC, DVD, or SBB required. Built-in WiFi allows for easy mobile control and increased Daisy Chain capability, while compatibility with our predecessor UE46C model provides versatile options.

Samsung UE46D Includes:

  • Quick Setup Guide
  • Warranty Card
  • Application CD
  • DP cable
  • Power Cord
  • Remote Controller, Batteries

Samsung UE46D Features:

  • Edge-Lit LED Display - The edge-lit 46" display of the UE46D features full HD resolution to deliver sharp, detail-rich images and crisp type. The narrow bezels, at 11mm BtB, elegantly complement the visuals thanks to minimal distraction.
  • Enhanced SSP with Quad Core Processor - Experience 2x SoC performance thanks to SSP with a quad core processor. SSP is an integrated, open platform providing a powerful streamlined solution to reduce TCO in digital signage deployments through savings in hardware installation and operating costs.
  • Ultra-Slim 1.2" Chassis - A stylishly thin chassis helps to create sophisticated videowalls that can inspire your audience. The ultra-slim design also helps to simplify installation while meeting ADA compliance requirements.
  • PC-Less Videowalls - Create beautiful video walls with no PC, DVD or SBB. Use only USB with Display Port 1.2 Loop In/Out. Users can benefit from the simplified process and less equipment requirements for videowall installation and content playing.
  • Built-In Wi-Fi - Experience easy mobile control and increased Daisy Chain capability thanks to built-in Wi-Fi. Use AllShare® Cast (sold separately) over a Wi-Fi connection for simple content mirroring from a tablet or mobile phone to your display.
  • UE46C Compatibility - The UE46D features a new design that is compatible with our predecessor UE46C model to provide businesses with versatile options for videowall creation. Enjoy bezel, depth and VESA compatibility.

Samsung UE46D Specifications:

Series Name

  • Series Name: UE46D


  • Screen Size: 46"
  • Panel Technology: 240Hz E-LED BLU
  • Resolution: 1920 x 1080 Full HD
  • Brightness: 450 nits
  • Contrast Ratio (Typical): 4000:1
  • Viewing Angle (H/V): 178°/178°
  • Response Time: 8ms


  • Input: VGA (D-sub 15 pin), DVI-D, Display Port 1.2, HDMI, Component/Composite, Stereo mini Jack
  • Output: Display Port 1.2 (Loop-out), Stereo mini Jack
  • External Control: RS232C (In/Out) thru stereo jack, RJ45


  • Power Supply: AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
  • Power Consumption (Typical/Max): 115W / 132W
  • Power Consumption (Standby): < 0.5W

Environmental Conditions

  • Operating Temperature: 0°C~ 40°C
  • Operating Humidity: 10~80%


  • Special:
    • WiFi Module Embedded, SD Card Slot, Super Clear Coating, Temperature Sensor, Pivot Display, Clock Battery (80hrs Clock Keeping), Built in Speaker (10W x 2ch), Magic Clone (to USB), Auto Source Switching & Recovery, Lamp Error Detection, RS232C/RJ45 MDC, Plug and Play (DDC2B), PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain (Supporting 2x2 UHD Resolution, HDCP Support), Smart Scheduling, Smart F/W update, Built-In MagicInfo Player S2, Video Wall (15X15), Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, PC-less Touch
  • SMART Signage Platform: Yes
  • Media Player Type: Cortex-A9 1Ghz Dual Core, 1GB DDR3, 8GB FDM, USB 2.0
  • VESA Standard Wall-Mount Interface: 400 x 400mm
  • Wi-Fi: Yes
  • Video Wall/Thin Bezel: Yes
  • Built-in Speakers: Yes


  • Stand: 40.6" W x 1.2" H x 23" D
  • Packaging: 43.7" W x 5.1" H x 26.3" D
  • Bezel Width: 5.5mm


  • Product Weight: 22 lbs
  • Package Weight: 28 lbs


  • Standard Warranty: 3 Years On-Site (Parts / Labor / Backlight )

Optional Accessories (sold separately):

  • Wall Mount Kit: WMN4270SD, WMN250MD, WMN4675MD (for Video wall W/M)
  • Stand: STN-L4055AD, STN-L4655E
  • Media Player: Embedded, SBB-C (Attachable)

Green Management

  • ENERGY STAR® Certified: Yes
  • RoHS Compliant: Yes
  • Emission Standard: EMC
  • Packaging Recyclability: Packing Materials Recyclable
