Clear-Com S-Mount Wall/Desk Mount

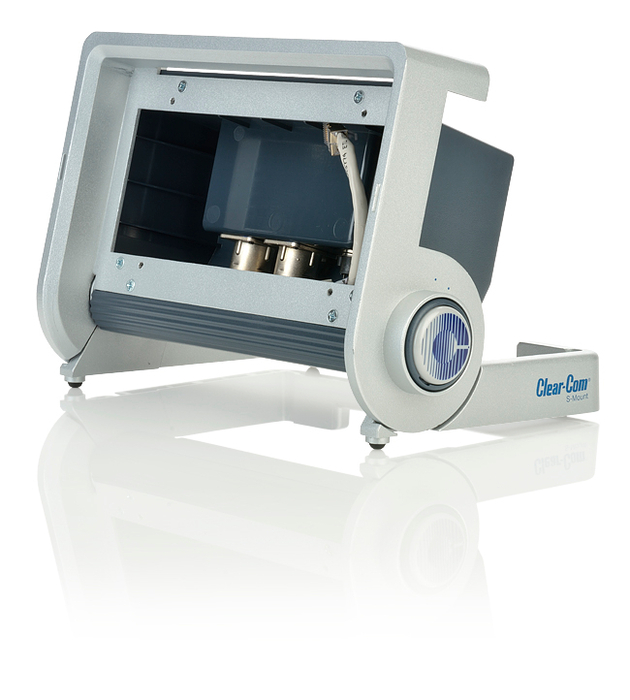

The S-Mount from Clear-Com is a desktop or wall mounting kit for the HelixNet HKB-2X Speaker Station. The S-Mount is easily adjustable to different angles to suit user’s requirements, comes with anti-slip feet and offers screw-holes for easy wall mounting. The rear plate has an XLR-3M/F loop-thru and one RJ-45 LAN connector for connecting to the intercom. Raised sides protect the knobs of the HKB-2X speaker station from impact, while mounted speaker stations can be carried face-to-face if needed due to keyed lugs for easy stacking.

NOTE: Use Clear-Com's Digital Partyline Calculator to calculate the maximum acceptable cable length for a Digital Partyline System.

Features

• For use with HelixNet HKB-2X Speaker Stations
• Connects to HelixNet Main Stations over a single shielded twisted-pair cable
• Powered by Powerline, third party Power-over-Ethernet (PoE) or AC/DC universal power adapter

Specifications

• Connectors:
  • Intercom Line: (1) 3-pin XLR-M, (1) 3-pin XLR-F
  • DC Power: 3-pin to AC adapter (provided)
  • DC Power: 3-pin to AC adapter (provided)
  • Ethernet/PoE: RJ-45
  • PSU: 3-pin
• Main Power:
  • Via AC Adapter: AC Adapter Power
  • Connector: IEC60320-1-C14
  • Via Power over Ethernet (PoE): Connector: RJ-45
• Environmental:
  • Temperature Range: 32º to +104ºF (0º to +40ºC)
  • 0 - 90% relative humidity
• Dimensions:
  • Minimum (Closed)(WxHxD): 10.4" x 3.9" x 6.7" (265mm x 99mm x 170mm)
  • Maximum (Fully Open)(WxHxD): 10.4" x 6.9" x 6.7" (265mm x 175mm x 170mm)
  • Weight: 2.8 lbs. (1.2 kg)
