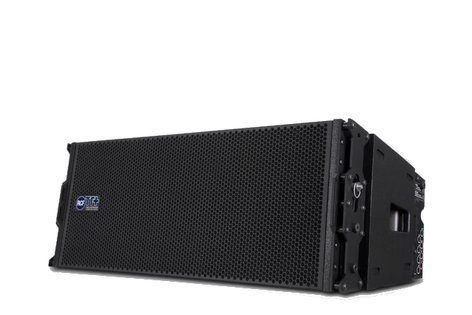

RCF TTL33-WP
Weatherproof Passive Line Array Module

OUR PART #  TTL33-WP

Our Price: $4,669.00
List Price: $7,129.00
You save 35%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

RCF’s TTL33 WP is a wide dispersion, weatherproof, 3-way passive line array module that offers incredibly high output and dynamics, extreme accuracy and high frequency extension – plus its compact size makes it the ideal tool for weatherproof outdoor sound reinforcement and corporate A/V presentation, including fixed installations in theatres, concert halls or auditoriums.

The TTL33 WP module includes the LICC-Low Impedance Compensated Crossover that features high-power aluminum case resistors and markedly lower induction values in series with the woofer. The benefit is delay reduction, reduced phase shift and better transient response.
Connections to the amplifier are made through a watertight multi-pole connector, and the grille is in custom-perforated aluminum with open-cell fibers and water repellent woven fabric backing. The cabinet is constructed of multi-ply baltic birch plywood and finished in a textured and resistant polyurea black paint.

RCF TTL33 WP Features:

  • Compact size
  • Maximum output per size available on the market
  • Wide, constant directivity, horizontal coverage angle
  • 6 high power neodymium transducers
  • Minimum weight
  • Watertight multi-pole connector IP67
  • LICC (Low Impedance Compensated Crossover Network)
  • Baltic birch cabinet

RCF TTL33 WP Specifications:

  • Acoustical Specifications:
    • Frequency Response -10 dB: 55 Hz - 20 kHz
    • Max SPL @ 1m: 133 dB
    • Horizontal coverage angle: 100°
    • Vertical coverage angle: 15°
    • System Sensitivity: 100 dB
    • Nominal Impedance: 8 Ohms
    • Power Handling: LF 600 - MID/HF 400 W
    • Peak Power Handling: LF 2400 - MID/HF 1600 W
    • Recommended Amplifier: LF 1200 - MID/HF 800 W
    • Protections: Active mosfet compression driver protection
    • Crossover frequencies: 500 Hz
  • Transducers:
    • Compression Driver: 3 x 1.0" HF driver, 1.4" voice coil
    • Nominal Impedance: 8 Ohms
    • Input Power Rating: total 75 W AES
    • Sensitivity: 109 dB
    • Midrange: 8" woofer, 2.5" voice coil
    • Nominal Impedance: 8 Ohms
    • Input Power Rating: 250 W AES
    • Sensitivity: 98 dB
    • Woofer: 2 x 8" woofer, 2.5" voice coil
    • Nominal Impedance: 8 Ohms
    • Input Power Rating: total 600 W AES
    • Sensitivity: 95 dB
  • Input Section:
    • Input connector: Amphenol eco/mat
    • Output connector: Amphenol eco/mat
  • Cabinet:
    • Cabinet Material: Baltic birch
    • Hardware: Array side fittings
    • Handles: 2 side
    • Grille: Custom perfored stel grill with open cell poly fiber and waterproof cloth backing
    • Color: Black
  • Physical Specifications:
    • Height: 300 / 11.8 mm/inch
    • Width: 760 / 30 mm/inch
    • Depth: 450 / 18.2 mm/inch
    • Net Weight: 29.2 / 64.2 kg/lbs.
