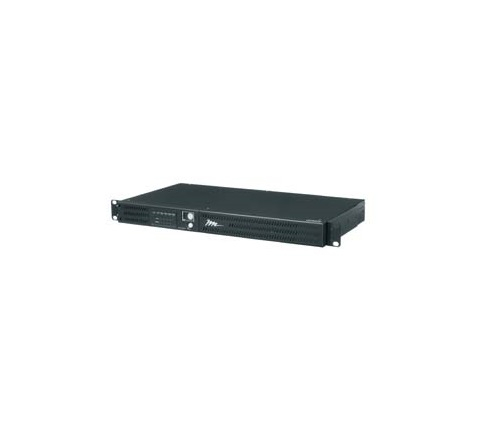

Middle Atlantic UPS-S500R 500VA Standard UpS

As part of Middle Atlantic’s Select Series UPS models, the UPS-S500R’s compact form factors in when space is at a premium, and in a wide range of capacities to support a wide range of installations. Like the rest of the Select Series, this unit is available with web-enabled IP control. This 1RU backup power has a bank control of outlets for simple system reboot, 8ms transfer time, automatic voltage regulation and a simulated sine wave output waveform. It also has non-critical load shedding, surge protection, and EMI filtering, along with LED status indicators and a battery pack that’s easily replaced via the front panel.

Middle Atlantic UPS-S500R Features:

• Bank control of outlets for simple system reboot
• Simulated sine wave output waveform
• 8ms transfer time
• Automatic Voltage Regulation
• Non-critical load shedding
• Surge protection and EMI filtering
• LED status indicators
• Battery pack easily replaced via front panel

Middle Atlantic UPS-S500R Specifications:

• General:
  • Cable Type: Corded
  • Cord Length: 10'
  • Finish Type: Black
  • Surge Protected: Basic
  • Assembly/Installation Information:
  • Mounting Points: 2
  • Listing Agencies/Third Party Information:
  • RoHS: Yes
  • Greenguard: Yes
• Dimensions:
  • Mounting Depth Max: 32
  • Mounting Depth Min: 19
  • Depth: 9.06"
  • Height: 1.73"
  • Width: 19"
  • Primary Package Weight (US): 18
  • Rack Units: 1
• Technical:
  • Material: Steel
  • Mounting: Horizontal
  • Number of Outlets: 6
