Atlas Sound DT22
2' x 2' Drop Tile 8" Speaker System, White


Atlas Sound’s DT22 is an installer-friendly, 2’ x 2’...
Learn More
Our Price: $77.99
List Price: $97.99
You save 20%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Atlas Sound DT22
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Atlas Sound’s DT22 is an installer-friendly, 2’ x 2’, drop tile 8” speaker system that provides clear paging and background music in an affordable package to any environment where large quantities of loudspeakers are needed , such as shopping malls and department stores.

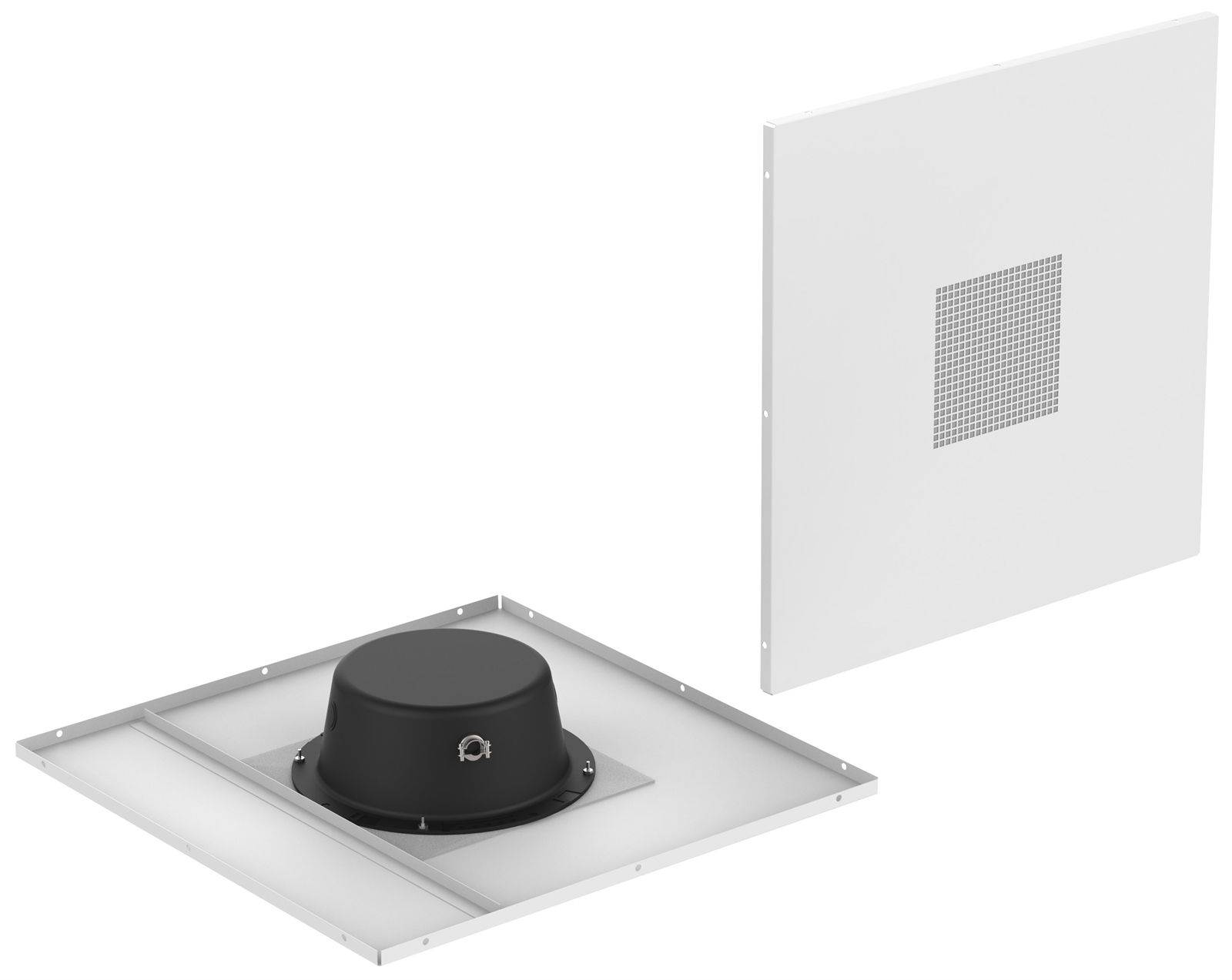

The preassembled unit (DT22) simplifies loudspeaker installation by providing an all-in-one speaker package in acoustic ceiling grids. The system includes the speaker / transformer, enclosure, and grille. Enjoy clear, crisp paging and background music from the DT22 without compromising building cosmetics.

Atlas Sound DT22 Features:

  • All In One, Pre-Assembled Unit Drops Into Ceiling Grids to Reduce Installation Time and Costs
  • Solid White Panel with Punched Speaker Grille Blends in with Most Acoustic Ceiling Tiles
  • Standard 8" Speaker with Built-In 25V / 70.7V Transformer
  • UL1480 / UL2043

Atlas Sound DT22 Specifications:

  • Speaker: 8" Dual Cone
  • Frequency Response: 100Hz - 5kHz
  • 70.7V Power Taps: .25, .5, 1, 2, & 4 Watts
  • Dispersion: 105°– 2kHz Octave Band (-6dB)
  • Sensitivity: 96 dB
  • Magnet Weight: 10 oz (283g)
  • Length: 23.9" (607mm)
  • Depth: 4.53" (115mm)
  • Weight: 11.3 lbs. (5.125kg)
  • Color: White
