ETC Source Four Mini LED 36 Degree 12W LED Mini Ellipsoidal with 36 Degree Lens, Portable, White

OUR PART #: 4M36L-1 MFR #: 7063A1042-1

Copied to clipboard

From the ETC® Source Four Mini LED™ lineup comes the 4M36L-1, a 36° Source Four Mini LED fixture that comes in white. ...Read more

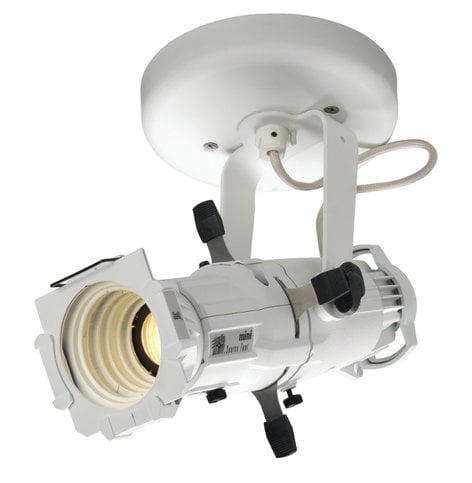

ETC Source Four Mini LED 36 Degree 12W LED Mini Ellipsoidal With 36 Degree Lens, Portable, White Image 1
ETC Source Four Mini LED 36 Degree 12W LED Mini Ellipsoidal With 36 Degree Lens, Portable, White Image 2
ETC Source Four Mini LED 36 Degree 12W LED Mini Ellipsoidal With 36 Degree Lens, Portable, White
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

From the ETC® Source Four Mini LED™ lineup comes the 4M36L-1, a 36° Source Four Mini LED fixture that comes in white. The Source Four Mini LED can go where no full-sized Source Four® has gone before. ETC’s 12W Source Four Mini LED features the same crisp optics, user-friendly functionality and sleek look of the legendary Source Four fixture, but in a compact format at a fraction of the size.

The Source Four Mini LED has four field-angle choices and comes in a portable version with a miniature C-clamp and a canopy-mount or track-mount design. Surprisingly bright for its size, the Mini LED offers crystal-clear image projection and a bright, even field.

Suggested venues that this LED fixture is intended for:

  • Museums
  • Retail stores
  • Restaurants
  • Lobbies
  • Light labs
  • Theaters

ETC 4M36L-1 Features:

  • Rugged, die-cast fixture body
  • Interchangeable lens tubes permit selection of 19°,26°, 36° and 50° field angles
  • Uniquely efficient optical system
  • Long-life dimmable white LED source in two CRI values:
    • Source Four Mini LED: 80+ CRI
    • Source Four Mini LED Gallery: 90+ CRI
  • Three-plane shutters
  • Multiple accessories available for color, pattern, and filtering
  • Multiple mounting options: C-clamp, canopy and track
  • Custom paint colors available; contact your sales professional

ETC 4M36L-1 Specifications:

  • Physical:
    • Die-cast aluminum construction (A380 grade)
    • Fine-texture, high-temperature powder-coated paint
    • Steel yoke with 0.406” diameter mounting hole
    • Rotating shutter assembly ±175°
    • E-size gobo pattern holder (included) -37.5mm with a 25.4mm image area
    • Stainless steel, full hard shutters in a tri-plane assembly, 0.40mm (A301 grade)
    • Fixed-beam angles to suit a range of throw distances
    • Tool-free tilt and beam adjustment
    • High-impact resistant, thermally insulated knobs and shutter handles
    • Captive accessory slot for pattern holder (included)
    • Dual captive accessory slots for media frame (included)
  • Portable:
    • Yoke-mounted LED driver in color-matched enclosure (black adapter for silver fixtures)
    • Miniature C-clamp mounting (included)- for use with 3/8” to 1” pipe (0.675” to 1.315” OD)
    • 6ft 6” power cable with NEMA 5-15P connector Black or white power lead
  • IP20 for Portable and Canopy versions
  • IP40 for Track version
  • Electrical:
    • Power at full intensity: 12W typical, 14W max
    • 18 AWG input wire size
    • Input voltage options:
    • 90-135V, 50/60Hz
    • 190-250V, 50/60Hz
    • Dimmable (forward and reverse phase)
    • Inrush (first half-cycle)
    • 120V:
    • 240V:
  • Lamp:
    • Cree LED (Available in 80+ and 90+ CRI)
    • Long-life lamp: 35,000 hours L70 lumen maintenance
    • 3000K color temperature
  • Optical:
    • Fixed-beam options of 19°, 26°, 36° and 50° field angles
    • Projector-quality, high-contrast lenses
    • Beam edge continually adjustable hard to soft
  • Thermal: 0°C to +40°C (32°F to 104°F)
  • Physical:
    • Source Four Mini LED Weights:
    • Weight - Shipping Weight:
    • Portable: 2.7 lbs / 1.2kg - 3.8 lbs / 1.7kg

Note:

Some gear shown above NOT INCLUDED with purchase of this model. Actual product is the fixture only - mounting hardware not included in purchase.
