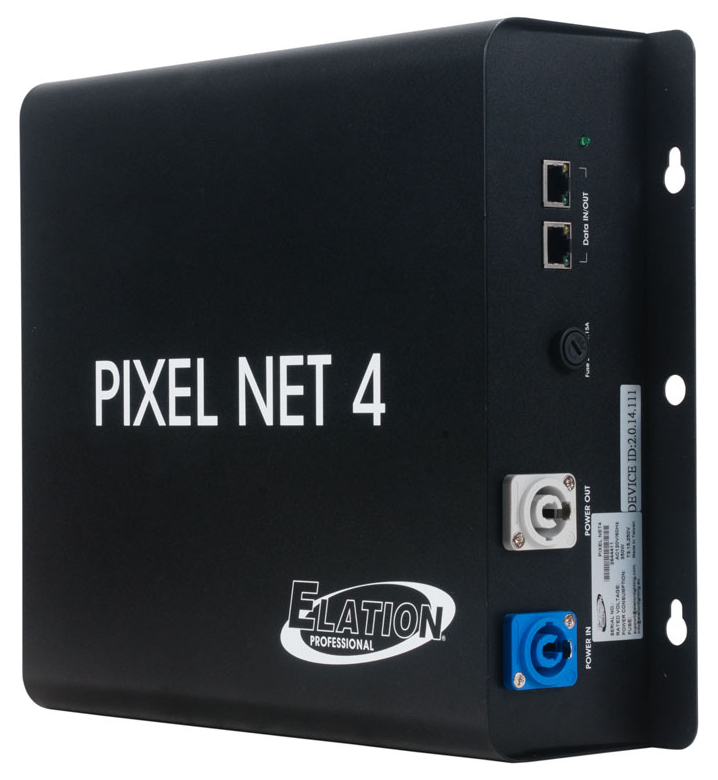

Elation Pro Lighting PIXEL NET 4
Artnet to DMX Driver

OUR PART #:  PIXEL-NET-4

Elation Professional's Pixel Net 4™ is an ArtNet to DMX driver and is compatible with all of Elation's Pixel Bar™ products.
Learn More
Our Price: $456.00
List Price: $570.00
You save 20%!
Write the first review.
Elation Pro Lighting PIXEL NET 4
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Elation Professional's Pixel Net 4™ is an ArtNet to DMX driver and is compatible with all of Elation's Pixel Bar™ products. This model includes ArtNet CAT5 input/output and supports up to (4) DMX universes, (4) RJ45 CAT5e outputs, handles 350W max power consumption, and comes with a 90-120V 60Hz power supply.

Elation PIXEL-NET-4 Features:

  • ArtNet to DMX Driver
  • (4) DMX Universes
  • ArtNet Cat5 Input/Output / (4) RJ45 CAT5e Outputs
  • AC 90-120V - 50/60Hz or 200-240V - 50/60Hz
  • Multiple Unit Linkable 6 @120V (12 @220V)
  • 350W Max Power Consumption

Elation PIXEL-NET-4 Specifications:

  • Control / Connections:
    • (1) RJ45 CAT5 ArtNet Input
    • (1) RJ45 CAT5 ArtNet Output
    • Unique Device ID For Each Unit
    • (4) RJ45 CAT5e Outputs
    • powerCON In/Out
    • Multiple Unit Linkable: 6 units @120V / 12 units @220V
  • Size / Weight:
    • Length: 12.2” (310mm)
    • Width: 10.0” (255mm)
    • Vertical Height: 3.4” (86.2mm)
    • Weight: 8.0 lbs. (3.6kg)
  • Electrical / Thermal:
    • AC 90-240V - 50/60Hz
    • 350W Max Power Consumption
    • 32°F to 104°F (0°C to 40°C)
  • Approvals / Ratings:
    • CE Approved
    • cETLus Pending
