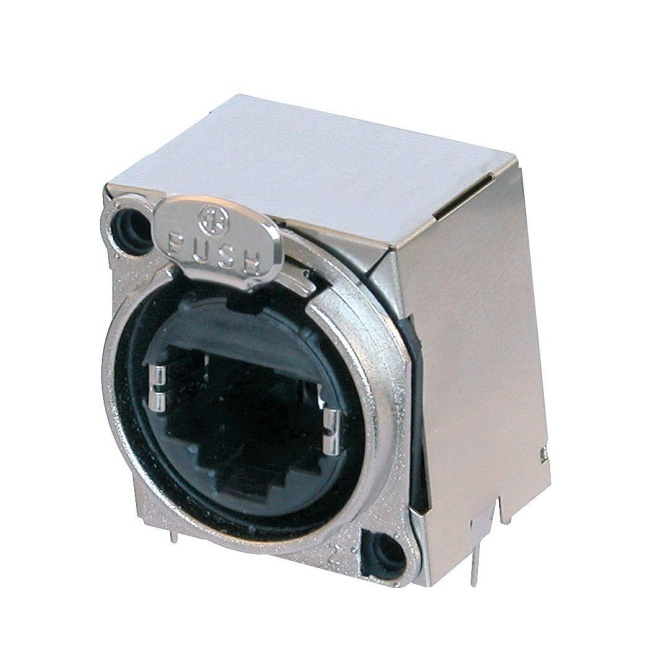

Neutrik NE8FBH-S
Shielded Ethercon Connector

OUR PART #:  NE8FBH-S

Neutrik's NE8FBH-S is a fully shielded, horizontal PCB mount RJ45 receptacle, B-series cutout with latch lock, max. panel thickness 3 mm.
Learn More
Our Price: $5.79
List Price: $8.28
Save up to 41% when you order by quantity!
  • Buy 25: $5.23 each.
  • Buy 50: $5.05 each.
  • Buy 100: $4.86 each.
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NE8FBH-S
Qty:
Similar Products

Neutrik's NE8FBH-S is a fully shielded, horizontal PCB mount RJ45 receptacle, B-series cutout with latch lock, max. panel thickness 3 mm. The "Shielded etherCON" offers a closed metal housing to avoid EMI or cross talking.

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.

The B-Series offers a space saving design and a rugged metal front plate. Does not intermate with CAT6 cable connectors.

Neutrik N8FBH-S Features:

  • Accommodates rugged etherCON NE8MC* or any standard RJ45 plug
  • Approved latch lock system
  • Comprehensive shielding granted by completely closed metal housing
  • Improves EMC performance of appliance even in unmated condition
  • Connector is fixed onto PCB due to soldered connector housing
  • Complies with Class D according to TIA / EIA 568B and ISO / IEC 11801 standard
  • Ground panel connection

Neutrik N8FBH-S Specifications:

  • Product:
    • Title: NE8FBH-S
    • Gender: Female
  • Electrical:
    • Contact resistance: < 10 m-Ohm
    • Dielectric strength: 1 kVdc
    • Frequency range: 1 - 100 MHz
    • Insulation resistance: > 0.5 G-Ohm
    • Rated current per contact: 1,5 A
    • Rated voltage: < 50 V
    • Transmission performance: Class D
    • Standard compliance: TIA/EIA 586B, IEC11801
  • Mechanical:
    • Insertion force: = 20 N
    • Withdrawal force: = 20 N
    • Lifetime: > 1,000 mating cycles
    • Panel thickness: max. 3 mm 0.12'
    • Wiring: Horizontal PCB mount
    • Locking device: Latch lock
    • Mounting direction: Rear
    • Chassis shape: B
  • Material:
    • Contact plating: 0.2 µm Au over Ni plating
    • Contacts: Bronze (CuSn8)
    • Insert: PBTP 15 % GR
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Nickel
  • Environmental:
    • Flammability: UL 94 V-0
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -30 °C to +80 °C
