Neutrik NE8FDP-R
Panel Mount Ethercon Feed Thru Connector

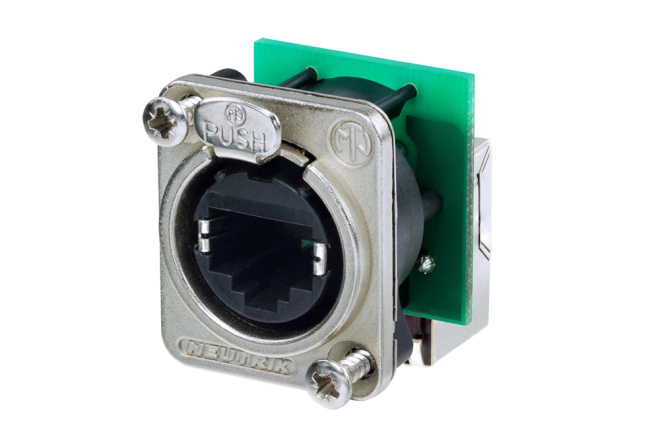

Neutrik NE8FDP-R: Right angle RJ45 feedthrough receptacle, D-shape metal flange with latch lock. Mounting screws included.
Learn More
Our Price: $9.92
List Price: $14.21
Save up to 41% when you order by quantity!
  • Buy 25: $8.96 each.
  • Buy 50: $8.64 each.
  • Buy 100: $8.32 each.
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Neutrik NE8FDP-R
Usually ships in 7-14 business days.
Need it sooner? Call us!
Similar Products

Neutrik NE8FDP-R: Right angle RJ45 feedthrough receptacle, D-shape metal flange with latch lock. Mounting screws included.

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.

The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market. Does not intermate with CAT6 cable connectors.

Neutrik NE8FDP-R Features:

  • Right angle CAT5e jack for space saving connections on the rear
  • Accommodates NE8MC* or any standard RJ45 plugs
  • Approved latch lock system
  • Mountable from the front or rear of the panel
  • Complies with CAT5e according to TIA / EIA 568B and ISO / IEC 11801 standards

Neutrik NE8FDP-R Specifications:

  • Product:
    • Title: NE8FDP-R
    • Gender: Female
  • Electrical:
    • Contact resistance: < 10 mOhm
    • Dielectric strength: 1 kVdc
    • Frequency range: 1 - 100 MHz
    • Insulation resistance: > 0.5 G-Ohm
    • Rated current per contact: 1.5 A
    • Rated voltage: < 50 V
    • Transmission performance: CAT 5e
    • Standard compliance: TIA/EIA 586B, IEC11801
  • Mechanical:
    • Insertion force: = 20 N
    • Withdrawal force: = 20 N
    • Lifetime: > 1,000 mating cycles
    • Panel thickness: max. 4 mm , 0.16''
    • Wiring: Feedthrough
    • Locking device: Latch lock
    • Chassis shape: D
  • Material:
    • Contact plating: 0.2 µm Au over Ni plating
    • Contacts: Bronze (CuSn8)
    • Insert: PBTP 15 % GR
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Nickel
  • Environmental:
    • Flammability: UL 94 V-0
    • Temperature range: -30 °C to +80 °C
