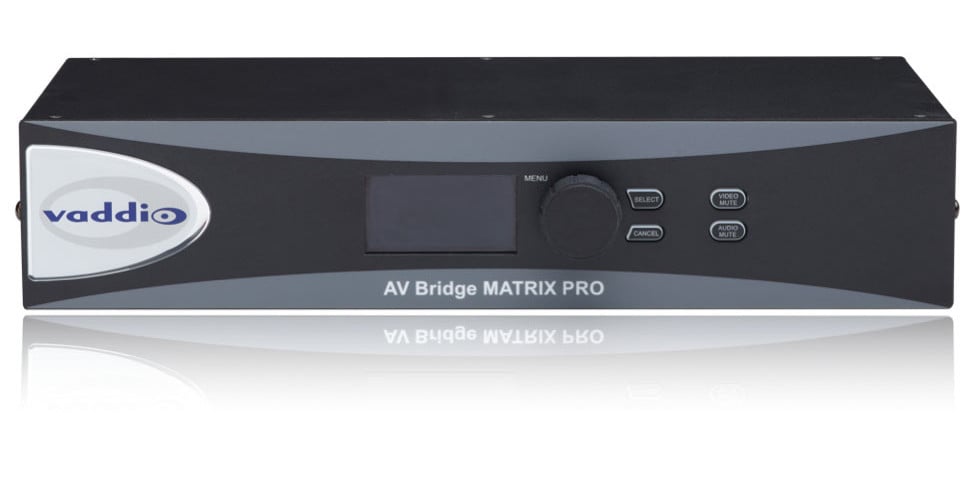

Vaddio AV Bridge MATRIX PRO
AV Encoder with IP and USB Streaming

OUR PART #  AV-BRIDGE-MATRIX-PRO

Our Price: $4,947.00
List Price: $5,495.00
You save 10%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Vaddio AV Bridgeâ„¢ MATRIX PRO merges audio and video mixing functionality into a single convenient tool. It offers a simple way to add multiple cameras, microphones, and other AV devices to a traditional AV room design. It then can manage the complex process of mixing, switching, and controlling those devices down into a single USB stream.

Users get the advantage of integrating their PC-based platform and intuitive UC interface while being connected to multiple sensory inputs, providing a professional AV experience. At the same time, they also get access to cloud-based applications and a UC platform of choice for content creation and sharing, audio conferencing, video conferencing, and a multitude of other collaboration activities.

Vaddio AV Bridge MATRIX PRO Key Features:

  • AV encoder with simultaneous IP and USB 2.0 streaming
  • Four-input HD video switcher
  • Built-in Quick-Connect Technology
  • 8x4 cross-point audio matrix mixer/switcher
  • Four (4) audio ports with built-in AEC
  • Built-in web server for programming, control and remote management

Vaddio AV Bridge MATRIX PRO Specifications:

  • Manufacturer code: 999-8230-000 (North America)
  • A/V Encoding:
    • Resolutions:
      • IP (H.264 & AAC Audio) up to 1080p/30
      • USB 2.0 (MJPEG & PCM Audio) up to 720p/30 (limits of USB 2.0)
  • Media Players: Quick-Time, RealPlayer, and VLC Media Player (for IP Streaming)
  • Supported Input Resolutions:
    • HDMI & YPbPr: 1080p/60/59.94/50/30/25 frames/s, 720p/60/59.94/50 frames/s, 1080i/59.94/50 fields/sec
    • RGBHV (VESA): 1280 x 720 @60Hz (16:9), 1280x768 @60Hz (15:9)m, 1280x800 @60Hz (16:10), 1360 x 768 @60Hz (16:9), 1024 x 768 @60Hz (4:3 centered in 16:9 frame)
    • DVI (on HDMI connector using sRGB color space): 1080p/60/59.94/50/frames/s, 720p/60/59.94/50Hz frames/s, 1080i/59.94/50Hz, fields/s, 1440 x 900 @60Hz, 1360 x 768 @60Hz, 1280 x 800 @60 Hz, 1280 x 768 @60Hz, 1280 x 720 @60Hz
    • EDID Supported Resolutions: 1080p/60/59.94/50/frames/s, 720p/60/59.94/50Hz frames/s, 1440 x 900 @60Hz, 1360x768 @60Hz, 1280x800 @60 Hz
  • Video/Audio DSP:
    • Video: Auto-scaling, Noise Filter and Deinterlacing
    • Audio: Compressor, Equalizer and Filters
  • Audio I/O:
    • Four (4) EasyMic Ports, Four Mic/Line Inputs (with 4-AECs and phantom power for mics)
    • Four (4) Line Outputs (8x4 Matrix Mixer)
  • Control:
    • Embedded Web Server for configuration and administration
    • Front Panel Controls for viewing configurations and A/V muting
    • Telnet on the Network RJ-45 Port, RS-232 Port (for support of legacy control products)
  • USB and Network:
    • USB: Type-B USB 2.0 Compliant Connector
    • Network: Shielded RJ-45 10/100 Base-T
  • IP Streaming: RTSP or HLS (Apple’s HTTP Live Streaming)
  • Physical:
    • Dimensions (WxHxD): 18.93" (with Rack Ears) x 3.47" x 8.0" (480.8 x 88.14 x 203.2mm)
    • Weight: 5.55643 lbs (2.5203543 kg)

Vaddio AV Bridge MATRIX PRO
AV Encoder with IP and USB Streaming

OUR PART #  AV-BRIDGE-MATRIX-PRO

Product Information:

The Vaddio AV Bridgeâ„¢ MATRIX PRO merges audio and video mixing functionality into a single convenient tool. It offers a simple way to add multiple cameras, microphones, and other AV devices to a traditional AV room design. It then can manage the complex process of mixing, switching, and controlling those devices down into a single USB stream.

Users get the advantage of integrating their PC-based platform and intuitive UC interface while being connected to multiple sensory inputs, providing a professional AV experience. At the same time, they also get access to cloud-based applications and a UC platform of choice for content creation and sharing, audio conferencing, video conferencing, and a multitude of other collaboration activities.

Vaddio AV Bridge MATRIX PRO Key Features:

  • AV encoder with simultaneous IP and USB 2.0 streaming
  • Four-input HD video switcher
  • Built-in Quick-Connect Technology
  • 8x4 cross-point audio matrix mixer/switcher
  • Four (4) audio ports with built-in AEC
  • Built-in web server for programming, control and remote management

Vaddio AV Bridge MATRIX PRO Specifications:

  • Manufacturer code: 999-8230-000 (North America)
  • A/V Encoding:
    • Resolutions:
      • IP (H.264 & AAC Audio) up to 1080p/30
      • USB 2.0 (MJPEG & PCM Audio) up to 720p/30 (limits of USB 2.0)
  • Media Players: Quick-Time, RealPlayer, and VLC Media Player (for IP Streaming)
  • Supported Input Resolutions:
    • HDMI & YPbPr: 1080p/60/59.94/50/30/25 frames/s, 720p/60/59.94/50 frames/s, 1080i/59.94/50 fields/sec
    • RGBHV (VESA): 1280 x 720 @60Hz (16:9), 1280x768 @60Hz (15:9)m, 1280x800 @60Hz (16:10), 1360 x 768 @60Hz (16:9), 1024 x 768 @60Hz (4:3 centered in 16:9 frame)
    • DVI (on HDMI connector using sRGB color space): 1080p/60/59.94/50/frames/s, 720p/60/59.94/50Hz frames/s, 1080i/59.94/50Hz, fields/s, 1440 x 900 @60Hz, 1360 x 768 @60Hz, 1280 x 800 @60 Hz, 1280 x 768 @60Hz, 1280 x 720 @60Hz
    • EDID Supported Resolutions: 1080p/60/59.94/50/frames/s, 720p/60/59.94/50Hz frames/s, 1440 x 900 @60Hz, 1360x768 @60Hz, 1280x800 @60 Hz
  • Video/Audio DSP:
    • Video: Auto-scaling, Noise Filter and Deinterlacing
    • Audio: Compressor, Equalizer and Filters
  • Audio I/O:
    • Four (4) EasyMic Ports, Four Mic/Line Inputs (with 4-AECs and phantom power for mics)
    • Four (4) Line Outputs (8x4 Matrix Mixer)
  • Control:
    • Embedded Web Server for configuration and administration
    • Front Panel Controls for viewing configurations and A/V muting
    • Telnet on the Network RJ-45 Port, RS-232 Port (for support of legacy control products)
  • USB and Network:
    • USB: Type-B USB 2.0 Compliant Connector
    • Network: Shielded RJ-45 10/100 Base-T
  • IP Streaming: RTSP or HLS (Apple’s HTTP Live Streaming)
  • Physical:
    • Dimensions (WxHxD): 18.93" (with Rack Ears) x 3.47" x 8.0" (480.8 x 88.14 x 203.2mm)
    • Weight: 5.55643 lbs (2.5203543 kg)
