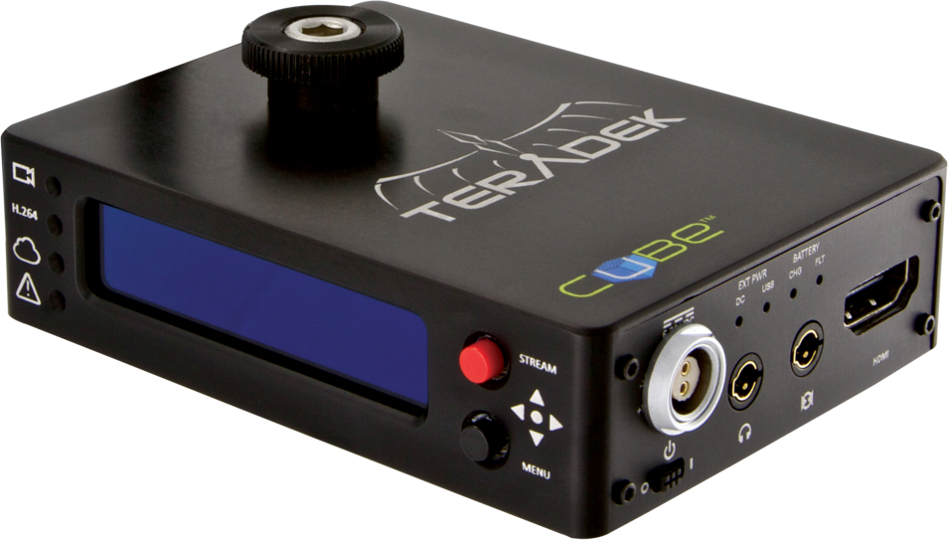

Teradek Cube 205
3G/4G USB 2.0 HDMI Streaming Encoder

OUR PART #  TER-CUBE-205

Our Price: $1,290.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Use the Teradek Cube 205 as an HD video encoder for HDMI signal sources. It can stream via Ethernet or a single 3G/4G LTE (cellular) USB dongle to Teradek decoders or content delivery networks.

The Cube 205 includes all of the same great features of the original Cube such as a low power compact aluminum chassis, comprehensive transport protocol support (RTP / RTSP / RTMP / MPEG-TS*), and compatibility with any streaming video platform.
*MPEG-TS sold separately

Teradek Cube 205 Includes:

  • Cube 205 HD Video Encoder
  • 110-240V AC Power Adapter
  • Ethernet Cable
  • USB Stick with TeraCentral Desktop Software
  • HDMI Cable
  • Hot Shoe Adapter with Thumbscrew
  • 1-Year Warranty

Teradek Cube 205 Features/Specifications:

Video Inputs

    HD-SDI, SD-SDI: BNC or HDMI

Supported Resolutions

  • 1080i 50/59.94/60
  • 1080p 23.98/24/25/30
  • 720p 23.98/24/50/59.94/60
  • 576p
  • 480p

Video Codec

  • Compression Algorithm: Baseline, Main and High Profile H.264
  • Main and Baseline profiles
  • Bit Rate: 250 Kbps to 10 Mbps
  • Built in Video Scaler and Deinterlacer

Video Streaming Support

  • Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
  • Transport Protocols: RTP, RTSP, RTP over HTTP, MPEG-TS (Optional paid license), Zixi (Optional paid license)

Audio

  • Audio Compression: AAC-LC, MPEG Layer 2
  • Embedded Audio Input
  • Analog Line or Mic in, adjustable gain
  • Headphone output, adjustable volume

Physical

  • Dimensions: 2.5"W x 3.5"D x .9"H
  • Weight: 8 oz

Interfaces

  • Feature-rich Web UI for configuration and control
  • OLED LCD Display with joystick Navigation buttons
  • On/Off and Reset Switch
  • Micro SD
  • Powered USB 2.0 host port

Network

  • Ethernet: 10/100BASE-T
  • USB Modem support (optional-available separately)

Power

  • 2 Pin Lemo Power input
  • USB Charging
  • Nominal Power Consumption: 3W
  • Nominal Power Consumption while Charging : up to 10W
  • Auxiliary Power Input: 6-28V DC
