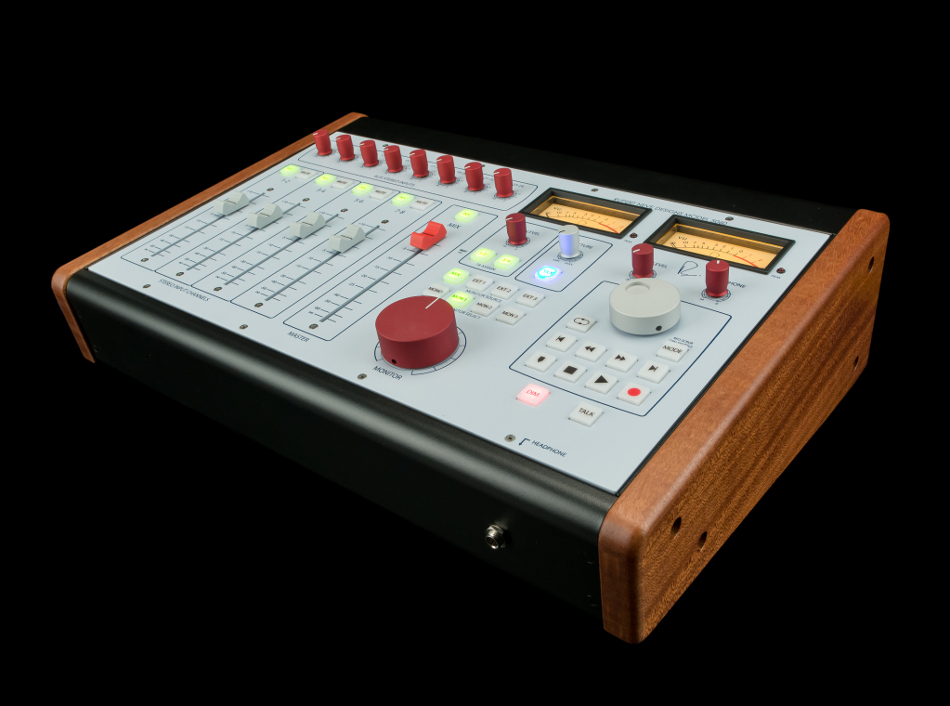

Rupert Neve Designs 5060 Centerpiece
Desktop Mixer 24-in/2-out


Call for price! Not available online.
List Price: $7,995.00

Rupert Neve’s 5060 Centerpiece, the Class-A analog heart of your modern studio, is sized for your desktop and delivers the tonality and center section features of their flagship 5088 console by cementing outboard together with serious custom transformers, flexible monitoring, DAW transport controls, and the raw power of a 24×2 mix-buss.

Define Your Workflow
With a modular, hybrid analogue/digital mix system, you can outfit your studio by utilizing modern DAW control technologies, and the 5060 seamlessly integrates stem outputs from the DAW with the rest of your control room, sums the final mix, and provides 2-track outputs, source selection, and speaker feed outputs from the monitor section. Used in conjunction with 5059 mixers and Portico modules, the 5060 forms the core of a scalable analog system. In this arrangement, the 5059s provide individual channel control, aux routing, and expandable channel counts, the Portico modules provide preamplification, EQ and dynamics, and the 5060 unites it all.

New Class-A Topologies
The latest +/- 24V class-A topologies in the 5060 are key to a more detailed, sweeter and spacious mix buss. With zero crossover distortion and unmatched purity, the 5060 delivers the sound of the 5088 to your desktop. For more dynamic harmonic content out of the mix buss, you can push the levels on the input channels into the mix buss to find the “sweet spot”. When pushing the mix buss levels, you may need to lower the master fader to avoid overloading your 2-track input.

Custom Transformers
Beyond providing ground-loop free interfacing, Rupert’s custom transformers in the 5060 are responsible for its larger than life sound. To accentuate the classic tone from the output transformers, you can use the Silk / Texture controls to dial in the desired amount of “color” depending on what each mix needs.

Stereo Input Channels 1-8
A professional grade 100mm fader determines the level of stereo input channels 1-8. Channels 1-8 can be either stereo or center-panned mono, and have both mute switches and inserts. The insert send of channels 1-2, and 3-4 has optional talkback assignment for use when feeding channels 1-8 through the 5060 to multichannel queue systems. The insert sends on channels 1-8 may also be used as a pre-fader send to a multi-track recorder.

Stereo Inputs Channels 9-24
Eight active stereo inputs with rotary faders for stem and aux inputs.

Stereo Buss Master
A 100mm stereo fader provides level control for the master stereo buss, outputting to both the stereo buss monitor signal and the stereo master output. For adding compression and EQ to the mix buss, there is also a transformer coupled insert engaged by the Insert switch.

Texture & Silk Red / Blue
Continuously variable Texture control for Silk Red and Blue modes allows you to fine tune the harmonic ratio and tonality of both stereo outputs when extra “color” is desired. Both Silk modes reduce the negative feedback on the output transformer, adding harmonic content as the texture is increased. Silk red mode accentuates the saturation in the high-mids and highs, while silk blue mode features more saturation in the lows and low mids.

The included talkback mic is activated by depressing the Talkback switch. The Talkback has level control, a direct out, and assignment to insert sends 1-2 & 3-4. When the talkback switch is depressed, the speaker output levels are lowered according to the setting of the Dim control. A talkback remote may also be plugged into the ¼” talkback remote input on the back of the 5060.

Transport Controls
Standard transport functions in DAWs including play, stop, record, fast-forward, rewind, loop, shuttle / jog and marker drop are controlled through Midi or USB interconnection. USB mode is compatible with Mac OS X 10.3 and up, and Windows 7 & 8.

Monitor Source Selection
Selects the monitor source from between the stereo buss and three external monitor inputs.

Monitor Select
Selects which speaker output is active. By holding the Mon 3 button, the Mon 3 outs will “latch” on, allowing both Mon 1 & 2 for use with subwoofers or speakers in the cutting room.

Headphone Amplifier
A reference grade headphone amplifier with headphone level control. The headphone signal follows the selection of the monitor select.

Monitor Level
A Precision 21 step attenuator provides highly accurate left/right stereo tracking, perfect repeatability, and determines the level of the monitor output.

VU Meters Display the RMS signal level of the selected monitor source, and the peak indicator illuminates red when the peak threshold has been exceeded.

Engaged when either the Dim or Talkback switch is depressed, Dim reduces the volume of monitor between -6dB and -30dB.

Rupert Neve 5060 Centerpiece Specifications:

  • Connections:
    • Mix Inputs 1-24: 2 x DB-25
    • Mix Channel Inserts Send/Return 1-8: 1 x DB-25
    • Mix Send to External Monitor:
      • Monitor Outputs (Mon 3 latching): 6 x XLR
      • Talkback Output: 1 x TRS
      • Talkback Remote: 1 x TS
      • Stereo Mix Insert/Return L-R: 4 x TRS
      • Stereo Mix Output:2 x XLR
      • MIDI In / Out: 2 x MIDI
      • Computer Connection: USB
      • Power: 3-Pin IEC
  • Dimensions: 18.5” wide x 12.5” deep x 5.75” high in the back (3.5” in the front)
  • Stereo Outputs (unless otherwise specified, frequency is 1 kHz):
    • Channels 1-8 Max input level
    • Fader at 0: 25.4 dBu
    • Fader at +10: 15.2 dBu
    • Channels 9-24 Max input level
    • trim at 0: 25.4 dBu
  • Max Output level: Any combination of inputs: 25.4 dBu
  • THD+N:
    • Channels 1-8, fader at unity, THD+N BW <10 Hz – 80k Hz>
      • +20 dBu, 20 Hz: 0.023%
      • +20 dBu, 2 kHz: 0.0022%
      • +20 dBu, 20 kHz: 0.016%
    • Channels 9-24, trim at unity, THD+N BW <10 Hz – 80k Hz>
      • +20 dBu, 20 Hz: 0.023%
      • +20 dBu, 2 kHz: 0.0032%
      • +20 dBu, 20 kHz: 0.017%
  • Noise: BW 22 Hz – 22 kHz
    • Channels 1-24: Better than -90 dBV
    • Channels 9-24: Better than -100 dBV
  • X-talk: + 10 dbu, 10 kH, L/R: -49 dB
    • Channel to channel: CMRR at 1K input to channel 1, 0 dBu fader at unity: -70 dBu
  • Frequency Response:
    • 10 Hz to 120 kHz: +/- 0.25 dB
    • 185 kHz: -3 dB
  • IMD: +4 dBu, CCIF/DFD: 0.0008%
  • Silk (Texture control at maximum)
    • Noise:
      • +20 dBu in, 20 Hz: Better than 5%
      • +20 dBu in, 200 Hz: Better than 0.2%
    • Frequency Response: 0 dBu in, 20 kHz – 2.3 dBu
    • Distortion:
      • +20 dBu in, 20 Hz –Better than 5%
      • +20 dBu in, 200 Hz – Better than 0.15%
    • Frequency Response: 0 dBu in, 30 Hz: -1 dBu
  • Peak LED’s: Trigger Threshold: +22 dBu
  • Monitor Outputs:
    • Max Output level 1 kHz: +25 dBu
    • THD+N:
      • +20 dBu, 20 Hz: 0.023%
      • +20 dBu, 2 kHz: 0.0032%
      • +20 dBu, 20 kHz: 0.017%
    • Noise:
      • 1-24: Better than -90 dBV
      • 9-24: Better than -100 dBV
  • Headphone Out:
    • Max output level: Better than +20 dBu, unloaded
    • THD+N: 2 kHz into 68 ohms, 16 dBu output: Better than 0.02%
    • Noise (22 Hz – 22 kHz): Better than -85 dBV
