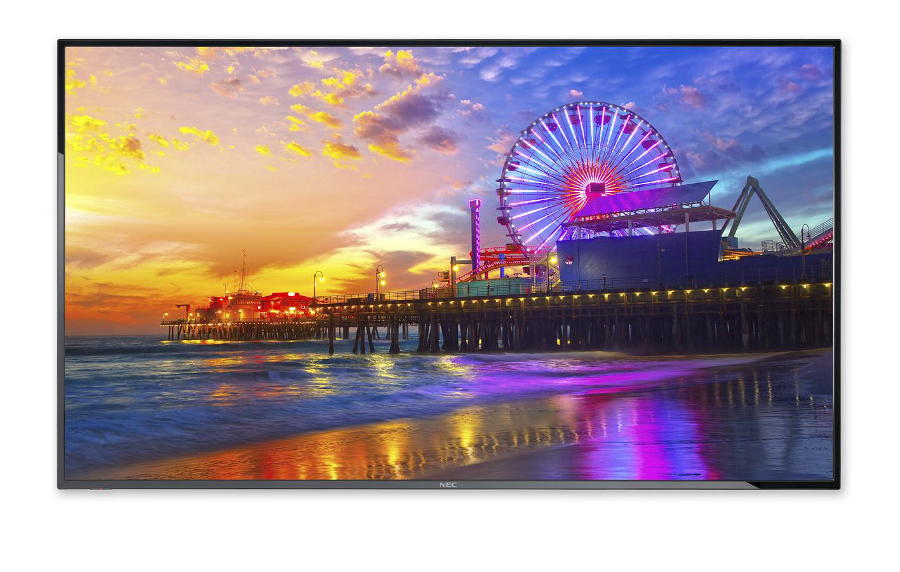

NEC Visual Systems E325
32" LED Backlit Display with Integrated Tuner

OUR PART #:  E325

The 32” NEC E325, a direct-lit, commercial-grade display, is ideal for education, corporate and other digital signage applications.
Learn More
Sale Price: $322.23
List Price: $439.00
You save 27%!
Write the first review.
NEC Visual Systems E325
In Stock

Related Products

The 32” NEC E325, a direct-lit, commercial-grade display, is ideal for education, corporate and other digital signage applications. Compared to previous generation displays, this model’s LED backlighting allows for reduced power consumption, a thinner depth, a smaller bezel and lighter weight. The E325’s integrated tuner and speakers allow users to enjoy high-definition broadcast capabilities. This display also features a USB player in which video, audio or JPEG picture files can be loaded and played in sequence for signage purposes.

The performance-driven design of this thinner, sleeker display model is all the better to showcase corporate messaging, and enable cross-company collaboration. The LED backlighting also leads to reduced total cost of ownership and, with a mercury-free design, it has a reduced environmental impact as well. For educators, digital signage can achieve campus-wide connectivity through a single point of access by alerting passersby of upcoming events and emergency notifications, while classroom displays provide a bright alternative to projector screens or old CRT televisions.

NEC E325 Includes:

  • 32" LCD Display
  • Power cord
  • VGA cable (Mini 15-pin D-sub)
  • Wireless remote control
  • Batteries
  • CD-ROM (user manual)

NEC E325 Features:

  • Integrated multimedia USB player makes digital signage simple
  • LED backlighting technology reduces power consumption and allows for a slimmer cabinet depth
  • Thinner bezel improves display's aesthetics
  • 24-Hour On/Off timer maintains power schedules
  • Built-in NTSC/ATSC analog/digital tuner allows for high-definition broadcast capabilities
  • Built-in, low-profile 5W speakers enhance the experience with superior sound
  • Built-in NTSC/ATSC (8-VSP, Clear QAM) analog/digital tuner
  • Variable picture modes (Dynamic Standard/EnergySavings/Theater/Custom)
  • Advanced Video/Audio Settings
  • Sleep Timer
  • Built-In closed captioning
  • Parental Control (V-Chip Function)
  • Power management
  • USB Port

NEC E325 Specifications:

  • Display:
    • Panel Technology: MVA
    • Viewable Image Size: 32"
    • Native Resolution: 1366 x 768
    • Backlight Type: LED Direct-lit
    • Brightness (typical): 300cd/m2
    • Contrast Ratio (typical): 3000:1
    • Viewing Angle: 176° Vert., 176° Hor. (88U/88D/88L/88R) @ CR>10
    • Response Time (Gray to Gray): 6.5ms
    • Refresh Rate: 60Hz
    • Aspect Ratio: 16:9
    • Active Screen Area: 27.5" x 15.4" (697.7 x 392.3mm)
    • Orientation: Landscape
    • Displayable Colors: More than 16.7 million
  • Synchronization Range:
    • Horizontal (Analog/Digital): 31-83 kHz
    • Vertical: 50-75 Hz
  • Input Signal:
    • Video: Analog RGB 0.7 Vp-p/75 Ohms
    • Sync:
      • Separate sync: TTL Level (Positive/Negative)
      • Composite sync: TTL Level (Positive/Negative)
      • Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
  • Connectivity:
    • PC Signal Compatibility: Yes
    • Macintosh Compatibility: Yes
    • Input Terminals:
    • Digital: HDMI (3)
    • Analog: VGA 15-pin D-sub, RCA (Y, Cb/Pb, Cr/Pr) Component
    • Audio: HDMI Audio, Stereo Mini-Jack
    • External Control: RS-232C
  • Output Terminals:
    • Audio: SPDIF
  • Power Consumption (typical):
    • On: 52W
    • ECO Mode Standby: <0.5W
  • Physical:
    • Bezel Width (Left/Right, Top/Bottom): 0.47"/0.47", 0.47"/0.63" (11.9mm/11.9mm, 11.9mm/16.1mm)
  • Dimensions (WxHxD):
    • Net (with stand): 28.6" x 18.2" x 10.0" (726.7 x 461.1 x 255.0mm)
    • Net (without stand): 28.6" x 16.7" x 3.0" (726.7 x 424.3 x 76.8mm)
  • Shipping: 31.0" x 19.7" x 5.2" (786.0 x 501.0 x 133.0mm)
  • Weight:
    • Net (with stand): 11.8lbs. (5.3kg)
    • Net (without stand): 10.7lbs. (4.8kg)
    • Shipping: 14.8lbs. (6.7kg)
  • VESA Hole Configuration: 100 x 100mm (4-hole)
  • Environmental Conditions:
    • Operating Temperature: 32°-104°F (0°-40°C)
    • Operating Humidity: 10-80%
    • Operating Altitude: 6562 ft. (2000m)
    • Storage Temperature: 32-104°F / 0-40°C
    • Storage Humidity: 5-85%
    • Storage Altitude: 35,000 ft. (10,667m)
  • Limited Warranty (parts & labor, includingbacklight): 3 years
