OWI Incorporated AMP1SGRN1
Two Speaker Combination Package, Green

OUR PART #  AMP1SGRN1

Our Price: $427.50
List Price: $475.00
You save 10%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

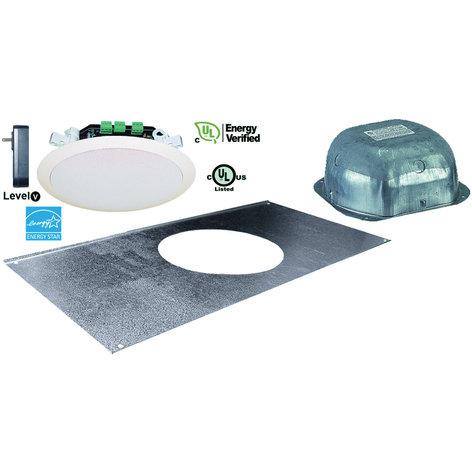

The OWI Inc. AMP1SGRN1 Amplified “Green” Drop Ceiling, 2 Speaker Combination Package features a 3-source, +1, 6.5” amplified speaker and consists of the following: 1 AMP1SGRN 6.5” (16.51cm) amplified speaker with (PS15VDC35AL5) UL listed, Level 5 (Energy Star) 15VDC, 3.5A power supply, 1 backcan enclosure, and 1 6TB tile bridge.

This unit has 32 watts of power which can drive up to four speakers connected series parallel to have a net impedance of 8 ohms. Volume Control is also available.

OWI Inc. AMP1SGRN1 Features:

  • Self-Powered "Green" Speaker
  • UL and Energy Star Listed
  • 2 x 16 or total 32 Watts maximum power
  • Three Audio Inputs
  • Priority Override Feature
  • Balanced Line Level Output
  • Self Test Feature
  • RS232 Controllable Supervision
  • Infrared Wireless Microphone Auxiliary Input
  • Speaker Combination Program Available
  • Over temperature protected
  • Over voltage protected
  • Over current protected
  • Paintable

OWI Inc. AMP1SGRN1 Specifications:

  • Input Voltage (Nominal): (25 W) 15 VDC
  • Input Current, Operating (15 VDC): 1.667 Amperes Peak
  • Input Volt-Amperes, Peak (15 VDC): 25 V - Amperes
  • Input Voltage Maximum: 16.5 V, DC
  • Frequency Response:
    • EQ Set to Flat: 50 Hz to 15 kHz
    • Bass: 10 dB @ 50 Hz
    • Treble: 10 dB @ 10 kHz
  • THD + Noise: <1% at 15 W, “A” Weighted
  • S/N: >90 dB
  • Max. Power Output (15 V In): 2 Times 16 W or a Total of 32 W
  • AC Power, Sleep Mode: Less than 1 W
  • DC Power (Standby): 1.5 W
  • Short Circuit Protected: Yes
  • Min. Load Impedance: 4.0 Ohm (Two 8 Ohm Speakers in Parallel)
  • Min. Input Impedance, Priority In: 20 kOhms
  • Min. Input Impedance, Bal. Line In: 820 Ohms
  • Min. Input Impedance, Mini-Jack: 2.300 Ohms
  • Dynamic Mic Input Impedance: 300 Ohms
  • Speaker Overall Dimension: F8.93 D X 4.45" H
  • Cut Out Size: F7.68"
  • Speaker Weight: 6 lbs.
  • Mounting Hardware: Mounting Clamps
  • Gift Box Dimensions (LxWxH): 14" x 10" x 6"
  • Gift Box Weight: 6.3 lbs.

OWI Incorporated AMP1SGRN1
Two Speaker Combination Package, Green

OUR PART #  AMP1SGRN1

Product Information:

The OWI Inc. AMP1SGRN1 Amplified “Green” Drop Ceiling, 2 Speaker Combination Package features a 3-source, +1, 6.5” amplified speaker and consists of the following: 1 AMP1SGRN 6.5” (16.51cm) amplified speaker with (PS15VDC35AL5) UL listed, Level 5 (Energy Star) 15VDC, 3.5A power supply, 1 backcan enclosure, and 1 6TB tile bridge.

This unit has 32 watts of power which can drive up to four speakers connected series parallel to have a net impedance of 8 ohms. Volume Control is also available.

OWI Inc. AMP1SGRN1 Features:

  • Self-Powered "Green" Speaker
  • UL and Energy Star Listed
  • 2 x 16 or total 32 Watts maximum power
  • Three Audio Inputs
  • Priority Override Feature
  • Balanced Line Level Output
  • Self Test Feature
  • RS232 Controllable Supervision
  • Infrared Wireless Microphone Auxiliary Input
  • Speaker Combination Program Available
  • Over temperature protected
  • Over voltage protected
  • Over current protected
  • Paintable

OWI Inc. AMP1SGRN1 Specifications:

  • Input Voltage (Nominal): (25 W) 15 VDC
  • Input Current, Operating (15 VDC): 1.667 Amperes Peak
  • Input Volt-Amperes, Peak (15 VDC): 25 V - Amperes
  • Input Voltage Maximum: 16.5 V, DC
  • Frequency Response:
    • EQ Set to Flat: 50 Hz to 15 kHz
    • Bass: 10 dB @ 50 Hz
    • Treble: 10 dB @ 10 kHz
  • THD + Noise: <1% at 15 W, “A” Weighted
  • S/N: >90 dB
  • Max. Power Output (15 V In): 2 Times 16 W or a Total of 32 W
  • AC Power, Sleep Mode: Less than 1 W
  • DC Power (Standby): 1.5 W
  • Short Circuit Protected: Yes
  • Min. Load Impedance: 4.0 Ohm (Two 8 Ohm Speakers in Parallel)
  • Min. Input Impedance, Priority In: 20 kOhms
  • Min. Input Impedance, Bal. Line In: 820 Ohms
  • Min. Input Impedance, Mini-Jack: 2.300 Ohms
  • Dynamic Mic Input Impedance: 300 Ohms
  • Speaker Overall Dimension: F8.93 D X 4.45" H
  • Cut Out Size: F7.68"
  • Speaker Weight: 6 lbs.
  • Mounting Hardware: Mounting Clamps
  • Gift Box Dimensions (LxWxH): 14" x 10" x 6"
  • Gift Box Weight: 6.3 lbs.
