West Penn C210-SEG-20
20ft segment of C210 Cable

OUR PART #:  C210-SEG-20

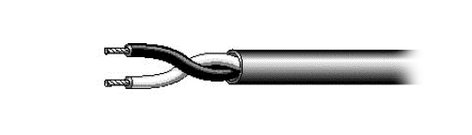

The West Penn C210 is unshielded Cluster Speaker Cable with 10/2 stranded bare copper conductors. It's approved for direct burial and outdoor use.
Learn More
Sale Price: $10.50
List Price: $42.84
You save 75%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

West Penn C210-SEG-20
Qty:
Similar Products

The West Penn C210 is unshielded Cluster Speaker Cable with 10/2 stranded bare copper conductors. It's approved for direct burial and outdoor use. This particular item (Full Compass #: C210-SEG-20) is a 20 foot segment.

West Penn C210-SEG-20 Specifications:

  • Construction:
    • Length: 20ft
    • Conductor: 10 AWG Bare Copper
    • Stranding: 65x28
    • Insulation Material: PVC/ Nylon
    • Insulation Thickness:
      • 0.020'' PVC Nom.
      • 0.005" Nylon Nom.
    • Number of Conductors: 2
    • Shield: None
    • Drain: None
    • Jacket Material: Sunlight Resistant PVC
    • Jacket Thickness: 0.047" Nom.
    • Jacket Color: Gray
    • Overall Cable Diameter: 0.357'' Nom.
    • Approximate Cable Weight: 108 lbs/1 Mft Nom.
    • Flame Rating --
  • Electrical & Environmental:
    • Temperature Rating:  (-20deg C to 60deg C
    • Operating Voltage: 600 V RMS
    • Max.Capacitance Between Conductors @ 1 KHz: N/A
    • DC Resistance per Conductor @ 68° F (20° C) 1.10 Ohms/1 Mft Nom.
    • Insulation Colors: Black ,White
    • RoHS Compliant --
  • Mechanical:
    • Max. Recommended Pull Tension: 230 lbs
    • Min. Bend Radius (Install): 3.5”
