DPA Microphones SC4063-FMK

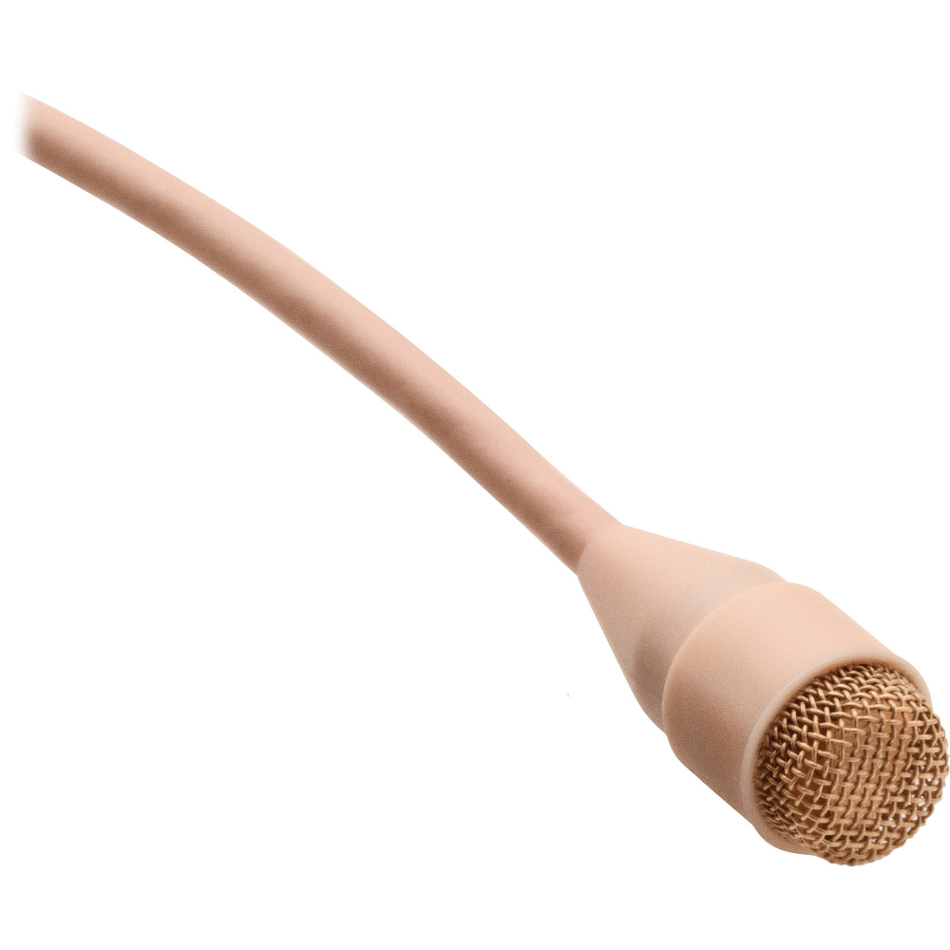

Beige d:screet™ 4063 Omnidirectional Microphone w/ Clip, Windscreen


DPA’s latest d:screet™ 4063 Miniature Omnidirectional Microphones are tiny and versatile yet produce a big...
Learn More
Our Price: $449.95
Write the first review.
DPA Microphones SC4063-FMK
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

DPA’s latest d:screet™ 4063 Miniature Omnidirectional Microphones are tiny and versatile yet produce a big, open sound that is enhanced by their flexibility and wireless adaptability.

Originally designed for use with wireless systems in theater, television and close-miked instrument applications, the d:screet™ 4063 Miniature Omnidirectional Microphone offers eminent sound quality, a large range of accessories and corresponding adapters that are available for all pro wireless systems.

With very low noise and an extremely high sensitivity, the d:screet™ Miniature Mics offer the clearest, most transparent, and natural sound available on the miniature mic market. The mics are capable of handling up to 138 dB peak before clipping, have a linear response with low distortion, and possess an extremely large dynamic range with accessories that allow for a broad range of applications. Whether reproducing the voice or an instrument in either a film, theater, television, or other close-miking settings, the mics will adapt to your needs.

The d:screet™ 4063 is acoustically identical to the 4060, but the FET preamp in the input stage is designed for working with the lower supply voltage. Because of their small size, the mic’s tiny condensers exhibit an exceedingly accurate omnidirectional pattern and therefore do not need to be aimed directly at the sound source to achieve quality pickup.

DPA’s d:screet™ design features a reinforced cable relief that’s made to withstand the constant twists, bends, and pulls that are part of everyday use. With a gold treated diaphragm and microphone housing, plus a Kevlar reinforced cable, the d:screets are made to endure the toughest of conditions. They also have a Unique Double Vent Protection System that allows for strong resistance to humidity and sweat.

The original d:screet™ 4063 Miniature Mics without the reinforced cable relief are still available upon request.

d:screet 4063 Omnidirectional Microphone Includes:

  • Mic clip
  • Windscreen

d:screet 4063 Omnidirectional Microphone Features:

  • Extremely rugged and reliable
  • Exceptional audio quality with low noise and high sensitivity
  • Adapts to all pro wireless systems
  • Large selection of accessories
  • Adapter required
  • Available in four colors: black, brown, beige and white

d:screet 4063 Omnidirectional Microphone Specifications:

  • Directional Characteristics: Omnidirectional
  • Principle of Operation: Pressure
  • Cartridge Type: Pre-polarized condenser element with vertical diaphragm
  • Frequency Range, ± 2 dB:
    • Soft boost grid: 20 Hz – 20 kHz, 3 dB soft boost at 8 – 20 kHz
    • High boost grid: 20 Hz – 20 kHz, 10 dB boost at 12 kHz
  • Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dBre. 1 V/Pa
  • Equivalent noise level A-weighted: Typ. 26 dB(A) re.20 µPa (max. 28 dB(A))
  • Equiv. noise level ITU-R BS.468-4: Typ. 38 dB (max.40 dB)
  • S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL): 68 dB(A)
  • Total harmonic distortion (THD):
    • <1% THD up to 123 dB SPL peak
    • <1% THD up to 120 dB SPL RMS sine
  • Dynamic range: Typ. 97 dB
  • Max. SPL, peak before clipping: 138 dB
  • Output impedance: 30 – 40 ohm
  • Cable drive capability: Up to 300 m (984 ft)
  • Power supply: For wireless systems: Min. 3 V – max.50 V through DPA adapter
    • With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance
  • Connector: MicroDot
  • Color: Beige
  • Microphone weight: 7.5 g (0.26 oz) incl. cable and MicroDot connector
  • Microphone diameter: 5.4 mm (0.21 in)
  • Microphone length: Max. 12.7 mm (0.5 in)
  • Cable length: 1.8 m (6 ft)
  • Cable diameter: 1.6 mm (0.06 in)
  • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
  • Operating temperature range: -40 °C to 45 °C (-40 °Fto 113 °F)
  • Relative Humidity (RH): Up to 90%
