DPA Microphones MMB4066-B03
d:fine 4066 Mini Omni Mic Boom w/ Hardwired 3-Pin Lemo for Sennheiser Wireless Transmitters, Black

OUR PART #:  MMB4066-B03

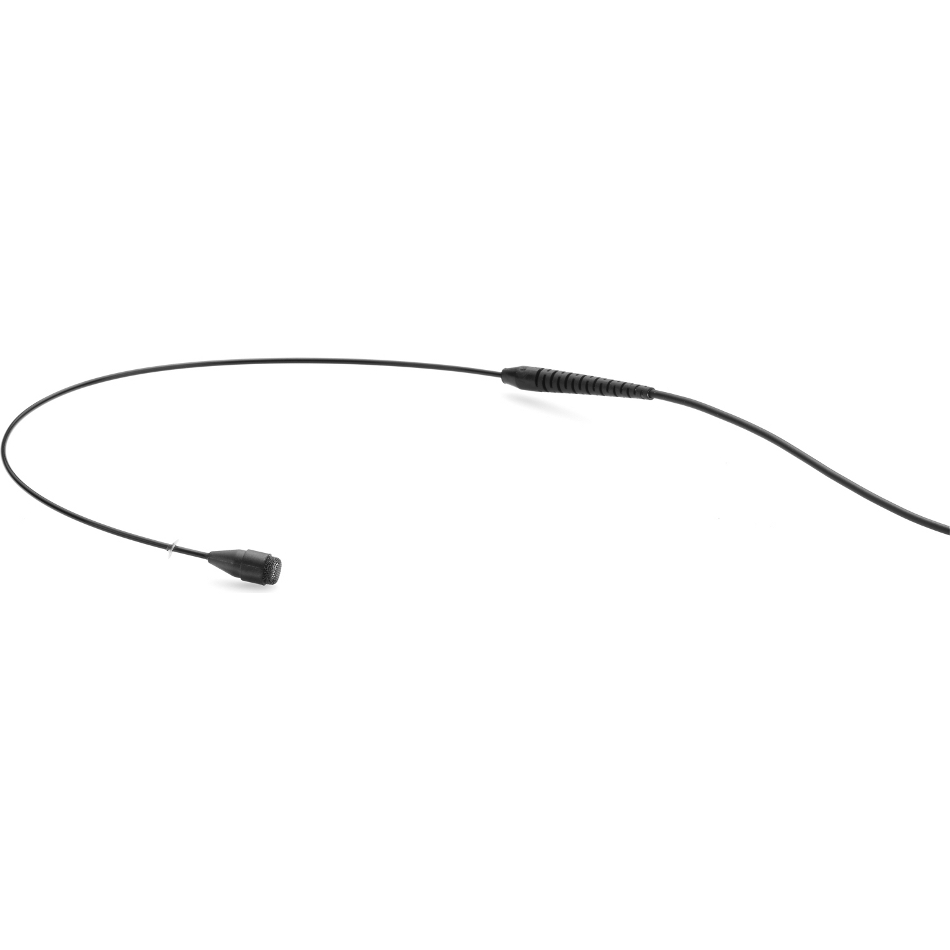

DPA Microphones' MMB4066-B03 is a miniature, omnidirectional microphone boom with a hardwired 3-pin lemo connector meant for use with Sennheiser Wireless Transmitters.
Learn More
Our Price: $590.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DPA Microphones MMB4066-B03
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

DPA Microphones' MMB4066-B03 is a miniature, omnidirectional microphone boom with a hardwired 3-pin lemo connector meant for use with Sennheiser Wireless Transmitters.

The MMB4066 is available in three colors: black, beige and chocolate.

DPA Microphones MMB4066 Specifications:

  • Directional characteristics: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser element withvertical diaphragm
  • Frequency range, ± 2 dB:
    • Soft Boost Grid: 20 Hz – 20 kHz ±2 dB, 3 dB soft boost at 8 – 20 kHz
    • High boost grid: 20 Hz – 20 kHz ±2 dB, 10 dB boost at 12 kHz
  • Sensitivity, nominal, ±2 dB: Nominally 6 mV/Pa ± 3dBat 1 kHz
  • Dynamic Range: Typ. 97 dB
  • Equivalent noise level:
    • A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
    • ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
  • Total harmonic distortion (THD): 123 dB SPL peak(<1% THD)
  • Max. SPL, peak before clipping: 144 dB SPL peakbefore clipping
  • Output impedance: 30 – 40 ohm
  • Cable:
    • Length: 3.9' (1.2 m)
    • Diameter: 0.06" (1.6 mm)
  • Cable drive capability: Up to 300 m (984 ft)
  • Microphone Diameter: 0.21" (5.4 mm)
  • Weight: 14 g (0.5 oz) includes cable and connector
  • Color: Black
