DPA Microphones MMB4066-C56
d:screet 4066 Miniature Omni Microphone Boom with Hardwired TA5F Connector for Lectrosonics Wireless Transmitters, Brown

OUR PART #:  MMB4066-C56

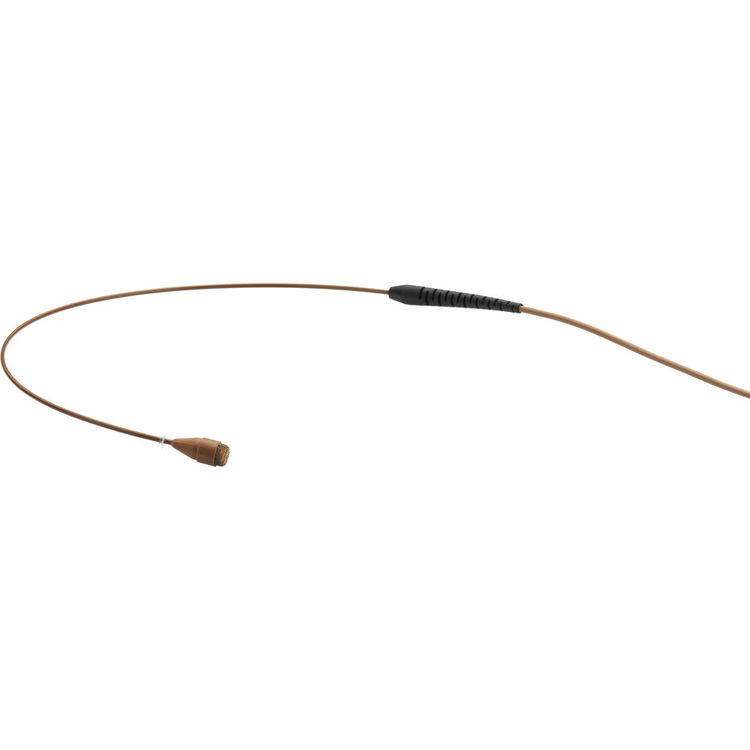

DPA Microphones' MMB4066-C56 is a miniature omnidirectional microphone Boom with hardwired TA5F connector for Lectrosonics wireless transmitters.
Learn More
Our Price: $590.00
Write the first review.
DPA Microphones MMB4066-C56
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

DPA Microphones' MMB4066-C56 is a miniature omnidirectional microphone Boom with hardwired TA5F connector for Lectrosonics wireless transmitters.

The MMB4066 is available in three colors: black, beige and chocolate.

DPA Microphones MMB4066 Specifications:

  • Directional characteristics: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser element with vertical diaphragm
  • Frequency range, ± 2 dB:
    • Soft Boost Grid: 20 Hz – 20 kHz ±2 dB, 3 dB soft boost at 8 – 20 kHz
    • High boost grid: 20 Hz – 20 kHz ±2 dB, 10 dB boost at 12 kHz
  • Sensitivity, nominal, ±2 dB: Nominally 6 mV/Pa ± 3 dBat 1 kHz
  • Equivalent noise level A-weighted: Typ. 26 dB(A) re.20 µPa (max. 28 dB(A))
  • Equiv. noise level ITU-R BS.468-4: Typ. 38 dB (max.40 dB)
  • Total harmonic distortion (THD): 123 dB SPL peak(<1% THD)
  • Max. SPL, peak before clipping: 144 dB SPL peak before clipping
  • Output impedance: 30 – 40 ohm
  • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
  • Cable drive capability: Up to 300 m (984 ft)
  • Cable:
    • Length: 3.9' (1.2 m)
    • Diameter: 0.06" (1.6mm)
  • Microphone Diameter: 0.21" (5.4 mm)
  • Weight: 14 g (0.5 oz) includes cable andconnector
