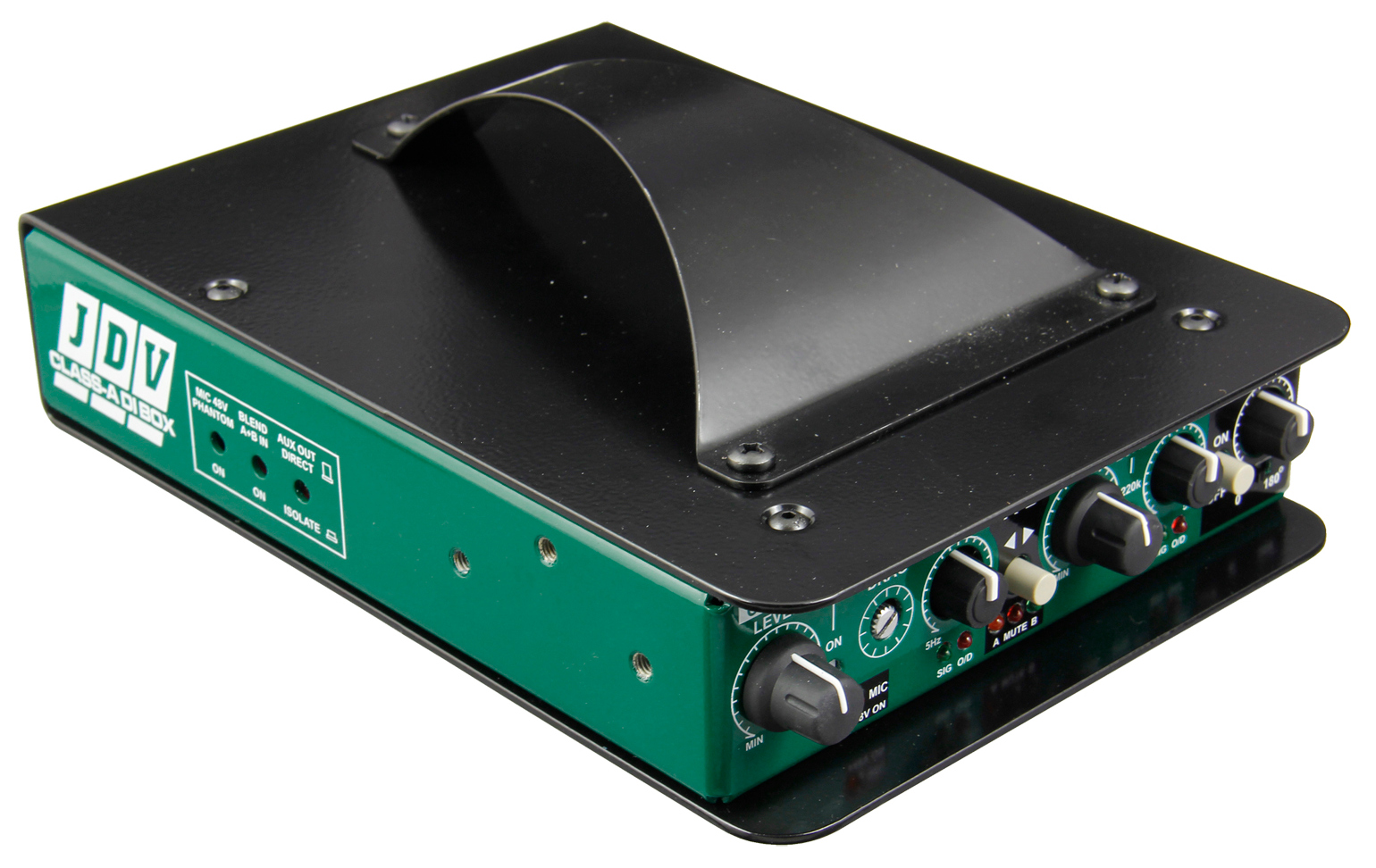

Radial Engineering JDV Mk5
2-Channel Active Direct Box

OUR PART #  JDV-REV5

Our Price: $449.99
List Price: $500.00
You save 10%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Radial Engineering's next-generation JDV Mk5 - a super DI active direct box - retains the purity and dynamic handling that has made it the first choice DI with artists as diverse as Marcus Miller, Victor Wooten and Bruce Swedien. Features include dual switchable inputs with level controls, drag control load correction for magnetic pickups and a 10 meg-ohm option to maximize the tone with piezos. A balanced input with 48V phantom power has been added to channel one to allow a microphone to be combined with the second channel (and adjustable phase control) to produce an incredibly natural sound. Rack- mountable for touring plus a line level drive option for direct recording.

The design of the JDV Mk5 beings with 100% discrete electronics and a unique class-A circuit with zero phase-cancelling negative feedback front-end. This is augmented with Drag™ control load correction that lets you optimize the impedance that is being applied to the pickup along with extra rail voltage for an abundance of headroom. The result is virtually zero harmonic, phase, and cross-point distortion resutling in the most natural rendering without coloration or artifact of any type.

Extra features include fully variable high-pass filters on each channel to eliminate excessive low frequency resonance, easy-read LED level meters, Jensen Transformer isolated outputs to eliminate hum and buzz caused by ground loops, and a +4 dB line level output for direct recording. Switching between channels may be done using a front panel switch or via the optional JR-2 remote control (sold separately).

Radial Engineering JDV Mk5 Features:

  • 100% discrete class-A active direct box
  • Feed forward design – no negative feedback
  • Drag control load correction for natural tone
  • Huge 30-Volt rails for exceptional headroom

Radial Engineering JDV Mk5 Specifications:

  • Instrument input circuit: without negative feedback
  • Instrument clip level: +18 dBu
  • Microphone input circuit: Low noise integrated circuit
  • Microphone clip level: -11 dBu
  • Frequency response: 20 Hz - 20 kHz
  • Dynamic range: 107 dB
  • Equivalent input noise: -90 dBu
  • Common mode rejection: -80 dB
  • THD+N: 0.004%
  • Clip level - output: +17 dBu
  • Gain - instrument input: +25 dB
  • Gain - line level boost : +20 dB
  • Gain - microphone input: +25 dB
  • Input Impedance:
  • Drag on: Variable from 22 kOhms to 500 kOhms
  • Drag off: 10 meg-Ohms
  • Output impedance at XLR: 400 Ohms
  • Instrument inputs: 1/4" selectable A or B with front panel switch or remote
  • Blend: Mixes both A and B channels together
  • Drag Control: Load correction for 1/4" instrument inputs
  • High-pass filter: Variable from 5 Hz - 500 Hz @-3 dB
  • Remote footswitch: Optional JR-2 for mute and channel select
  • Mic input: 1/4" TRS on channel-A
  • Phantom power: 48V on mic input, side access switch
  • Phase adjustment: Phazer on channel-B, variable from 0° - 360°
  • Throughput: Buffered THRU with direct or isolated setting
  • XLR output: Balanced mic level with 20 dB line booster switch
  • Isolation: Transformer isolation option for XLR output
  • 180° Polarity: Reverses pin-2 and pin-3 on the XLR output
  • Ground lift: Disconnects pin-1 at XLR output
  • XLR configuration: AES standard pin-1 (ground), pin-2 (+), pin-3 (-)
  • Power: External 100V - 240V AC with 48V phantom
  • Construction: 14-gauge steel chassis and outer shell
  • Finish: Durable powder coat
  • Size: 5" x 6.25" x 2" (127 x 159 x 51 mm)
  • Weight: 2.80lbs (1.28 kg)
  • Conditions: For use in dry locations only between 5°C and 40°C
  • Warranty: Radial 3-year, transferable
