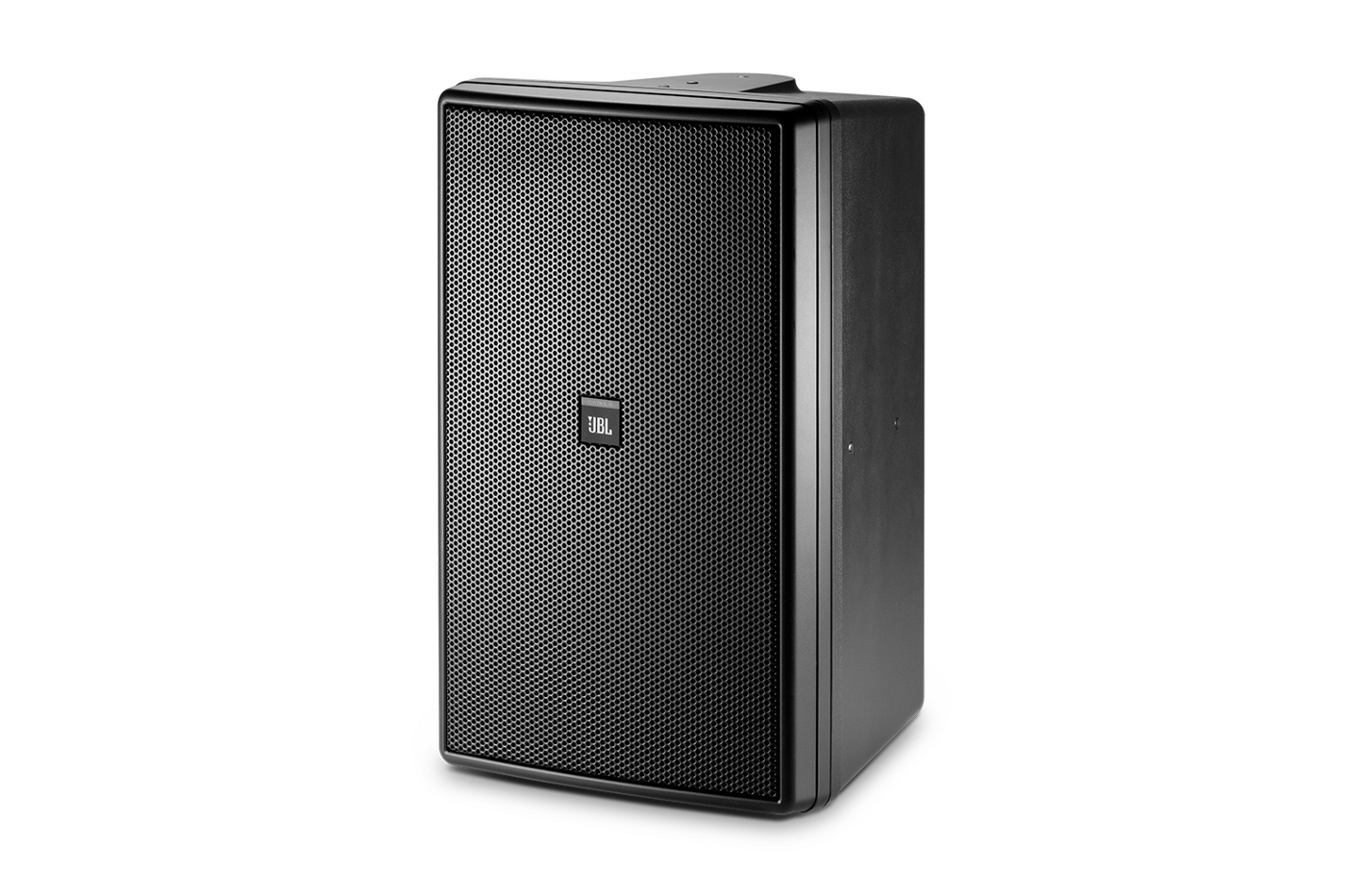

JBL CONTROL-31
2-Way, 10" Surface Mount Speaker, Black

OUR PART #:  CONTROL-31

The Control 31 utilizes high-power components, computer optimized horn, and a complex network to achieve smooth...
Learn More
Our Price: $600.00
List Price: $750.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL CONTROL-31
Qty:
In Stock

Similar Products

The Control 31 utilizes high-power components, computer optimized horn, and a complex network to achieve smooth, powerful high-fidelity performance, extended bandwidth, and well-controlled defined coverage from a compact loudspeaker.

The 250 mm (10") low-frequency driver features a woven fiberglass cone and pure butyl rubber surround for weather resistance (and clean sound quality), and the basket is rear-loaded into the baffle to minimize exposure. It also has a high-temperature fiberglass voice coil former for high sensitivity, high output capability and stable performance for wide-bandwidth sound reinforcement in small venues and salt environments (with optional marine-kit grille). The optimized cone geometry provides a smooth frequency response and good off-axis performance. A linear suspension spider provides low distortion, while FEA-optimized motor construction produces minimum harmonic distortion. An aluminum coupler ring outside the pole post further reduces distortion and further increases the sensitivity.

The high-output, high frequency compression driver features a unique, high-temperature polymer diaphragm, and fluid-cooling for high output levels with low distortion. The grille is thermoset composite coated and stands up well to UV as well as humidity. The grille is backed with JBL’s WeatherMax™ multi-layer foam and tight-weave screening to help prevent incursion of water. Nickel/zinc rust-resistant terminals ensure a secure input connection. An MTC-PC2 sealed-entrance cover is included to further protect the speaker’s terminals. The white-version cabinets are painted with a UV-resistant finish to resist yellowing due to UV exposure

Using JBL’s advanced ImageControl™ process for accurate, low-distortion control, the high-frequency waveguide gives a smooth frequency response and excellent sound character throughout the frequency – over the entire listening area. Its 110° x 110° symmetrical coverage provides the same coverage whether the cabinet is installed in vertical or horizontal orientation.

Designed for minimal insertion loss and reduced saturation, the line distribution transformer allows for use on either 70V or 100V distributed speaker lines. In the Thru setting, the 8 ohm impedance allows for the use of up to two speakers on a 4-ohm capable amplifier channel.

The included InvisiBall mounting method is simple to install, aims easily and provides theft deterrence. InvisiBall allows horizontal rotation of up to 41° off-axis and vertical rotation of up to 36° (horn end inward) or 23° (woofer end inward). Attachment points for the optional MTC-30UB (& “-WH” for white) U-bracket allow for compact installation and are particularly useful for low-profile applications.

JBL’s Control 31s have a better low-frequency response and wider coverage than the competitive 12" woofers of Atlas and EV, but those have higher sensitivity due to their larger cone area and cost more.

JBL CONTROL-31 Includes:

  • 1 pc MTC-PC2 input panel cover
  • InvisiBall wall-mounting hardware plus ten 6 mmattachment points for suspension (and optional U-bracket)
  • 6 mm x 305 mm InvisiBall hex wrench
  • Sealed input panel cover and screw-down input terminals for secure connection.

JBL CONTROL-31 Features:

  • Components:
    • 250 mm (10") woven fiberglass cone LF driver with 52 mm (2") voicecoil.
    • High-output 2414H-C compression driver with 25 mm (1") exit, unique (patented) design and high-temperature polymer diaphragm.
  • 250 Watt capability (in 8Ohm thru setting ), plus 150 Watt transformer for 70V or 100V distributed lines, with 8Ohm thru bypass
  • Extended bandwidth, extremely smooth frequency response
  • Highly outdoor-capable design with included WeatherMax™ multi-layer grille and optional marine-kit grille for salt-air environments
  • 110° x 110° symmetrical coverage

JBL CONTROL-31 Specifications:

General

  • Frequency Range (-10 dB): 33Hz – 19kHz
  • Frequency Response (±3 dB): 42Hz – 14kHz
  • Power Ratings:
    • 250 W (1000 W peak), 2 hrs.
    • 200 W (800 W peak), 100 hrs.
  • Maximum SPL @ 1m: 116 dB continuous (123 dB peak)
  • Nominal Sensitivity: 92 dB
  • Coverage Angle: 110° x 110°
  • Directivity Factor (Q): 5.7, averaged 500 Hz to 10kHz
  • Directivity Index (DI): 7.3 dB, averaged 500 Hz to 10kHz
  • Nominal Impedance: 8 ohms
  • Crossover Type: 2nd order low-pass, 2nd order high-pass, plus conjugate shaping circuitry
  • Transformer Taps:
    • 70V:  150W, 75W, 38W, 19W
    • 100V: 150W, 75W, 38W
  • Insertion Loss:  <0.65 dB at any tap setting
  • Thru Setting :  8Ohm nominal
  • Recommended High-Pass: Protective 40 Hz high-pass (24 dB/oct) for any transformer tap and for 8Ohm operation

Transducers

  • Low Frequency:
    • 250 mm (10") woven-fiberglass cone with pure butyl rubber surround, 52 mm (2") voice coil on high- temperature fiberglass voice coil former, optimized cone geometry, linear suspension spider, FEA-optimized
      motor construction, aluminum ring on pole piece.
  • High Frequency:
    • JBL 2414H-C compression driver with 25 mm (1") diaphragm and voice coil diameter, high temperature polymer diaphragm, JBL-patented design, fluid-cooled.

Physical

  • Enclosure Material: High impact Polystyrene (HIPS) with 10% glass fill plus patent-pending internal 5 mm foamed polyurethane secondary mold for additional cabinet density
  • Grille:  Zinc-plated and thermoset-composite coated steel, WeatherMax™ multi-layer foam with tight-weave mesh vapor barrier
  • Installation:
    • InvisiBall wall-mounting system included
    • Ten 6 mm attachment points on cabinet for suspending or for optional U-bracket
    • One 6 mm secondary safety attachment point (for forged shoulder steel eyebolt, NOT included) on back panel.
  • Environmental:
    • IP-55 per IEC529.
    • Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV.
    • Passes MilStd-202F for salt spray.
    • Optional MTC-30MK marine-kit grille increases longevity in highly corrosive environments.
  • Termination:
    • Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers.
    • Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug ), plus bare wire (up to 12 AWG / 2.5 mm2).
  • Agency Rating : Transformer is listed per UL1876
  • Colors: Black (RAL9004) or white (-WH, RAL9003)
  • Dimensions: 593 x 372 x 345 mm (23.3" x 14.6" x 13.5")
  • Weight (ea): 18.8 kg (41.5lb)
  • Shipping Weight (ea): 22.0 kg (48.5 lb)
  • Optional Accessories:
    • MTC-30MK Marine-Kit Grille in black or white (-WH), consisting of grille and protective covers for baffle
      screws.
    • MTC-30CM (&-WH) Ceiling-Mount Adapter for installing speaker down from the ceiling.
    • MTC-30UB (&-WH) U-Bracket
