TMB nanoScope
DMX512 Nanoscope DMX Analyzer

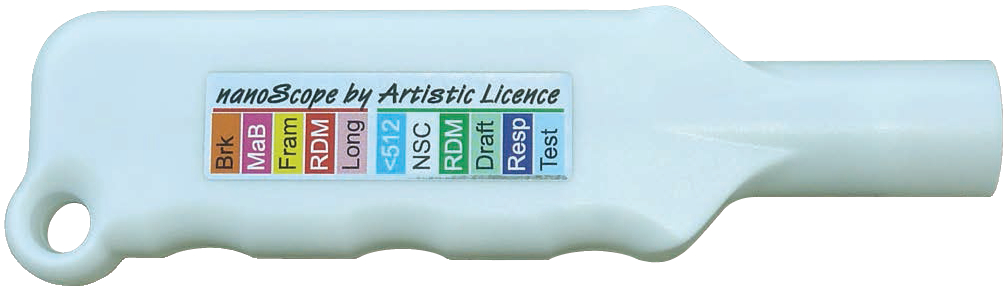

The TMB nanoScope from Artistic License is a DMX512/RDM tester built into an XLR connector.
Learn More
Our Price: $144.00
List Price: $160.00
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


TMB nanoScope
In Stock

Similar Products

The TMB nanoScope from Artistic License is a DMX512/RDM tester built into an XLR connector. It is a small battery-powered tester for DMX512 and RDM that lights up in different colors to let you know what it finds.

There are 2 modes, which you can select by a recessed slide switch which is also the power switch:

  • Pixel Mode: At power on, nanoScope indicates pixel mode is selected with a half-second red flash, then it displays the first 3 DMX channels as an RGB mix. This allows the tool to be used as a pixel mimic to provide confidence that the expected data is on the cable.
  • Analysis Mode: At power on, nanoScope indicates analysis mode is selected with a half-second blue flash. It then displays one long colored "blip" that represents different attributes of the DMX signal, followed by a train of short blips. The long blips will be either green or red to indicate overall good or bad data respectively.

TMB nanoScope by Artistic License Features:

  • Small form factor
  • Color coded display
  • Battery powered
  • Pixel mimic

TMB nanoScope by Artistic License Specifications:

  • Listing: CE FCC
  • IP Rating: Indoor use
  • Signal Connection: XLR5
  • Power Source: 2 x AAA battery
  • Battery Life: Continuous operation: 72 hours; Standby: 380 hours
  • Dimensions: approx. 1.5" H x .79" W x 5.32" D (38 x 20 x 135 mm)
  • Shipping Dimensions: approx. 5.12" x 1.19" x .79" (130 x 30 x 20mm)
  • Net Shipping Weight: approx. 0.06 kg
