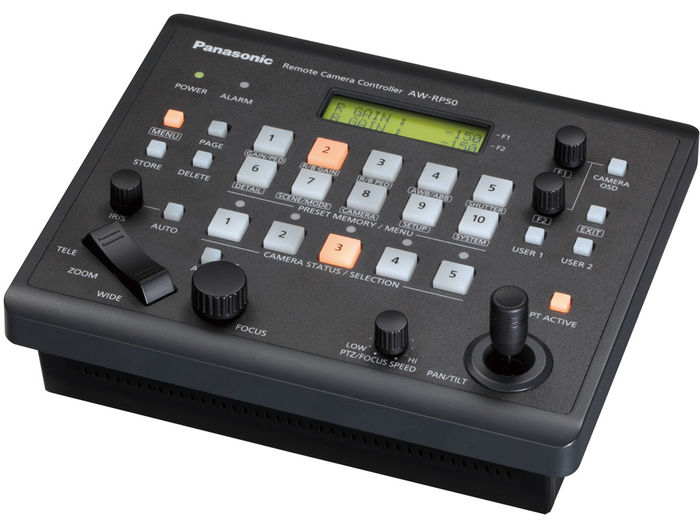

Panasonic AWRP50N
Remote Pan/Tilt Camera Controller

OUR PART #  AWRP50NJ

Our Price: $1,990.00
List Price: $2,275.00
You save 13%!
Usually ships in 7-14 business days.

A remote camera controller unit that can control up to (100) AW-HE50-series cameras using IP, and up to (5) Panasonic cameras and pan-tilt heads via RS-422 serial control, Panasonic's AW-RP50N is capable of accessing up to (100) presets for each Panasonic Integrated PTZ camera (the AW-HE50N and AW-HE100N), and up to (50) presets for other products in Panasonic's AW-series pan-tilt heads.

The AW-RP50N is a half-rack wide, and has a simple, ergonomic design for easy operation in a wide range of applications - including remote production, sports, education, legislative TV, and house of worship use.  In addition to easy, precise pan, tilt, zoom, focus, iris, white balance, black balance, and shutter adjustments, the AWRP50N also provides direct setting of detail, R/B gain, and R/B pedestal adjustments on many cameras for convenient matching of video output.  Camera menu access is also provided for adjustment of other parameters.

The AW-RP50N remote control can also connect to Panasonic's AW-HS50N switcher via IP for synchronized use at a distance or for easy control of both units by a single local operator.  The controller measures 8-1/4" W x 2-5/8" H x 6-15/16" D and weighs just over 2 lbs.

Panasonic AW-RP50N Includes:

  • Panasonic AW-RP50N Unit
  • AC Adapter
  • Power Cable

Panasonic AW-RP50N Specifications:

  • Remote Camera Control:
    • Protocol: IPv4, RS-422 (Panasonic AW series protocol)
    • Connection:
      • Serial: Up to 5 cameras
      • IP: up to 100 cameras
        (Up to 100 when Serial & IP are used together.)
    • Adjustment functions: Pan/Tilt, Zoom, Focus, Iris, Gain, Pedestal, Shutter, Detail, White Balance (Auto, R/B Gain), Black Balance (Auto, R/B Pedestal), Switch scene files
    • Preset Memory: Up to 100 sets
  • Switcher Control:
    • Connection: IP:1
    • Switcher supported: AW-HS50N
    • Linkage: Camera information display, Tally information imported, Bus material selection (AUX/PVW/PinP/KEY-F), Parameter Changes (Pan/Tilt lever, Zoom button)
  • Interface:
    • LAN: 10BASE-T/100BASE-TX (for IP control), RJ45 x 1
    • TO PAN/TILT HEAD: RS-422 (for serial control), RJ45 x 5
    • TALLY/GPI: Tally input x 5 channels, D-sub 15-pin (female x 1)
    • GPI input x 4 channels, D-sub 15-pin (female x 1)
    • GPI output x 4 channels, D-sub 15-pin (female x 1)
  • Operating Temperature: 0° C to +40° C (32 °F to 104 °F)
  • Operating Humidity: 10 % to 90 % (no condensation)
  • Power Supply/Power Consumption: DC12 V ±10 % (AC adapter provided), 0.5 A
  • Dimensions (excluding protrusions): 8-1/4" W x 2-5/8" H x 6-15/16" D (210 mm x 67 mm x 177 mm)
  • Weight: Approx. 2.4 lbs (1.1 kg) (without options)

Note: All specifications and information subject to change without notice.

Panasonic AWRP50N
Remote Pan/Tilt Camera Controller

OUR PART #  AWRP50NJ

Product Information:

A remote camera controller unit that can control up to (100) AW-HE50-series cameras using IP, and up to (5) Panasonic cameras and pan-tilt heads via RS-422 serial control, Panasonic's AW-RP50N is capable of accessing up to (100) presets for each Panasonic Integrated PTZ camera (the AW-HE50N and AW-HE100N), and up to (50) presets for other products in Panasonic's AW-series pan-tilt heads.

The AW-RP50N is a half-rack wide, and has a simple, ergonomic design for easy operation in a wide range of applications - including remote production, sports, education, legislative TV, and house of worship use.  In addition to easy, precise pan, tilt, zoom, focus, iris, white balance, black balance, and shutter adjustments, the AWRP50N also provides direct setting of detail, R/B gain, and R/B pedestal adjustments on many cameras for convenient matching of video output.  Camera menu access is also provided for adjustment of other parameters.

The AW-RP50N remote control can also connect to Panasonic's AW-HS50N switcher via IP for synchronized use at a distance or for easy control of both units by a single local operator.  The controller measures 8-1/4" W x 2-5/8" H x 6-15/16" D and weighs just over 2 lbs.

Panasonic AW-RP50N Includes:

  • Panasonic AW-RP50N Unit
  • AC Adapter
  • Power Cable

Panasonic AW-RP50N Specifications:

  • Remote Camera Control:
    • Protocol: IPv4, RS-422 (Panasonic AW series protocol)
    • Connection:
      • Serial: Up to 5 cameras
      • IP: up to 100 cameras
        (Up to 100 when Serial & IP are used together.)
    • Adjustment functions: Pan/Tilt, Zoom, Focus, Iris, Gain, Pedestal, Shutter, Detail, White Balance (Auto, R/B Gain), Black Balance (Auto, R/B Pedestal), Switch scene files
    • Preset Memory: Up to 100 sets
  • Switcher Control:
    • Connection: IP:1
    • Switcher supported: AW-HS50N
    • Linkage: Camera information display, Tally information imported, Bus material selection (AUX/PVW/PinP/KEY-F), Parameter Changes (Pan/Tilt lever, Zoom button)
  • Interface:
    • LAN: 10BASE-T/100BASE-TX (for IP control), RJ45 x 1
    • TO PAN/TILT HEAD: RS-422 (for serial control), RJ45 x 5
    • TALLY/GPI: Tally input x 5 channels, D-sub 15-pin (female x 1)
    • GPI input x 4 channels, D-sub 15-pin (female x 1)
    • GPI output x 4 channels, D-sub 15-pin (female x 1)
  • Operating Temperature: 0° C to +40° C (32 °F to 104 °F)
  • Operating Humidity: 10 % to 90 % (no condensation)
  • Power Supply/Power Consumption: DC12 V ±10 % (AC adapter provided), 0.5 A
  • Dimensions (excluding protrusions): 8-1/4" W x 2-5/8" H x 6-15/16" D (210 mm x 67 mm x 177 mm)
  • Weight: Approx. 2.4 lbs (1.1 kg) (without options)

Note: All specifications and information subject to change without notice.
