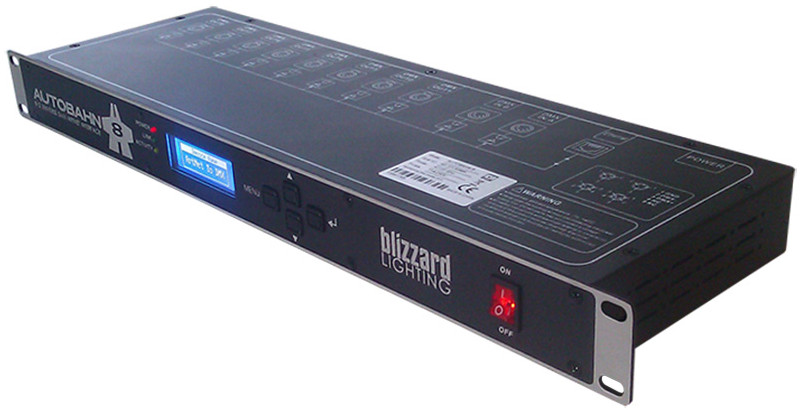

Blizzard Lighting AutoBahn 8
1RU 8-Port DMX to Artnet Rackmount Unit

OUR PART #:  AUTOBAHN-8

The Blizzard Lighting AutoBahn 8 offers fast DMX response and proper network load management across a large amount of DMX channels.
Learn More
Our Price: $599.99
List Price: $799.99
You save 25%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Blizzard Lighting AutoBahn 8
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Blizzard Lighting AutoBahn 8 offers fast DMX response and proper network load management across a large amount of DMX channels. It not only provides instant response, but also a lower network load. The AutoBahn™ 8 will allow you to increase the number of DMX universes and easily place DMX universes remotely on any TCP/IP Ethernet network. It can also be used as a DMX merger, DMX splitter, or backup device.

The AutoBahn™ 8 features one RJ45 Neutrik™ EtherCON® 10/100M Ethernet LAN port with auto MDI/MDI-X (universal cable recognition), which eliminates the need of separate MDI and MDI-X ports, selector switches, or special crossover cables. It also has 2 DMX inputs which can be set as "input" or "disabled" status. You can assign the each input to a specific "Universe" within the range of 0.0 - F.F. When the DMX port is set as "input", the port mode can be set as "normal" or "backup".

In normal mode, the device will send data received from the DMX IN port to the network universe regardless of other data being received. And in backup mode, the device will NOT automatically send any data from this port. This input port will only transmit data to the network universe when the network universe is receiving no other active data input.

All (8) of the photoelectrically isolated DMX outputs can be set to one of the following (4) modes:

  • Zero = The port sends a DMX test signal only with all channels at 0%.
  • Single = Theport sends the DMX values of the selected universe.
  • LTP = (Latest Takes Precedence) Port will output the latest channel activity between 2 selected universes. It compares the principal and secondary universes and sends the latest one to the network.
  • HTP = (Highest Takes Precedence) Like Single, but will merge two DMX universes (principal and secondary). It will compare and output the one with higher value to the network. And like Single and LTP, the universes can be set within the range of 0.0-F.F. There are 5 different quick setup user presets + factory setting restore built into the AutoBahn™ 8 thatwill help you to use the device easily and avoid reconfiguring setup procedures when switching modes. With just a few clicks on the 4-button LCD menu you can set the device up in "2 In 1 Backup Mode", "2 In 1 HTP Mode", "2 In 1 LTP Mode", "DMX Splitter 1-4 Mode", or "Isolated Mode".

Blizzard Lighting AutoBahn 8 Features:

  • ArtNet/DMX bilateral signal conversion
  • 1x RJ45 Neutrik™ EtherCON® Ethernet LAN port, 10/100M, supports TCP/IP protocol
  • 2x DMX inputs and 8x DMX outputs, each photoelectrically isolated
  • Auto MDI/MDI-X ethernet connector
  • Supports standard DMX-512 and ArtNet protocol
  • DMX input/outputs can be set to enabled or disabled
  • Each DMX output can be set to single, zero, HTP, or LTP mode
  • Each DMX input can be set to normal or backup mode
  • DMX splitter/merger functionality
  • Manual IP address settings
  • LCD display indicates each DMX input/output status
  • Ethernet LED status indicator
  • Quick and easy to set user presets

Blizzard Lighting AutoBahn 8 Specifications:

  • Dimensions (WxHxD): 19" x 1.75" x 6.1" (482 x 44 x155 mm)
  • Warranty: 2 years limited
