Livemix Analog Bundle
Eight Mix Bundle for Analog Input

OUR PART #:  LM-ANALOG-SK1

Livemix is a personal monitoring system that’s simple enough for volunteers to use, but deep enough to meet professional demands.
Learn More
Livemix - CBL-CAT6 - Main View
Livemix MT-1 - Main View
Livemix AD-24 - Rear Panel View

Click a thumbnail to see more images. (8 total)

Our Price: $4,199.99
List Price: $5,219.99
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Livemix Analog Bundle
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Livemix is a personal monitoring system that’s simple enough for volunteers to use, but deep enough to meet professional demands. In addition to its amazing, user-friendly features, Livemix lives up to its outstanding value by sounding incredible.

Every Livemix system needs an input, a central mixer/distributor, and at least one personal mixer. To design the system, users select which input they need - either analog or Dante digital – and then select the central mixer, based on how many mixes they need now or in the future, followed by as many personal mixers as they need. Each CS-DUO provides two separate mixes so if you have 8 performers, you only need 4 personal mixers. The two mixes on each personal mixer can be linked to operate as a single mixer if desired.

Lastly, select any needed accessories like the MT-1 mic stand mount, FP-2 hands-free foot pedal, or cables. The Livemix Analog Bundle includes everything you need to get started with 8 mixes. This bundle includes the AD-24 analog input module and 4 CS-DUO dual mix personal mixers for a total of 8 mixes.

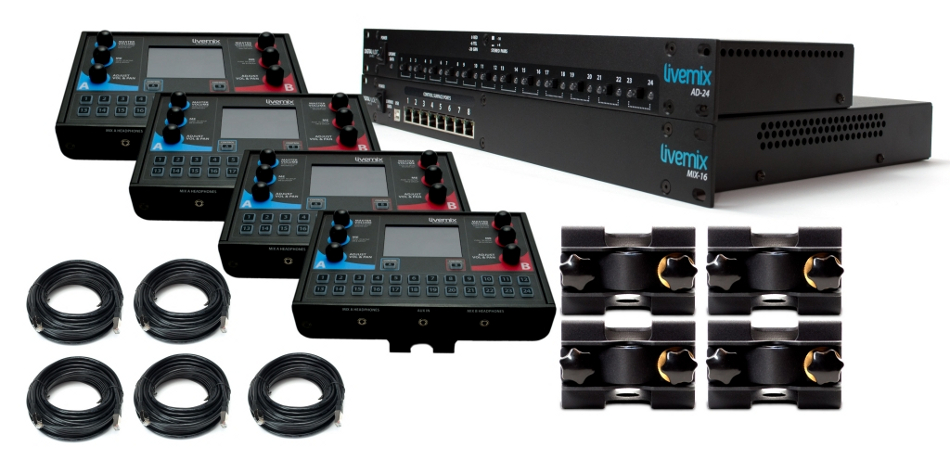

Livemix Analog Bundle Includes:

  • Livemix AD-24 – analog input rack unit
  • Livemix MIX-16 – 16 mix central mixer
  • (4x) Livemix CS-DUOs – dual mix personal mixers
  • (4x) Livemix MT-1 – dual position mic stand mounts
  • (4x) CBL-CAT6-50 – 50' shielded CAT6 cables (connects CS-DUO to MIX-16)
  • (1x) CBL-CAT6-100 – 100' shielded CAT6 cables (connects AD-24 toMIX-16)

Livemix Analog Bundle Features:

Livemix AD-24 Analog Input Rack Unit:

  • 24 balanced/unbalanced inputs
  • ¼” TRS & DB25 audio connections
  • Front panel +4dBu/-10dBV switches
  • Front panel VU metering
  • High quality conversion
  • External power supply

Livemix MIX-16 Central Mixer:

  • 24 channel digital input
  • 24-bit digital mixing & processing
  • Provides power to personal mixers
  • External power supply
  • Expansion bay
  • USB connection to PC

Livemix CS-DUO Dual Mix Personal Mixer:

  • 24 channels
  • Two mixes, one personal mixer for reduced clutter and cost
  • LCD Touchscreen
  • Dedicated ME knob
  • EQ, HPF, & dynamics with presets on every channel
  • MirrorMix™ remote mixing (Hear and Mix remote CS-DUO’s)
  • Built-in ambient microphones
  • Built-in intercom
  • Aux input for media players
  • Metronome
  • 1/8” and 1/4” headphone outs
  • High powered crystal clear headphone amplifier
  • Rugged metal construction

Livemix Analog Bundle Specifications:

Livemix AD-24 (Analog Characteristics):

  • THD+N: .001%
  • S/N Ratio: 111 dB
  • Frequency Response: 20 Hz – 22KHz ± .5dB
  • Crosstalk: -92 dB
  • Maximum Input Level: +24 dBu (minor distortion above 23.5 dBu, hard clip at +24 dBu)
  • Input Impedance: 20KOhm Balanced, 10KOhm Unbalanced
  • Max cable length: 300 feet

Livemix MIX-16:

  • Max Cable Length to CS-DUO: 100 ft. shielded CAT5/CAT6
  • Max Cable Length to AD-24: 300 ft shielded CAT5/CAT6 cable
  • Bit Rate: 24-bit Digital Mixing and Processing
  • Sample Rate: 48 kHz
  • USB Output: 16-bit / 48 kHz
  • Digital Format: Proprietary in system
  • Expansion: Option Card Slot

Livemix CS-DUO:

Output Power & THD+N:

  • @22Ohm
    • 200mW @ 1% THD+N
    • 100mW @ .03% THD +N
  • @32Ohm
    • 250mW @ 1% THD+N
    • 100mW @ .014% THD +N
  • @64Ohm
    • 250mW @ 1% THD+N
    • 100mW @ .005% THD +N
  • @300Ohm
    • 130mW @ 1% THD+N
    • 100mW @ .003% THD +N
  • Frequency Response: 20 Hz – 22 kHz ± 3 dB
  • S/N Ratio: 103 dB
  • Input Impedance (aux in): 7.5 kOhm
  • Crosstalk (Left to Right): -103 dB
  • Max Cable length from Mix16: 100 ft.
  • Filter Q:
    • High Pass & Low Pass: .707
    • Peak/Dip: 1.2
  • Filter Cut/Boot Amount: +/- 6 dB
  • Ambient Mic Gain: 25 dB
