AJA FiDO-4T 4-Channel 3G-SDI to LC Optical Fiber Converter

OUR PART #: FIDO-4T MFR #: FiDO-4T-R0

Copied to clipboard

Offering unmatched flexibility and cost efficiency for SDI-Fiber conversion... ...Read more

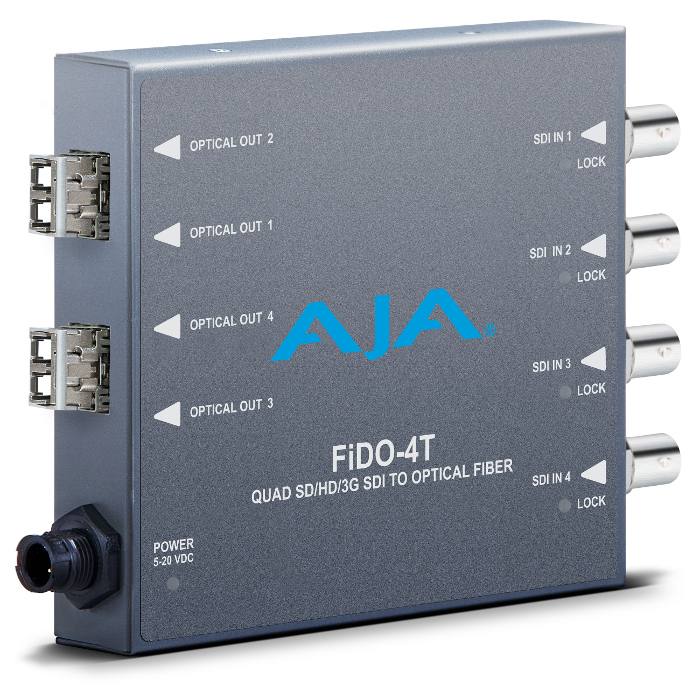

AJA FiDO-4T 4-Channel 3G-SDI To LC Optical Fiber Converter Image 1
AJA FiDO-4T 4-Channel 3G-SDI To LC Optical Fiber Converter Image 2
AJA FiDO-4T 4-Channel 3G-SDI To LC Optical Fiber Converter
Our Price: $1,869.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Offering unmatched flexibility and cost efficiency for SDI-Fiber conversion, AJA's FiDO-4T allows long cable runs up to 32,808 ft (10 km) with electrical isolation - useful for eliminating ground loop problems. FiDO is a family of SDI/Optical Fiber converters offering the transport of video streams across large distances. The FiDO-4T offers 4 x 3G-SDI inputs with a 4 simplex or two duplex output connection through LC connectors. This allows 4 independent channels of 3G-SDI, HD-SDI or SDI as well as 4K SDI over 4 fiber links.

FiDO converters meet all relevant SMPTE specifications and are rugged, versatile, and suitable for indoor or outdoor use and come in a compact, low-profile enclosure for use in tight spaces around and behind equipment racks, trucks and crowded facilities.

Features

  • Compact and Portable
  • 4 simplex or 2 duplex input connections (LC connector)
  • 4 independent channels of SDI, HD-SDI, or 3G SDI
  • 4K SDI over 4 fiber links
  • Uses 5-20VDC power (DWP-U-R1 universal power supply included)
  • 5-year warranty

Specifications

  • Video Format: 150 Mbps - 3 Gbps, format agnostic
  • Video Input Digital: 4-Channel independent 3G-SDI BNC Inputs, SMPTE-259/292/424
  • Video Output Digital:
    • 4-Channel independent Single Mode LC Fiber Outputs, SMPTE-297
    • Nominal Wavelength: 1310 nm
    • Optical Power: -5dBm (min), 0dBm (max)
    • Extinction Ratio: 7.5dB (Typ)
  • Reclocking:
    • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
    • All other rates are passed through and not reclocked
  • Size (w x d x h): 4.6" x 4.02" x 0.85" (117 x 102.11 x 21.6mm)
  • Weight: 0.8 lb (0.4 kg)
  • Power:
    • 5 watts max
    • Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)
  • Environment:
    • Safe Operating Temperature: 32 to 104 F (0 to 40 C)
    • Safe Storage Temperature (Power OFF): -40 to 140 F (-40 to 60 C)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: < 10,000 feet (< 3,000 meters)

NOTE

Requires Power Supply (AJA power supply model DWP-U-R1 included)
