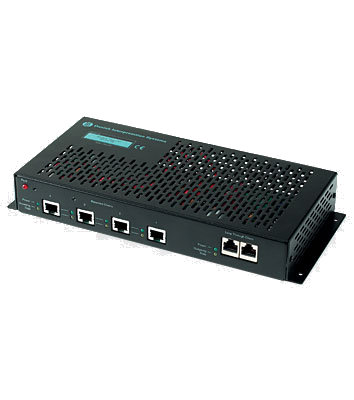

Shure RP6004
Repeater,1x4 for DCS-LAN Network

OUR PART #  RP6004

Our Price: $902.00
List Price: $1,128.00
You save 20%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Shure RP 6004 Repeater unit splits one DCS-LAN chain into four chains. The signal is regenerated to extend the maximum cable length. This unit is designed to Work with DDS 5900 and DCS 6000 Systems.

Shure RP 6004 Repeater Features:

  • Repeater for providing repeater and splitter functions
  • Four outputs for connection to conference units, interpreter sets, etc.
  • Delayed switching on of power to the four chains to minimize the total "switch-on" current on the main switch
  • Designed in compact cabinet for easy installation remotely
  • Loop through connectors for connecting additional RP 6004 or other units, which are part of the DCS 6000 system
  • Optional 19" brackets

Shure RP 6004 Repeater Specifications:

  • General:
    • Power Consumption: max. 10W
    • Temperature to guarantee specified performance: 5°C to 40°C (35 to 80% humidity)
    • Storage Temperature: -20°C to 60°C (10 to 80% humidity)
    • Weight: 1 kg
  • Connectors:
    • DCS-LAN loop through: 2 pieces RJ45
    • DCS-LAN repeated output: 4 pieces RJ45

Shure RP6004
Repeater,1x4 for DCS-LAN Network

OUR PART #  RP6004

Product Information:

The Shure RP 6004 Repeater unit splits one DCS-LAN chain into four chains. The signal is regenerated to extend the maximum cable length. This unit is designed to Work with DDS 5900 and DCS 6000 Systems.

Shure RP 6004 Repeater Features:

  • Repeater for providing repeater and splitter functions
  • Four outputs for connection to conference units, interpreter sets, etc.
  • Delayed switching on of power to the four chains to minimize the total "switch-on" current on the main switch
  • Designed in compact cabinet for easy installation remotely
  • Loop through connectors for connecting additional RP 6004 or other units, which are part of the DCS 6000 system
  • Optional 19" brackets

Shure RP 6004 Repeater Specifications:

  • General:
    • Power Consumption: max. 10W
    • Temperature to guarantee specified performance: 5°C to 40°C (35 to 80% humidity)
    • Storage Temperature: -20°C to 60°C (10 to 80% humidity)
    • Weight: 1 kg
  • Connectors:
    • DCS-LAN loop through: 2 pieces RJ45
    • DCS-LAN repeated output: 4 pieces RJ45
