ETC/Elec Theatre Controls Eos Programming Wing
Hardware Programming Console

OUR PART #:  EOS-PGW

The ETC Eos® Programming Wing gives you the surface you want when you're working with ETCnomad™, ETCnomad Puck™, Net3 RVIs (Net3 Remote Video Interfaces)...
Learn More

Call for price! Not available online.
List Price: $5,500.00

Similar Products

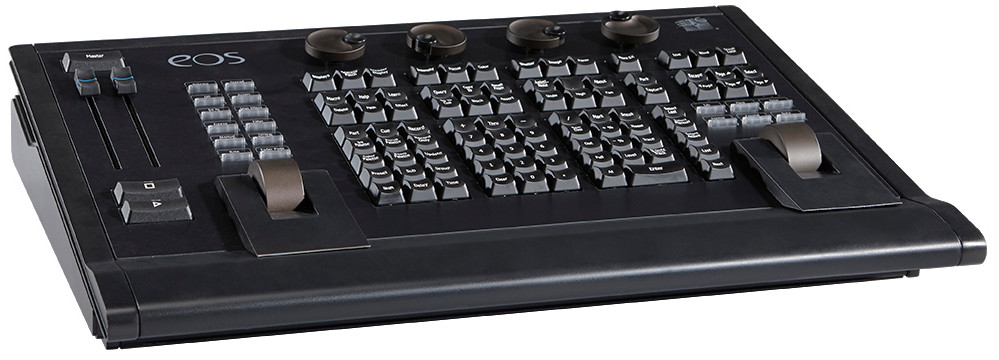

The ETC Eos® Programming Wing gives you the surface you want when you're working with ETCnomad™, ETCnomad Puck™, Net3 RVIs (Net3 Remote Video Interfaces), or RPUs (Remote Processor Units). It provides a physical control surface and has DMX512-A/RDM and MIDI In/Out outputs. The wing is familiar, using the same layout as your Gio® desk, so you can set it up and work immediately with little to no disruption of your programming workflow. It contains playback and fader controls, parameter encoders, plus level and rate controls.

The Eos Programming Wing is compact enough for you to relocate from room to room in a theater or to take on tour, giving you the freedom of mobile programming and no missing out on control features.

ETC Eos Programming Wing Includes:

  • Eos Programming Wing Unit
  • Power supply
  • IEC power cord
  • Dust cover
  • USB cord

ETC Eos Programming Wing Features:

  • Compatible with ETCnomad and ETCnomad Puck mini controllers, Ion® and Eos RPUs, RVI and RVI3*
  • Full main playback controls, fader controls, level and rate wheels
  • Complete backlit programming facepanel from Gio
  • Four rotary parameter encoders with toggle controls
  • Two DMX512-A/RDM outputs, MIDI In/Out, Remote Trigger and Worklight connections
  • Ships with required external power supply. The wing will not function when connected by USB alone
  • Backlit keys
  • Master Fader Pair
  • Two DMX512/RDM ports
  • MIDI In/Out
  • Contact Closure Trigger
  • Two Powered USB ports for connectivity
  • One USB port to store and secure an ETCnomad Dongle, One Littlite connection
  • VESA 100x100mm mountable
  • Provides a Kensington Lock compatible locking point

RPUs and RVIs must be Windows 7-based to use with the Programming Wing. They are not compatible with Windows XP devices. To support the programming wing, ETCnomad must be used on a PC with Windows 7 or higher, or a Mac with OSX Mavericks or higher. The Eos Programming wing cannot be used with any Eos family control device with a dedicated facepanel.

ETC Eos Programming Wing Specifications:

Manufacturer Part Code: Eos PGW

Interfaces

  • AC Input (100 - 240 VAC at 50/60Hz) with external power supply
  • Two DMX512/RDM ports
  • Three USB ports
  • MIDI In/Out
  • Contact Closure Trigger

Physical

  • Dimensions: 4.04" H x 19.55" W x 14.24" D (103 x 497 x 362mm)
  • Weight: 10 lbs (4.5 kg)
  • Shipping Weight: 16 lbs (7.3 kg)
