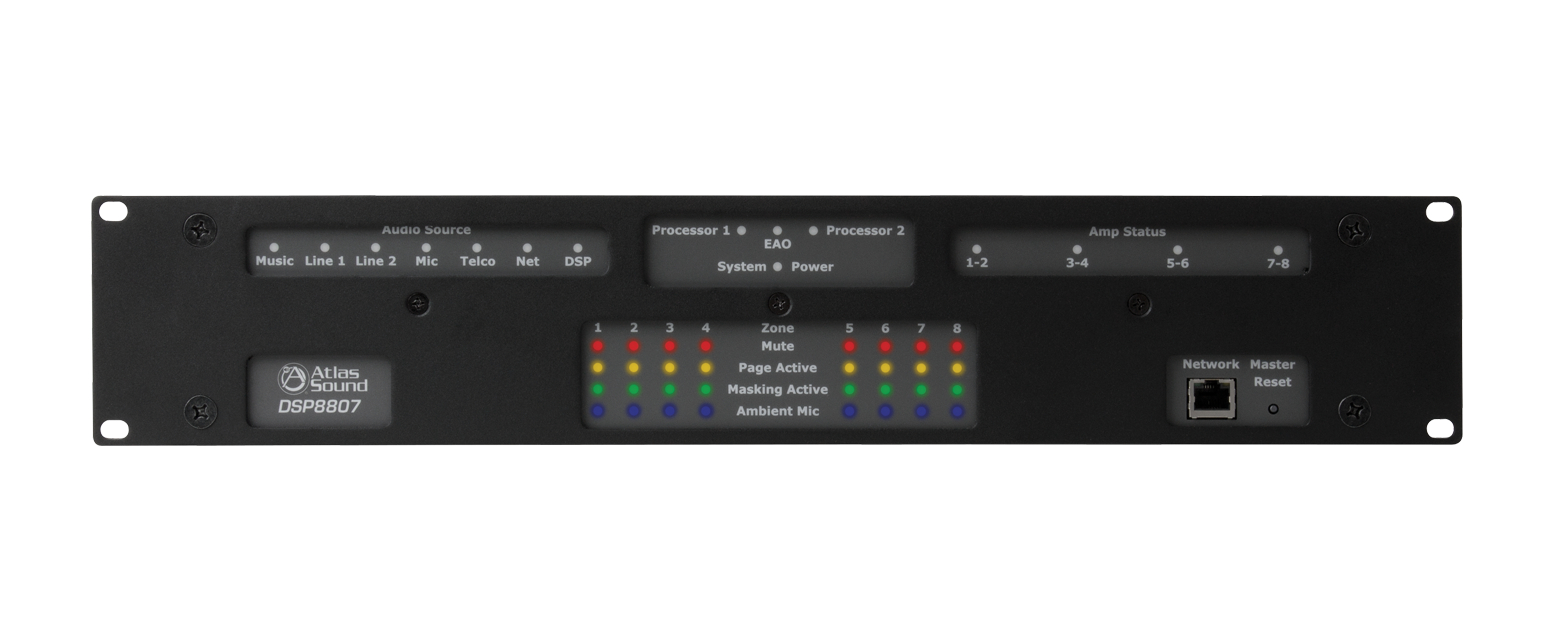

Atlas IED DSP8807 Self Contained, Multi-Zone Digital Controlled Networkable Sound Masking Processor and 8-Channel Amplifier

The Atlas Sound DSP8807 unit is capable of automatic mixing, set up and administration of all 8x8 inputs / outputs per zone (channel) via an intuitive ‘simple to use' Graphic User Interface (GUI) managed via a local Windows® based laptop or desktop computer. The DSP8807 has 8 channels of independent on-board digital class-D amplifiers that are capable of delivering 50W RMS at 70.7V output. Additionally a simultaneous audio line level output rated at 1V/600-Ohm (nominal) per zone is available for driving higher power amplifiers. The DSP8807 also has two independent uncorrelated pink noise generators which are random and non-repeating up to 215 hours with EQ adjustments programmable on a per zone basis.

The DSP8807 provides dynamic control and management based on IEEE802.1 AVB standards (Audio-Video Bridging) with independent 1/3 Octave (28) band EQ *(Filter type is Butterworth @ 19dB and Linkwitz-Riley at 24dB) and Parametric EQ for calibration of all PA, ambient level sensing and automatic level control on a per zone basis. The volume control for paging in each zone can be individually controlled in 1dB increments from 15dB to -65dB.

The DSP8807 GUI is called the ‘Sound Media Interface'. The software has the ability to expand up to (253) systems with 2,048 zones with primary and secondary assignment in a zone paging dialing plan. It also provides the ability to set up "All zone" page, "Group zone" page (up to 32 groups) and "Single zone" page with an architectural dialing plan (2-digit DTMF) set up in the GUI. Each DSP8807 is capable of managing remote ambient level sensing microphones (ALM-1) for each zone (x8) wired via a single CAT5e cable up to 1,000 feet from the DSP8807 for automatic adjustment of the masking level based on real time noise levels with set up and control via the GUI.

The Atlas Sound DSP8807 is a self-amplified, sound masking controller with extensive digital signal processing (DSP) and telephony interface capabilities. All aspects of signal routing, processing and prioritization are administered through an intuitive Graphic User Interface (GUI) managed via a local Windows® based laptop or desktop computer. The software has the ability to expand up to (253) systems with over 2,000 zones (2,048) with primary and secondary assignment in a zone paging dialing plan. It also provides the ability to set up “All zone” page, “Group zone“ page (up to 32 groups) and “Single zone“ page with an architectural dialing plan (2-digit DTMF) set up in the GUI. AVB (Audio Video Bridge) audio networking allows distribution of paging, BGM and line level inputs between multiple DSP8807 and/or DSP2212 units across TCP/IP data networks.

Atlas Sound DSP8807 Features:

• 8 Channels of Random Pink Noise Generator Non-Repeating Up to 215 Hours
• 8 Audio Outputs of 50 Watts RMS Digital Class-D Amplification at 85% Efficiency
• 8 Audio Line Outputs at 1V/600Ohms (Nominal) for Unlimited Power Per Zone
• IEEE802.1 AVB (Audio Video Bridging) Technology for Time Aligned Networking of Multiple Units
• AVB Operation Allows IP Based Paging Via Ethernet Connection
• Telco Paging Input (Loop Start) With 2 to 5 Digit DTMF (Touch Tone) Dial Plan Defined In GUI
• 8 Ambient Sensing Microphone Inputs (RJ45) for Automatic Level Sensing (6dB) and Control
• Multiple Audio Source Inputs for Background Music, and Paging
• Zone Expansion from 1 to 2,048 Via Standard CAT5e – CAT6 Cabling (Up to 253 Systems)
• UL / CUL / FCC and CB (International) Listed
• User Friendly GUI and Easy Network Setup
• Built-In Amplification for Each Output (50W @ 70.7V x 8)
• Front Panel Visual Status LEDs for All I/O
• Non repeating Pink Noise Sources
• Parametric EQ for All Paging/Line Sources
• Ambient Sensing Microphones for Automatic System Adjustment (optional)

Atlas Sound DSP8807 Specifications:

• Height: 3.5" (88.9mm)
• Width: 19" (482.6mm)
• Depth: 14" (358mm)
