Atlas Sound MYNA1-2
Atlas Learn Single MYNA Wireless Mic and Dual IR Dome Kit

OUR PART #:  MYNA1-2

The Atlas Learn MYNA1-2 complete kit is the ideal solution for larger classrooms or boardrooms.
Learn More
Our Price: $975.99
List Price: $1,218.99
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound MYNA1-2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

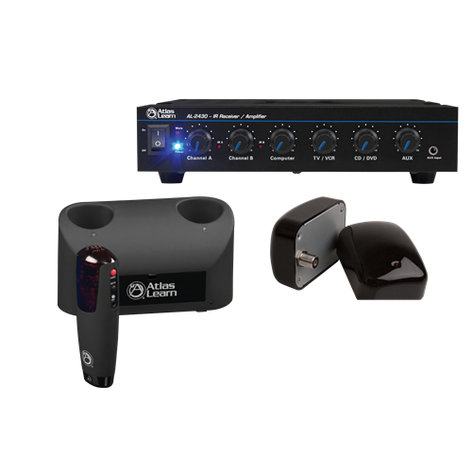

The Atlas Learn MYNA1-2 complete kit is the ideal solution for larger classrooms or boardrooms. The kit includes one (1) AL2430 amplifier/receiver, one (1) AL-MYNA wireless microphone, one (1) AL-MYNA-NEST charging station, two (2) AL-IRDS infrared dome transmitters, and twenty (20) meters of coaxial cable to connect the AL-IRDS with the AL2430 receiver/amplifier. This kit allows access to all benefits of the Atlas Learn system without paying for unneeded parts or accessories.

The MYNA1-2 system’s versatile AL2430 receiver/amplifier coordinates all Atlas Learn functions in a compact, easy to use control center. Front panel volume controls are provided for two microphones (A and B), as well as four other external audio sources like Computer, TV, CD, or Auxiliary audio. The rear panel includes all connections and adjustments needed to maximize performance in any size classroom.

Inputs are provided for up to three infrared (IR) domes, which receive signals from the wireless microphones and transmit them back to the amplifier / receiver via UL Listed coaxial cable. Three bands of equalization are provided to help eliminate feedback and optimize sound quality, a priority page input allows local audio to be overridden when a page is initiated from external bell or intercom systems and a line output is included for connection to an external amplifier, recording device, or hearing assistance system. “Panic” contact closure may be triggered from any AL system IR microphone transmitter and is easily integrated with Atlas ControlKom 2.0 hardware & software (sold separately) to provide instant dial out to office or security personnel phones in the event of a classroom emergency.

The AL2430 includes Atlas Sound’s through chassis design, which allows the unit to be pole mounted above the projector for security concerns. Optional mounting kits are also available for rack installation, or the system can be shelf- or desk-mounted with no additional hardware.

The AL-MYNA-NEST is the remote charging/docking station for the AL-MYNA wireless infrared microphone. This charging station is capable of charging the NiMH batteries of two MYNA wireless microphones at once and features a removable panel that covers a charging bay for 4 additional rechargeable NiMH batteries The AL-MYNA, a wireless IR classroom microphone, comes with integrated soft touch controls (including power, volume and panic), an integrated belt clip, and a breakaway lanyard with ID clip and rechargeable batteries.

The unit’s two AL-IRDS Infrared Dome Sensors are advantageous because they don’t operate on frequencies that can be disrupted by wireless Internet routers, cordless phones, or other devices. In addition, infrared eliminates the possibility of cross talk between two adjoining rooms as the IR dome(s) in each room receive only the signal from microphones used in their proximity.

Atlas Sound offers a full line of compatible in-ceiling and surface mount speakers that can be used with an Atlas Learn system, as well as optional headset, collar or lapel microphones.

Atlas Sound MYNA1-2 Features:

  • AL2430 6 Input Mixer with Priority Page Override
  • Front Panel Source Volume Control Operates Using 2 AA Rechargeable Batteries
  • Dual Mode Operation
  • Supports Up to Three Infrared Wireless Microphone Transmitters
  • AL-MYNA Wireless Infrared Microphone Transmitter
  • Integrated "Panic" Trigger for Emergency Notification
  • AL-IRDS Includes 10m Coaxial Cable for Connection to AL2430
  • 3.5mm Input for Optional Headset, Collar, or Lapel Microphone

Atlas Sound MYNA1-2 Specifications:

  • AL2430 Receiver/Amplifier
    • Amp Controls:
      • Front Panel: Channel A, Channel B, Computer, TV/VCR, CD/DVD, AUX
      • Rear Panel: Three Band Mic EQ, Priority Page Gain, Priority Page Sensitivity
    • Multimedia Input Connector Type: 4 Stereo Summing RCAs
    • Multimedia Input Sensitivity: -10dBm**
    • Priority Page Input Connector Type: Two Pole Phoenix Connector
    • Priority Page Input Sensitivity: 14dBm**
    • Computer Input Impedance: 56KOhms
    • Multimedia Input Impedance: 22kOhms
    • AUX4 Front Input Connector Type: 3.5mm
    • Line Output Impedance: 1kOhm
    • Line Output Voltage: 1.3V
    • Line Output Connector Type: Dual RCA
    • Mic EQ Adjustment: ±10dB (100Hz, 3kHz, & 10kHz)
    • IR Input Impedance: 75Ohms
    • IR Connector Type: F Connectors (x3)
    • Panic Output Connector Type: Two Pole Phoenix Connector
    • Panic Output Contact Rating: 5A@36V
    • Speaker Connector Type: Four Pole Phoenix Connector
    • Speaker  Output: 30W RMS @ 8Ohms, 25V, or 70.7V
    • In Line PSU Type: 100V–240V Input, 24VDC / 2.5A Output
    • Frequency Response: 40Hz – 15kHz (±3dB)
    • Signal to Noise Ratio: 75dB
    • Height: 1¾" (45mm)
    • Width: 8½(216mm)
    • Depth: 13½" (343mm)
    • Weight: 5.75 lbs. (2.6kg)
    • Optional Rack Mount Kit: PA702-RMK
  • AL-MYNA Pendant Handheld Transmitter / Wireless Microphone
    • IR LEDs: 6
    • Aux Input: 1, 3.5mm Phono Jack, Mic Level
    • External Controls: Power, Panic, Mic Volume
    • Internal Controls: Lockout, Mic A/B Channel
    • Indicator LED’s: Mode (2 Blue), Lockout (1Red), PWR/BATT (1 Green/ Red)
    • Dimensions: 5.25" x 1.75" x 1.15" (133mm x 44mm x 29mm)
    • Weight With Battery: 4.23oz (120g)
    • Weight Without Battery: 2.1oz (60g)
  • AL-MYNA-NEST Charging Station
    • AL-MYNA Ports: Two Charging Ports
    • Charge Indicator LEDs: 4 (Red-Charging, Green-Charged)
    • PSU Type: 120V Input, 9VDC, 1A Output
    • Dimensions: 4.17" x 7.44" x 2.75" (106mm x 189mm x 70mm)
  • AL-IRDS IR Receiver Dome
    • Receiver LEDs: 6
    • Mounting: Screw Type
    • Cable:
      • 32.8' (10m) UL Listed, “F” Style
      • Termination, RG6 Type
    • Receiving  Distance: 150' – Line of Sight (Depending on Ambient Light)
    • Receiving Angle: 120°
    • Typical Coverage Area Recommended for System with (2) AL-IRDS Receiver Domes: 2,000 ft (squared)
