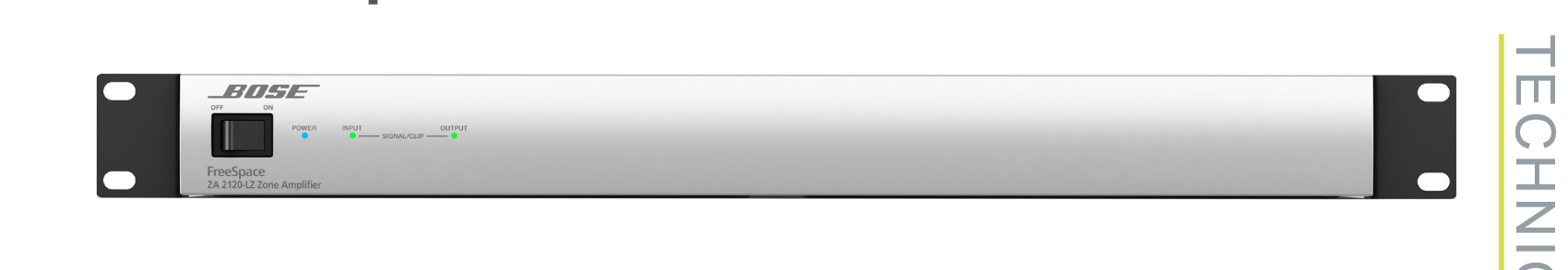

Bose ZA 2120-LZ
Freespace Zone Amplifier, 2x120W, 4/8 Ohm

OUR PART #:  ZA-2120-LZ

Our Price: $493.23
List Price: $810.00
You save 39%!
Write the first review.
Bose ZA 2120-LZ
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Bose FreeSpace® ZA 2120-LZ is a 1-input/2-output zone amplifier designed to provide sound system expansion when using front-end Bose products like FreeSpace® integrated zone amplifiers and ControlSpace® engineered sound processors. ZA zone amplifiers offer excellent sound quality from a 2 x 120W Class-D amplifier, and when connected to an IZA integrated zone amplifier, the ZA zone amplifier allows for easy system expansion.

This amplifier – along with the ZA 2120-HZ – is optimized for low-impedance applications like retail stores, restaurants, conference centers and schools, and offers expansion-ready connectivity with FreeSpace® IZA amplifiers when additional sources and loudspeaker processing is required. Chained amplifiers will function together as a single expanded system to share the same music, paging sources, master volume control and optional loudspeaker equalization. Each ZA zone amplifier comes in a compact, lightweight design for easy installation in a range of locations, and includes remote options for muting and volume controls, thus eliminating the need for bulky and inefficient in-line volume controls.

An intuitive feature setup enables the amplifier to be configured without a PC for output and an Auto-Standby feature protects the amplifier from heat overload, output shorting and low/high AC line voltage, and the unit supports a volume control user interface.

Bose FreeSpace® ZA 2120-LZ Includes:

  • RCA cable for easy zone expansion

Bose FreeSpace® ZA 2120-LZ Features:

  • 1-input/2-output amplifier
  • 2 x 120 watts (4 Ohm); 2 x 60 watts (8 Ohm)
  • Supports volume control user interface
  • Mono/stereo operation
  • Universal power supply handles 100V AC – 240V AC(±10%, 50/60 Hz)
  • Protection from heat overload, output shorting and low/high AC line voltage

Bose FreeSpace® ZA 2120-LZ Specifications:

  • THD+N: = 0.5 % (at full power)
  • Input/Output:
    • Line In:
      • (1) balanced 5-pin Euroblock
      • (1) dual RCA
    • Output Channels, Power:
      • 2 x 120W @ 4 Ohm
      • 2 x 60W @ 8 Ohm
  • Frequency Response: 20 Hz - 20 kHz (+0/–3 dB, @1W reference 1 kHz)
  • Dynamic Range: 88 dB
  • Input Channels: 1 unbalanced, 1 balanced
  • Dimensions: 1.7" H x 19.0" W x 12.8" D (44 mm H x 483mm W x 324 mm D)
  • Net Weight: 8.5 lbs. (3.9 kg)
  • Cooling System: Single fan, continuous left-to-right air flow
