Inter-M Americas D-3000 3000W Power Amp w/ Dante Connectivity, DSP

OUR PART #: D-3000

Copied to clipboard

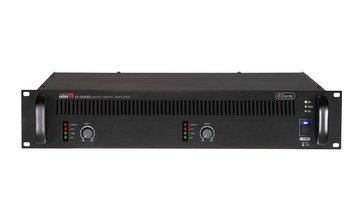

Inter-M Americas D-3000 3000W Power Amp W/ Dante Connectivity, DSP Image 1
Inter-M Americas D-3000 3000W Power Amp W/ Dante Connectivity, DSP Image 2
Inter-M Americas D-3000 3000W Power Amp W/ Dante Connectivity, DSP
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Inter-M D-3000 is a high power professional amplifier meant for sound reinforcement that incorporates a Digital Signal Processor (DSP) and Audinates’s Dante™ digital audio network. The D-3000 will deliver up to 3000 watts of power per channel down to 2 ohm loads, and it’s housed in two RU compact frameworks that offer high power with reduced size and weight. The combination Class D amplification circuitry combined with SMPS (Switch Mode Power Supplies) creates a high efficiency amplifier with reduced power consumption and low heat dissipation.

Only 2 rack units in size, this Class D audio amplifier is efficiently compact and powerful, with ECO Digital design that offers more than 90% power efficiency and lower heat dissipation over traditional analog amplifiers with lower efficiency and greater noise. This makes for an amplifier that needs less input power to produce very high output power. The D-3000 is ideal for multi-zone applications where high power and a large quantity of long-line speaker installation is required - including airports, arenas, shopping malls and stadiums.

Audinate’s Dante is an uncompressed, multi-channel digital media networking technology, with near-zero latency and robust synchronization, and is the preferred audio networking solution of pro-audio AV manufacturers. It transmits 48 kHz, 24-bit high quality digital audio in real time through standard TCP/IP network protocol. The Inter-M D-3000 series is compatible with hundreds of other Dante-enabled products worldwide - a testament to the importance of inter-brand operability – and this enables consumers to mix devices from multiple manufacturers by simply connecting an RJ-45 UTP network cable. Dante also delivers I/O scalability and installation simplicity via standard IT technology.

The D-3000 series comes with a real-time digital signal processor and signal processing functions that include EQ, dynamics, and delay. Thus, there is no need for separate external processors. The unit’s delay circuit is used to synchronize multiple speakers in a room with regard to a listening point – such as minimizing multipath reverberant sound – and can compensate for up to 17 meters or 50ms. This distributes the sound evenly to ensure high quality sound for the entire audience, and gives the illusion of a single sound source.

Some of the available DSP features include: 5 band Parametric, variable Q Equalizers (P-EQ), High Pass and Low Pass Filters, Limiter and Delay, and Input and Gain Control. DSP and channel mapping functions for D-3000 series amplifier are configurable by an HTML 5 web-browser interface. The web-browser interface will allow you to setup and configure the Network Settings, Security, Date/Time, 31 band variable Q Graphic Equalizer, High Pass and Low Pass Filters, Limiter and Delay, Input and Gain Control, Firmware Update, Maintenance, and Log Files. Through the web-browser interface, users can select the desired channel to broadcast.

The channel mapping feature allows the matrixing of 8 digital inputs with the 2 local analog inputs, and the amp’s input level can be bypassed for full volume or muted. Lastly, the D-3000 series amplifier offers hi-definition sound with better S/N and THD than any other Class D power amplifier on the market.

Inter-M D-3000 Power Amp Features:

  • DANTE Digital Network Audio
  • High Power CLASS-D Amplifier
  • Compact 2U rack size
  • Compact and lightweight form factor
  • High efficiency SMPS (Switching-Mode Power Supply)
  • Web browser control panel
  • 5 band variable Q Equalizer (PEQ)
  • High Pass, & Low Pass Filters
  • Shelving EQ
  • Limiter and Delay
  • Input and Gain Control
  • Balanced input XLR connection
  • Low power consumption, low heat dissipation and light weight
  • THD less than 0.02%
  • S/N. greater than 103dB
  • Protection circuitry (over heat, over current, speaker short, DC protection)
  • LED status indicator (-30dB, -10dB signal level, signal clip, protection, AC, DC, Standby, power)

Inter-M D-3000 Power Amp Specifications:

  • Output Power:
    • 8Ohm: 600W x 2Ch
    • 4Ohm: 1200W x 2Ch
    • 2Ohm: 1500W x 2Ch
  • Input Sensitivity: 1V/10kOhm
  • T.H.D. (AES17): Less than 0.02%
  • Signal to Noise (20kHz LPF): 103 dB
  • Frequency Response (1W, ±3dB): 20Hz – 20kHz
  • Operating Temperature: -10°C ~ 40°C
  • Operating Power: AC 220-240V 50/60Hz
  • Power Consumption (1/8 Power): 250W
  • Weight (SET): 8.1kg
  • Dimensions (SET): 482(W) x 88(H) x 450 (D) mm
