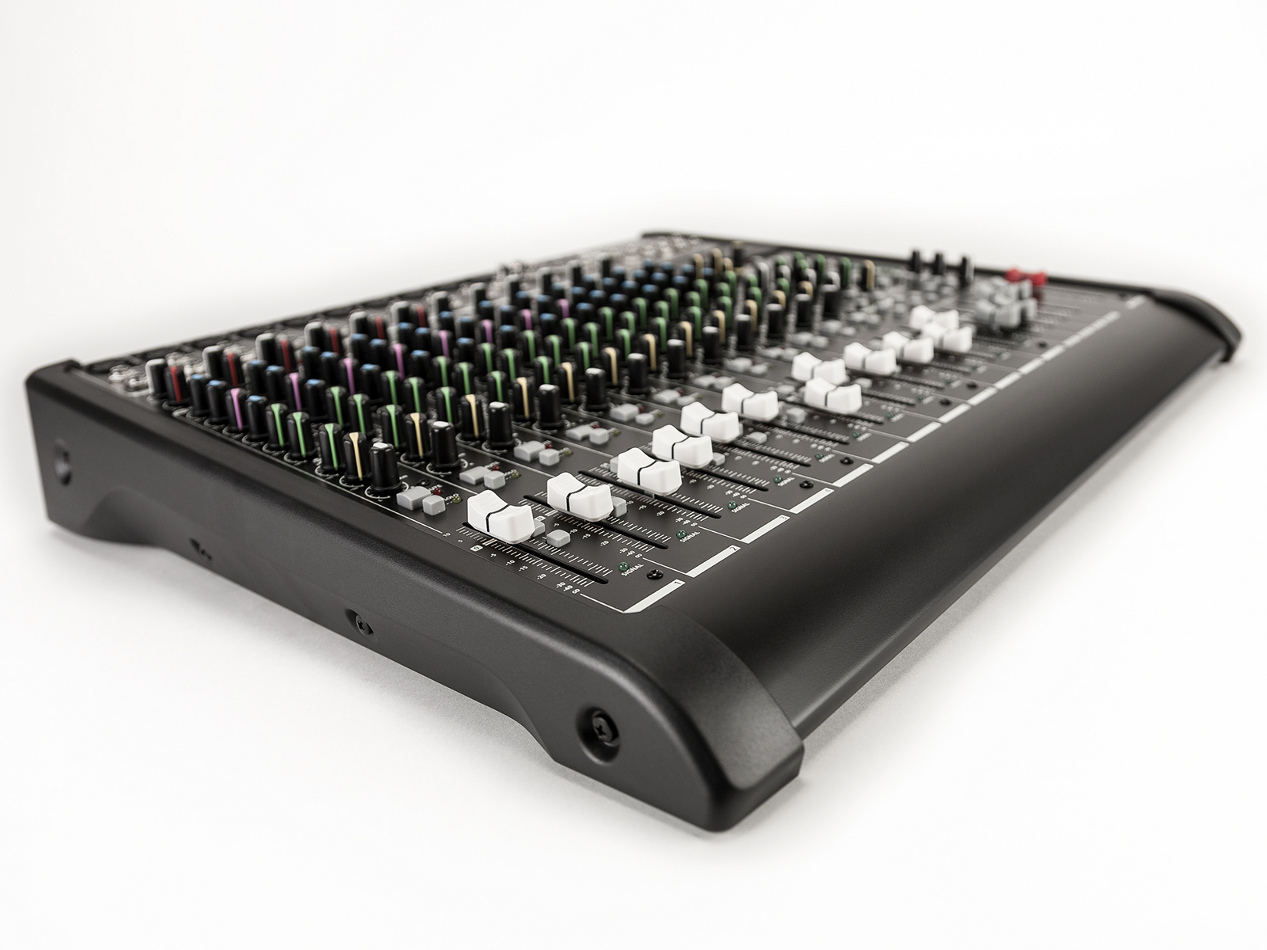

RCF L-PAD 16CX USB
16 Channel Mixing Console with Effects

OUR PART #  LIVEPAD-16CX-USB

Our Price: $569.00
List Price: $799.00
You save 29%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

RCF’s L-PAD 16CX USB is a 16-channel, 4-bus mixer with 10 Mic/Line, 4 Stereo Input, 4 Group out, EQ, 6 single-control compressors and internal effects, for any live sound reinforcement – including bands and conferences.

The L-PAD 16CX USB features 10 transparent sound ultra-low noise microphone inputs with balanced XLR connector, or alternatively 8 mono line input with insert send/return, a three-band EQ with a wide sweepable midrange (100Hz – 8kHz) on 8 channels, 4 channels of stereo inputs with 4-band fixed EQs, and 4-group assignable sub mixes, 60mm long-live extra smooth faders and four AUX sends per channel (2 Pre/Post switchable pots).

This console is compatible with all audio devices, and is highlighted by its single control compressors (eight on the larger desk’s mic line inputs and six on the smaller), with a preset selector that provides access to up to 100 internal DSP internal effects to shape the sound.
The mixer’s bonus for gigging musicians and semi-pro bands is the ability to capture their live mix with their laptop and DAW software, via the L-PAD’s USB connection. Users can choose from several option cards that expand the L-PAD’s versatility and provide access to any third party Bluetooth device.

USB allows two channels of 16-bit audio (Main Mix or Sub Mix 1/2) that can be streamed out to the computer - enabling band rehearsals, club gigs, speech, worship events and more to be recorded. Since the connection is bi-directional, audio from the laptop can also be sent to the L-PAD mixer for playback purposes.

RCF L-PAD 16CX USB Features:

  • 10 MIC/LINE inputs, 4 STEREO inputs
  • 6 single-control dynamic compressors (Ch. 1-Ch. 8)
  • 4 STEREO AUX returns
  • 3-band EQ with sweepable MID Frequency on microphone channels
  • 4-band fixed EQ on stereo line channels
  • 4 AUX sends per channel: 2 PRE/POST faders switchable
  • 4-GROUP MIX
  • 24-bit DSP effects for 99 presets
  • USB port for PC audio recording and playback

RCF L-PAD 16CX USB Specifications:

  • Frequency Response: 20Hz ÷ 20kHz
  • Total Harmonic Distortion (THD+N): 0,03%%
  • Inputs:
    • Mic: 10
    • Gain range: 0dB ÷ -50dB
    • Low Cut: 75Hz
    • Phantom Power +48V: Yes
    • Mono Line: 8
    • Gain range: 20dB ÷ -30dB
    • Stereo Line: 4
    • 2 Track: Yes
    • Stereo Return: 4
  • Outputs:
    • Main MIX: 1
    • Control Room: 1
    • AUX Send: 4
    • FX Send: 1
    • Group Out: 4
    • Phones: 2
    • 2 Track: Yes
  • Compressors:
    • Single Control: 6
  • EQ:
    • BANDS on MONO channels: 3
      • Sweepable mid frequency 100Hz-8kHz
    • BANDS on STEREO channels:
      • +/-15dB @ 12kHz - Shelving
      • +/-15dB @ 3kHz
      • +/-15dB @ 500Hz
      • +/-15dB @ 80Hz - Shelving
  • Auxiliary Sends:
    • AUX: 2 PRE/POST
    • AUX: 1 + 1 FX POST
    • FX: 1 POST
  • Internal Effects:
    • Height: 99
  • USB Audio:
    • Play trk: 2
    • Rec trk: 2
  • Other Features:
    • Optional Card Slot: Yes
    • Footswitch: Yes
  • Electrical Specifications:
    • Power supply: Internal
    • Power requirements: 100-240V
    • Power consumption: 50W
  • Cabinet:
    • Cabinet Material: Metal
    • Color: Black
  • Physical Specifications:
    • Height: 85 mm / 3.34 inches
    • Width: 515 mm / 20.27 inches
    • Depth: 460 mm / 18.11 inches
    • Net Weight: 15.36 lbs. / 6.97 kg
