Attero Tech unD3IO 2x2 Channel Dante Audio Interface 2-Gang Wall Box, White

OUR PART #: UND3IO

Copied to clipboard

A cost-effective Dante™ audio interface, multi-IO wall box, the unD3IO from Attero Tech features a balanced mic/line XLR input... ...Read more

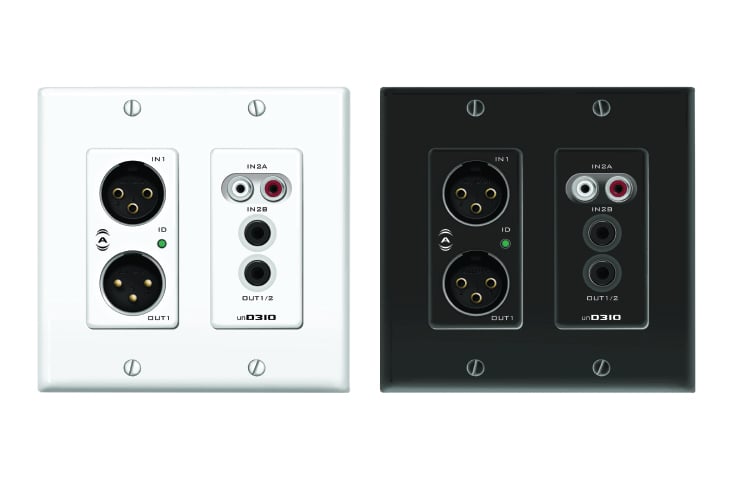

Attero Tech unD3IO 2x2 Channel Dante Audio Interface 2-Gang Wall Box, White Image 1
CKbBwYfzEbk
1 Video
Attero Tech unD3IO 2x2 Channel Dante Audio Interface 2-Gang Wall Box, White
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

A cost-effective Dante™ audio interface, multi-IO wall box, the unD3IO from Attero Tech features a balanced mic/line XLR input, a balanced XLR line output, 2 RCA line level inputs, and a 3.5mm TRS line-level input, with 3.5mm TRS line level output also included. It's designed to fit into most dual-gang US junction boxes and comes PoE-enabled, so all connectivity (power and data) is provided by a single Cat5 cable. Both the unit's size and input/output (I/O) density make it easy to locate Dante connectivity wherever it's needed - near the audio source or sink - thereby doing away with costly and interference-prone analog wiring.

Manufacturer's note: this product is not recommended for new designs - use the unD6IO instead.

Applications

Convenient, wall mounted mic/line I/O drops for:

Hotel ballrooms • Conference/meeting centers • Conference rooms • Sports facilities • Convention centers

Includes

  • unD3IO device
  • Mounting kit
  • Decora plate

unD3IO Features

  • (1) balanced XLR mic/line input, 2 RCA and one 3.5mm input
  • (1) balanced XLR line output plus a 3.5mm output
  • 802.3af compliant PoE powered to work with any compliant PoE network switch
  • (3) gain levels are available on the XLR input to accommodate a wide variety of input levels and devices. Input gain is adjustable via software.
  • +48 V Phantom power - powers virtually all types of phantom powered microphones typically used in installed AV systems. Phantom power is switchable via software.
  • Product Accessory kit available (sold separately)

Specification

  • Analog inputs (XLR):
    • Type: Balanced and RF filtered
    • Phantom Power: +48 V, software selectable (XLR input only)
    • Impedance: > 1.8 KΩ at any gain setting
  • EIN (Mic mode): -115 dBu (+40 dB gain)
  • Maximum Input Levels:
    • +8 dBu @ 0 dB gain
    • -16 dBu @ +25 dB gain
    • -31 dBu @ +40 dB gain
  • Analog inputs (RCA / Stereo jack): Balanced and RF-filtered, line-level, summed to mono
  • Analog Outputs:
    • Type: Unbalanced line level with automatic muting on loss of Dante signal
    • Maximum Output Level: +12 dBu
    • Output Noise: < -90 dBu @ 0 dB gain
  • Frequency Response: +/- 1 dB, 20 Hz to 20 kHz
  • System THD: < 0.01% at any gain
  • PoE Class: Class 0 802.3af PoE PD compliant
  • Power Consumption: Less than 3 W
  • Dimensions: 1.06" H x 6.45" W x 3.45" D
  • Certifications:
    • FCC CFR 47 Parts 15B
    • ICES-003
    • CE (EN55022)
  • Operating Temperature: 0 °C to 40 °C
  • Note: further information can be found within the items located under the "Documentation" tab above.
