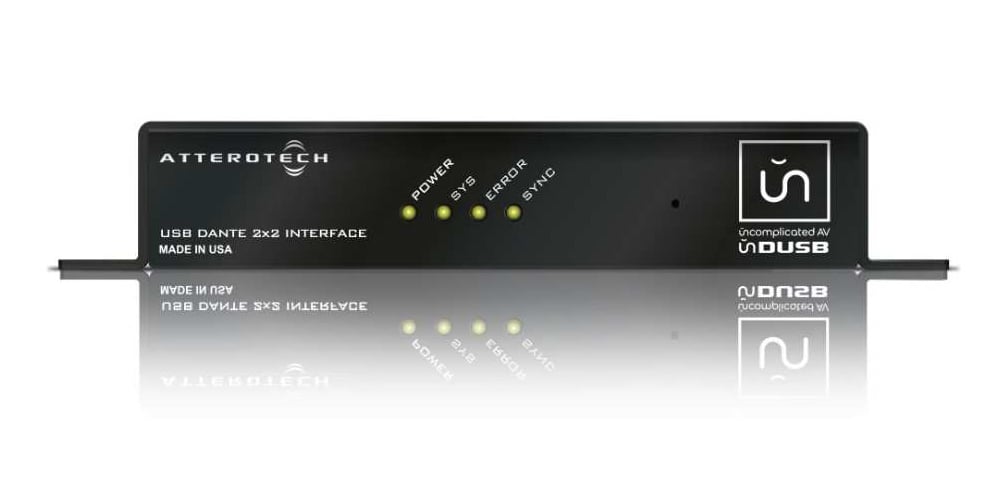

Attero Tech unDUSB
2x2 Channel Dante to USB Bridge

OUR PART #:  UNDUSB

The Attero Tech unDUSB bridges host USB devices like computers directly to a Dante network while keeping the audio signals in the digital domain.
Learn More
Our Price: $439.00
List Price: $549.00
You save 20%!
Write the first review.
Attero Tech unDUSB
Qty:
In Stock
Related Products

The Attero Tech unDUSB bridges host USB devices like computers directly to a Dante network while keeping the audio signals in the digital domain. The unDUSB enumerates on USB as a standard stereo sound card and provides two channels from Dante to USB and two channels from USB to Dante. The unDUSB uses USB audio drivers built into Windows and OSX so no additional drivers need to be installed.

Using an unDUSB, any computer program that can make use of a stereo sound card can instantly have input and output access to audio signals on a Dante network. Music, presentation audio, and even audio from collaboration applicaitons like Skype can be used in a Dante system. The unDUSB can be powered by compliant 802.3af devices, from +9VDC to +24VDC external supplies, or from the Power Link output connector from devices that support Power Link.

Attero Tech unDUSB Specifications:

  • Connection Types: USB - Type B, RJ-45
  • Max # of Output Channels: 2
  • Max # of Input Channels: 2
  • Frequency Response: +/- 1dB, 20 Hz - 20 kHz
  • Power Supply: 9-24V DC wall wart, PoE, Daisy chain power link
  • Power Consumption: Less than 4W
  • PoE Class: Class 0 802.3af PoE PD compliant
  • Dimensions: 1.06" H x 6.45" W x 3.45" D
  • Certifications:
    • FCC CFR 47 Parts 15 B
    • ICES-003
    • CE (EN55022)
  • Operating Temperature: 0┬░ C - 40┬░ C
