Rolls MP222
Dual-Channel Studio Microphone Preamp


Our Price: $163.00
List Price: $220.00
You save 26%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

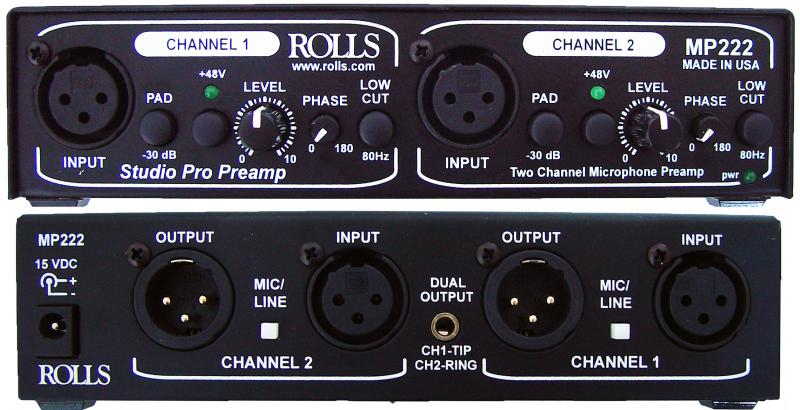

The Rolls MP222 Studio Pro Preamp is a dual-channel microphone preamp designed for use with both large diaphragm and standard studio mics. Each channel of the MP222 has front and back XLR transformer balanced mic inputs for top-notch audio quality and low noise, switchable 48v phantom power to insure maximum performance from your best studio mics, a 30db pad for input level adjustment, a 180 degree phase switch, an 80Hz low cut switch for low frequency filtering, and a variable output level control.

The output section provides both individual channel XLR outputs and a dual 1/8 inch stereo output for connection to a computer sound card or mini stereo input. Both outputs are switchable between mic/line level. The MP222 is housed in an all steel, half rack chassis and ships with a 15VDC outboard switching power supply.

Rolls MP222 Studio Pro Preamp Features:

  • Transformer Balanced Inputs
  • XLR Inputs and Outputs
  • +48 Volt Phantom Power
  • Mic/Line Level Switching
  • 30 dB Paddin

Rolls MP222 Studio Pro Preamp Specifications:

  • Input Impedance: mic - 600 Ohms or greater XLR
  • Frequency Response: 20 Hz - 30 kHz (+0 / -1 dB)
  • THD + Noise: .02%
  • Signal-to-Noise Ratio: 110 dB
  • Output connectors: 1/8” (3.5mm) stereo out. 2 Male XLR
  • Size: 6.75”w x 5.125”d x 1.75” h
  • Weight: 1.75 lbs.
