Epson PowerLite Pro Z9870NL
8700 Lumens XGA 3LCD Large Venue Projector without Lens

OUR PART #:  POWERLITE-Z9870NL

Epson's PowerLite Pro Z9870NL projector combines bright projection and XGA resolution - making it ideal for installation in auditoriums, lecture halls and other large venues.
Learn More

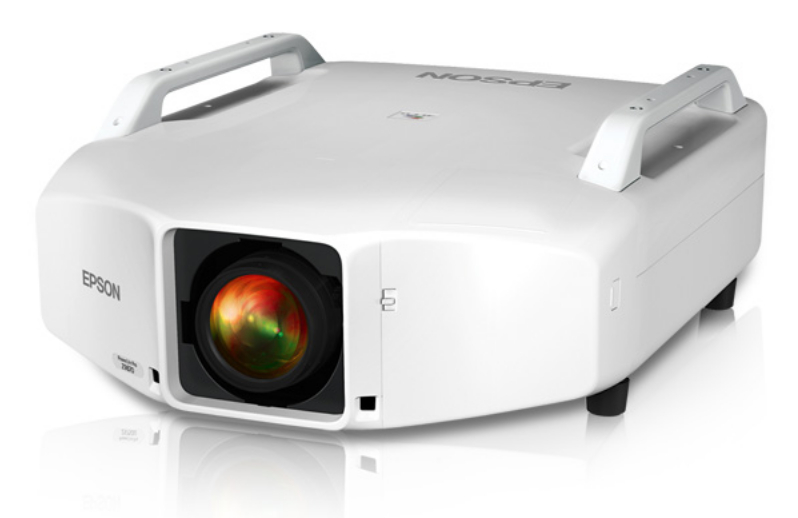

Epson PowerLite Pro Z9870NL - Front View
Epson PowerLite Pro Z9870NL - Top View
Epson PowerLite Pro Z9870NL - Rear View

Click a thumbnail to see more images. (5 total)

Call for price! Not available online.
List Price: $9,999.00

Similar Products

Epson's PowerLite Pro Z9870NL projector combines bright projection and XGA resolution - making it ideal for installation in auditoriums, lecture halls and other large venues. Offering 3x Brighter Colors* than competitive models, Epson projectors ensure vivid images. With 8,700 lumens of color brightness and 8,700 lumens of white brightness1, the Z9870NL makes content shine, even in ambient light.

NOTE: Some gear shown above NOT INCLUDED with purchase of this model. Actual product comes WITHOUT A LENS.

Featuring 3LCD, 3-chip technology and and an array of connectivity options - including HDBaseTTM - this powerful performer delivers uncompromised image quality and professional-grade reliability. And, installation has never been more flexible, with seven optional lenses, lens shift, Curved Edge Blending, Portrait Mode and 360-degree projection features.

NOTE: *Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Leading Epson 3LCD business and education projectors compared to leading 1-chip DLP projectors, based on NPD data for June 2013 through May 2014 and PMA Research data for Q1 through Q3 2013.

PowerLite Pro Z9870NL Includes:

  • PowerLite Pro Z9870NL projector
  • Power cable
  • Computer cable
  • Projector remote control
  • Batteries
  • Cable cover
  • User manual CD
  • Quick Setup Sheet
  • PrivateLine support card
  • Password protection sticker
  • Monitor and Control CD

PowerLite Pro Z9870NL Features:

  • 3x Brighter Colors and reliable performance — 3LCD, 3-chip technology*
  • One measurement of brightness is not enough — look for both high color brightness and high white brightness.
  • The PowerLite Pro Z9870NL has:
    • Color Brightness: 8,700 lumens1
    • White Brightness: 8,700 lumens1
  • Brilliant images — XGA (1024 x 768) resolution for presentations, videos, digital signage and more
  • Seven optional lenses with lens shift — including short-, wide-, rear- and long-throw lenses designed with a change-out lever for easy installation
  • Flexible installation for immersive experiences in any setting — built-in Curved Edge Blending, Portrait Mode projection, and 360-degree installation
  • Get twice the brightness and power — optional stackable frame makes it easy to install two projectors for unbelievable brightness, plus 3D support
  • Versatile connectivity — supports the latest connectivity options, including HDBaseT, HDMITM and DVI
  • Dual-lamp design with lamp select/relay function — get both power savings and projector redundancy; includes an innovative liquid cooling system for added reliability
  • Split Screen feature — project two images (video or still) side-by-side from two different sources simultaneously2
  • Convenient monitor and control features — easily manage the projector,either directly or remotely; compatible with AMX®, Crestron® and Extron®

NOTES on Features:

  • 1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
  • 2 Consult your user manual for input combinations.

PowerLite Pro Z9870NL Specifications:

  • Model: V11H607920
  • Projection System: High-aperture Epson 3-chip, 3LCD technology
  • Projection Method: Front / rear / ceiling mount
  • LCD Driving Method: Epson Poly-silicon TFT Active Matrix
  • Pixel Number: 786,432 pixels x 3LCDs
  • Color Brightness (Color Light Output): 8,700 lumens1
  • White Brightness (White Light Output): 8,700 lumens1
  • Aspect Ratio: Native 4:3 (supports 16:10, 16:9, 5:4)
  • Native Resolution: XGA (1024 x 768)
  • Contrast Ratio: Normal, Dynamic Mode: Up to 15,000:1
  • Color Reproduction: Up to 1.07 billion colors
  • Color Processing: 10 bit
  • Lamp Type:
    • Normal: 380 W x 2 UHE
    • Portrait: 304 W x 2 UHE
  • Lamp Life:
    • Normal:
      • ECO mode: Up to 4000 hours2
      • Normal mode: Up to 2000 hours2
    • Portrait:
      • Normal mode: Up to 1000 hours2
  • Brightness Uniformity: 90%
  • Pixel Arrangement: Cross stripe
  • Projection Lens:
    • Screen Throw Ratio Range : 1.74 – 2.82 (standard lens)
    • Size (projected distance): 60" – 500"
    • Type: Powered zoom / focus
    • F-number: 1.65 – 2.51 (standard lens), lens not included
    • Focal Length: 36 mm – 57.35 mm (standard lens)
    • Zoom Ratio: Optical zoom 1.0 – 1.61 (standard lens)
    • Lens Shift:
      • Powered:
        • Vertical: ±56%
        • Horizontal: ±19%
    • Keystone Correction:
      • Vertical: -30 degrees to +30 degrees
      • Horizontal: -30 degrees to +30 degrees
  • Video:
    • Video Standards:
      • Analog: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
      • HDMI: 480i / 576i / 480p / 576p / 720p /1080i / 1080p
      • DVI-D: 480i / 576i / 480p / 576p / 720p / 1080i / 1080p
    • Video Processing:
      • 3D Y/C separation, 3D noise reduction, mosquito noise reduction
      • DCDi — Directional Correlational Deinterlacing Motion-compensated Interlace-Progressive conversion (2:2, 3:2 film detection)
    • Super Resolution:
      • FineFrame Interpolation
      • 8:8 Pull-down Processing
    • Closed Captioning
  • Interfaces:
    • Inputs:
      • HDMI x 1
      • DVI-D x 1
      • HDBase-T x 1
      • Computer: D-sub 15 pin x 2
      • Video: BNC x 5
      • Composite Video: BNC x 1
      • Wired Network: RJ-45 x 1
      • Wireless Network: Optional
      • Serial: Rs-232c x 1
      • Hardwired Remote Jack x 1
      • Monitor-Out: D-sub 15 pin x 1
      • USB Type-A: For wireless only
      • USB Type-B: For service only
  • Networking:
    • Connectivity:
      • Wired: Integrated 100Mbps
      • Wireless: Optional — 802.11b/g/n
      • Wireless Security: WPA-PSK (TKIP/AES) / WPA2-PSK(TKIP/AES)
      • E-mail Notification: via network
      • Message Broadcasting: SNMP
      • Web Control: Secure HTTP
      • Remote Control and Management:
      • Epson EasyMP® Monitor
      • Network projection
      • Multi-projection
      • AMX® Device Discovery
      • Crestron® Integrated Partner and Crestron RoomView®
      • Extron® IP Link and XTP
      • PJLink
  • Other Features:
    • Speaker: None
    • Audio Output: None
    • Operating Temperature:
      • Normal: 32° to 122° F (0° to 50° C)
      • Above 4900 feet: 32° to 104° F (0° to 40° C)
    • Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz AC
    • Power Consumption:
      • ECO mode: 748 W
      • Normal mode: 844 W
      • Communication on: 2.7 W standby
      • Communication off: 0.26 W standby
    • Fan Noise:
      • ECO mode: 35 dB
      • Normal mode: 37 dB
    • Security: Kensington®- style lock provision, anchor (metal) bar for security lock or cable, handles attached to body for cable wrap
  • Dimensions (W x D x H):
    • Including feet (with standard lens): 21.02" x 29.17" x 10.04" (W x D x H)
    • Excluding feet (with standard lens): 21.02" x 29.17" x 7.76" (W x D x H)
    • Weight (with standard lens): 58 lb
  • Remote Control:
    • Features: Brightness, contrast, tint, saturation, sharpness, input signal, sync, tracking, position, zoom, focus, lens shift, shutter, ID, source search, split screen
    • Operating Angle:
      • Front:
        • Right / Left: ±60 degrees
        • Upper / Lower: -45 to +15 degrees
      • Rear:
        • Right / Left: ±60 degrees
        • Upper / Lower: -40 to +15 degrees
    • Operating Distance: 98 ft
