Blackmagic Design Blackmagic Video Assist
5" Full HD Touchscreen Field Monitor with 10-bit 4:2:2 Recorder

OUR PART #:  BMD-HYPERD/AVIDAS5HD

Blackmagic Video Assist adds professional monitoring and high quality recording to any camera. SDI and HDMI inputs mean you can connect to any video camera or DSLR’s.
Learn More

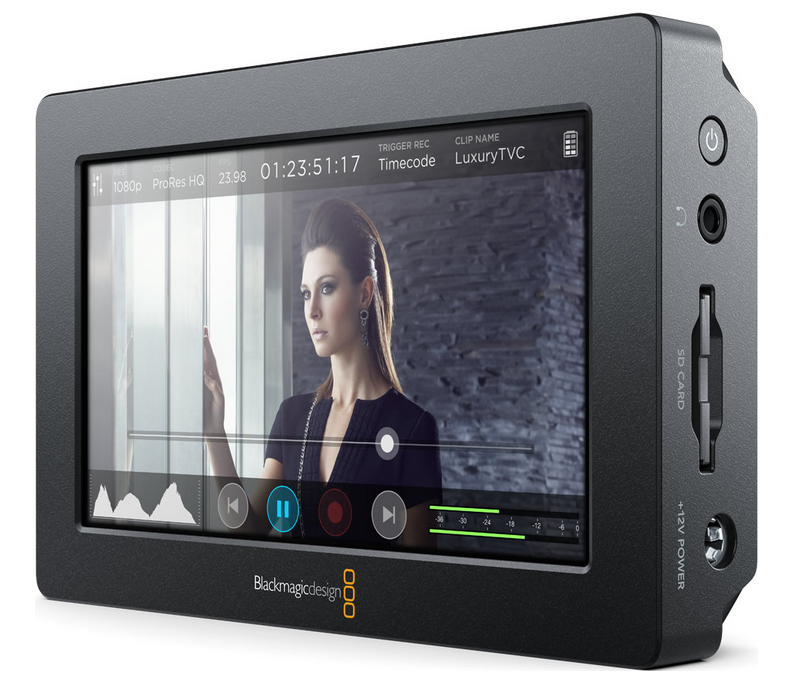

Blackmagic Video Assist - Touchscreen Control View
Blackmagic Video Assist - DSLR Example View
Blackmagic Video Assist - Side/Connector Views

Click a thumbnail to see more images. (5 total)

Our Price: $470.25
List Price: $495.00
You save 5%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blackmagic Design Blackmagic Video Assist
Qty:
In Stock

Similar Products

Blackmagic Video Assist adds professional monitoring and high quality recording to any camera. SDI and HDMI inputs mean you can connect to any video camera or DSLR’s. The 5” full resolution HD monitor ensures perfect focus and framing and the professional ProRes and DNxHD recorder uses high speed SD cards and saves files compatible with modern NLE software. The touchscreen allows settings, histogram, audio meters, timecode display and much more. Slots for dual LP-E6 batteries.

NOTE: Batteries sold separately.

Whether it’s a wedding, an indie film, or a television commercial, you need to make sure your images are perfectly sharp and captured at the highest possible quality, no matter what type of camera you use. The Blackmagic Video Assist works with everything from DSLR’s to older tape based camcorders, and even the latest digital film cameras. When you’re shooting a wedding, there’s only one chance to get it right and if you’re an indie filmmaker, you want your film to look as good as a Hollywood movie when projected at festivals. The Blackmagic Video Assist helps you make sure every shot is in focus and gives you professional images with the quality used by major motion pictures and prime time TV shows!

The Blackmagic Video Assist records your video at the highest 10-bit 4:2:2 quality, which means that you get incredible color, clarity and detail. Files are recorded on fast, inexpensive and readily available SD cards and saved as standard ProRes HQ or DNxHD files so you can start editing immediately without having to convert the files. Recording is automatically triggered on your Blackmagic Video Assist using your video camera’s start/stop button, so you can remain focused on getting the shot without having to worry about operating additional gear!

The Blackmagic Video Assist has a bright 5 inch 1920 x 1080 high resolution display so you don’t have to carry extra on set monitors and scopes. You can mount it on cameras as a large monitor for the crew, hand it to the cinematographer for composing the shot, or set it in front of the director to review each take. The screen has a wide 135º viewing angle, which means it’s easy to see, even when several crew members are watching. Plus, the image auto rotates so no matter which way you set it up your cables always plug into the side you need them to. You can view any SD or HD format and, since it includes a 6G-SDI connection, you can even monitor Ultra HD!

The built in monitor is also an interactive touchscreen that makes setting up the Blackmagic Video Assist incredibly intuitive. All of the functions are at your fingertips allowing you to use simple swipe gestures to display camera information, change settings and evaluate audio and video levels. The elegant heads up display is a semi transparent overlay that let’s you change recording formats or view the current input frame rate, histogram, audio meters, timecode, and more, all while still keeping your eyes on the shot!

Designed to be durable and light weight, Video Assist is incredibly small yet still incorporates a bright 5 inch 1920 x 1080 LCD monitor and touchscreen. It includes a built in high speed SD recorder and space for two rechargeable batteries which are hot swappable so you always have a battery to keep the shoot going. You can use the mounting points to attach it to the top of a camera or use the built in kick stand to set it up on a table. It’s even comfortable enough to hold in your hands so you can pass it around to crew members, letting everyone from the cinematographer to the boom operator see the shot!

The compact design of the Blackmagic Video Assist includes HDMI and 6G-SDI inputs so you can record from virtually any video camera or DSLR. The loop through output lets you monitor on larger HD broadcast displays or HDMI projectors. Audio can be monitored from the 3.5mm stereo headphone jack and for studio shoots, the 12V universal power supply gives you continuous operation. When you’re on location the two side by side LP-E6 battery slots let you go completely mobile and give you enough power for longer shoots.

Blackmagic Video Assist Includes:

  • Blackmagic Video Assist
  • +12V universal power supply included with international socket adapters for all countries.

Blackmagic Video Assist Features:

  • Aluminium Metal Frame
  • Large 5 Inch HD Monitor
  • Touchscreen Control
  • 6G-SDI and HDMI connections
  • Multiple Mounting Points
  • Uninterruptible Power via power supply orrechargeable battery compatibility (batteries notincluded)

Blackmagic Video Assist Specifications:

  • Model: HYPERD/AVIDAS5HD
  • Connections:
    • SDI Video Input: 1 x SD/HD/3G/6G-SDI via DIN 1.0/2.3 connector
    • SDI Video Output: 1 x SD/HD/3G-SDI via DIN 1.0/2.3 connector
    • HDMI Video Input: 1 x HDMI type A connector
    • HDMI Video Output: 1 x HDMI type A connector
    • SDI Audio Input: 16 channels embedded in SD and HD in QuickTime files, 2 channels in Avid DNxHD MXF files
    • SDI Audio Output: 16 channels embedded in SD and HD in QuickTime files, 2 channels in Avid DNxHD MXF files
    • HDMI Audio Input: 2 channels embedded in SD and HD QuickTime files and Avid DNxHD MXF files.
    • HDMI Audio Output: 2 channels embedded in SD and HD QuickTime files and Avid DNxHD MXF files.
    • Audio Output: 1 x 3.5 mm stereo analog audio output jack.
    • SD Interface: 1 x UHS-1 SD slot
    • Storage Type: Removable SDXC UHS-1 and SDHC UHS-1 cards. Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.
    • Recorder Control: Integrated capacitive touch LCD screen with onscreen controls for settings and navigating menus.
    • Screen Dimensions: 5" 1920 x 1080p60 capacitive touchscreen LCD.
    • Recorder Configuration: Via the device's USB port or the device's user interface.
    • Computer Interface: 1 x Mini-B USB 2.0 connector for initial setup, software updates and HyperDeck Utility software control.
  • Codecs:
    • Supports: Apple ProRes 422 HQ, ProRes 422, ProRes LT, ProRes Proxy, Avid DNxHD.
  • SDI Video Standards:
    • SD Format Support: 625/50i PAL, 525/59.94i NTSC
    • HD Format Support: 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.
    • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M.
    • SDI Metadata Support: HD RP188 and closed captioning.
    • Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
    • Video Sampling: 4:2:2 YUV
    • Color Precision: 10-bit
    • Color Space: REC 601, REC 709
    • Multiple Rate support: SDI and HDMI switches between 270 Mb/s SD , 1.5 Gb/s HD , and 3.0 Gb/s 60P HD.
  • HDMI Video Standards:
    • SD Format Support: 625/25 PAL, 525/29.97 NTSC, 480p60 and 576p50
    • HD Format Support: 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.
    • HDMI Color Precision: 10-bit
    • Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
  • Operating Systems:
    • MAC: Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later.
    • WINDOWS: Windows 7 or Windows 8.
  • Power Requirements:
    • 2 x rechargeable LP-E6 Lithium-Ion batteries (not included).
    • +12V universal power supply included with international socket adapters for all countries.
  • Physical:
    • Dimensions (H x W x D): 3.54 x 5.63 x 1.20 in.
    • Weight: 12.77 oz.
  • Environmental:
    • Operating Temperature: 5° to 40° C (41° to 104° F)
    • Storage Temperature: -21° to 45° C (-6° to 113° F)
    • Relative Humidity: 0% to 90%non-condensing
