Line Level Volume Control Module with Serial Loop Through

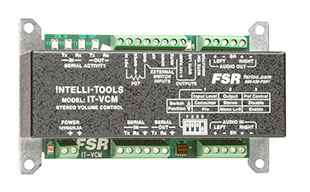

The IntelliTools IT-VCM is a stereo or mono line level volume control module.
Learn More
Our Price: $223.28
List Price: $229.00
Write the first review.
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The IntelliTools IT-VCM is a stereo or mono line level volume control module. The IT-VCM accepts a balanced or unbalanced stereo audio line level source and provides a balanced stereo output. The module is able to sum the stereo inputs to mono. An input gain switch can be set to boost the low audio level of consumer equipment to professional levels. The unit can be used in any application where remote control of the audio level is desired, such as between the pre-out and main-in jacks of integrated amplifiers or receivers that were built without remote control.

The IT-VCM can be controlled three different ways: RS-232 commands, remote switches or remote potentiometer.


  • Balanced / unbalanced into balanced output
  • Stereo In to Mono out switch
  • Control volume via RS-232, remote switches orexternal potentiometer
  • O / +12dB consumer boost switch
  • Serial activity indicators
  • Power and mute indicators


  • Power Requirements:
    • Power Supplies are sold separately.
    • One Power Supply can power up to (5) IT-VCM modules, saving wiring headaches and money.
