Earthworks IMBL30-B

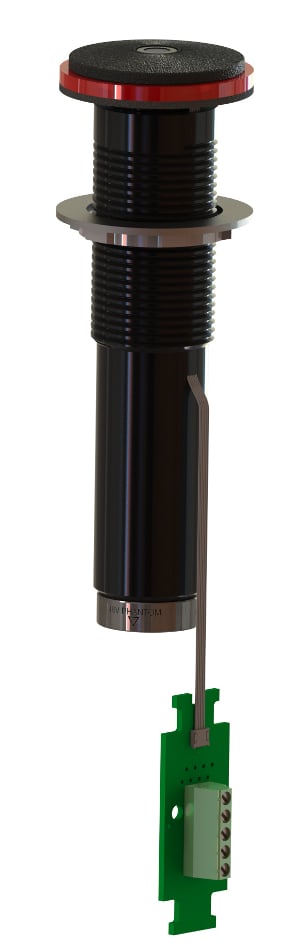

1.43" Semisphere Boundary Microphone, Black

OUR PART #:  IMBL30-B

Our Price: $819.00
List Price: $1,024.00
You save 20%!
Write the first review.
Earthworks IMBL30-B
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The Earthworks IMBL Boundary Layer Microphones provide a pristine sounding microphone solution for permanent installations when keeping a low profile is of the utmost importance. Extended high frequency response to 30kHz and True Semisphere™ polar response allow those speaking to maintain the same intelligibility at the front and sides of the microphone without a loss of high frequencies. In addition, the extremely fast diaphragm settling time allows more subtle details of the human voice to be reproduced, which adds to the microphones' amazing clarity.

Primary applications include teleconferencing, distance learning, surveillance, boardrooms, government facilities, and ambient room miking.

Earthworks IMBL30-B Features:

  • Only 1.4375 inch (3.6cm) in diameter
  • True Semisphere™ Polar Response
    • Near-perfect frequency response at 0°, 45°, & 90°
  • 60Hz to 30kHz frequency response
  • LumiComm™ Programmable LED Touch Ring (with red and green LEDs)
  • Can be installed in conference tables(includes lock nut)
  • Very high intelligibility
  • RF Shielding against cell phones and other RF devices
  • More gain before feedback
  • Requires 48V Phantom Power

Earthworks IMBL30-B Specifications:

  • Frequency Response: 60Hz to 30kHz ±2dB at 45° incidence to the surface
  • Integrated Low Cut Filter Attenuation: -15 dB at 60Hz
  • Polar Pattern: True Semisphere™
  • Sensitivity: 70mV/Pa at 1kHz
  • Power Requirements: 48V Phantom, 10mA
  • Max Acoustic Input: 136dB SPL
  • Output: XLR-3 (pin 2+)
  • Output Impedance: 100 Ohm balanced (50-Ohm each pins 2& 3)
  • Min Output Load: 1K between pins 2 & 3
  • Noise: 19.5 dBA (Typical)
  • IMBL Light Ring Connector: Phoenix or RJ45
  • IMBL Light Ring Voltage: 8-28VDC @ 85-170mA
  • IMBL Light Ring Activation: Momentary Digital Pulse
  • Microphone Color: Black
  • Weight: 0.28 lbs. (125g)
