Martin Professional JEM ZR35
1500W 4L Fog Machine

OUR PART #:  ZR35

The JEM™ ZR35 from Martin Professional is a mid-sized fog machine designed to deliver superior and uninterrupted performance in demanding professional applications.
Learn More

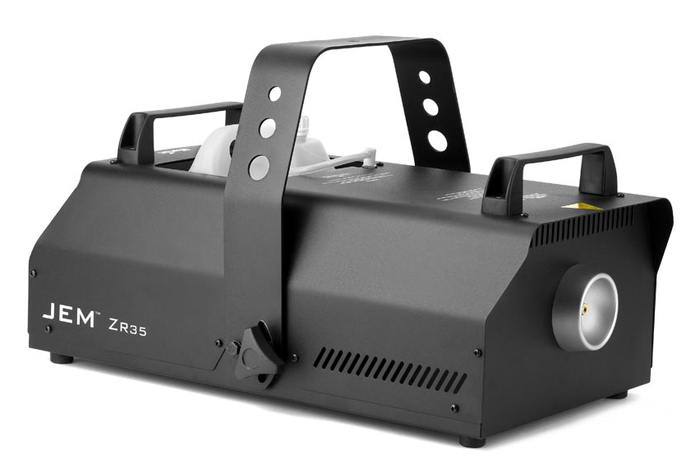

Martin Professional JEM ZR35 - Angled View
Martin Professional JEM ZR35 - Control Panel View
Martin Professional JEM ZR35 - Front View

Click a thumbnail to see more images. (5 total)

Our Price: $1,100.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Martin Professional JEM ZR35
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The JEM™ ZR35 from Martin Professional is a mid-sized fog machine designed to deliver superior and uninterrupted performance in demanding professional applications. Via its 1,500W heat exchanger, the JEM ZR35 produces peak output ideal for mid to large-sized venues and stages in both install and rental markets. The rugged yet weight optimized JEM ZR35 also features variable output control for more subtle effects and is fully up-to-date with digital remote, DMX and RDM. The entire JEM ZR range is compatible with a wide range of JEM Pro fog fluids. As machines designed and built to last, the JEM ZRs will continue to perform with great output and low consumption.

Martin Professional JEM ZR35 Includes:

  • JEM ZR35 Fog Machine
  • Fluid container, 4 l
  • Digital remote control, JEM® ZR series
  • User manual

NOTE: Power cables and connectors are not included and must be ordered separately.

Martin Professional JEM ZR35 Features:

  • 1,500W heat exchanger
  • 70 ml in 30 seconds peak performance
  • Variable output control for subtle effects
  • 8-9 minute warm-up time
  • Digital remote, DMX and RDM
  • Compatible with a wide range of JEM Pro fog fluids
  • Floor standing or truss mounting (bracket included)
  • PowerCON TRUE1
  • 4-liter bottle (also compatible with a 5-liter bottle)

Martin Professional JEM ZR35 Specifications:

  • Ordering Information:
    • JEM ZR35 US Model: P/N 92215350
  • Physical:
    • Length: 590 mm (23.3 in.)
    • Width: 395 mm (15.6 in.)
    • Height: 264 mm (10.4 in.)
    • Height including hanging bracket: 333 mm (13.9 in.)
    • Dry weight: 15.1 kg (33.3 lb.)
  • Performance:
    • Operating time: Continuous
    • Max. operating time at full output with 4 l fluid: 75 minutes (approx.)
    • Warm-up time: 9 minutes (approx.)
  • Control and Programming:
    • Control options: Remote control (supplied), DMX, onboard control panel
    • Output control: Instant or timer-controlled variable output
    • DMX channels: 1
    • DMX compliance: USITT DMX512/1990
  • Construction:
    • Housing: Steel & aluminum
  • Fluid System:
    • Fluid pump: Oscillating piston, high pressure
    • Onboard fluid capacity: 4 liters
  • Installation:
    • Floor or integral hanging bracket
  • Connections:
    • Power: Neutrik powerCON TRUE1
    • Remote Control: 3-pin locking XLR
    • DMX data: 5-pin locking XLR
  • Electrical:
    • US Model:
      • AC Power: 110-120 V nominal, 60 Hz
      • Main Fuse: 15 AT (slow blow), 125 V
      • Typical Power Current: 1450 W, 12.1 A*

NOTE: *Measurements made at nominal voltage. Allow for a deviation of +/- 10%.

  • Thermal:
    • Maximum ambient temperature (Ta max.): 40° C (104° F)
    • Exterior surface temperature, steady state at 20° C ambient: 30° C (86° F)
    • Max. nozzle temperature: 290° C (554° F)
  • Approvals:
    • EU safety: EN 60335-1
    • EU EMC: EN 61000-6-3
    • Immunity: EN 61000-6-1, EN 62233 Electromagnetic fields
    • US Safety (pending): UL 998
    • Canadian safety: CSA C.22.2 No. 104
