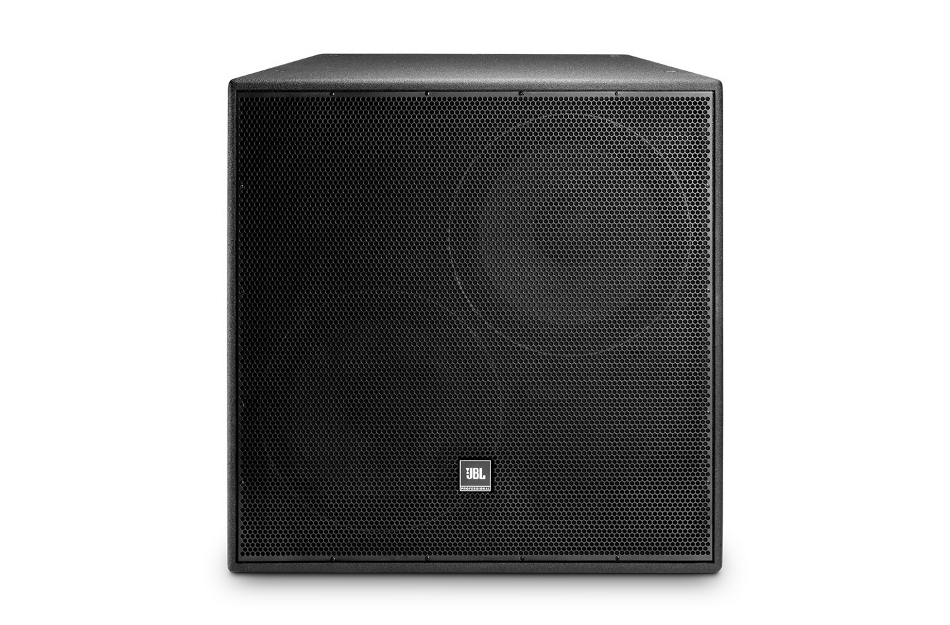

JBL PD525S
Dual 15" Subwoofer, 28Hz-3.8kHz

OUR PART #:  PD525S

JBL Electronics’ PD525S is a high-power, low frequency loudspeaker comprised of two 380 mm (15 in) Dual Coil - Dual Gap Differential Drive®...
Learn More
Our Price: $2,568.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL PD525S
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

JBL Electronics’ PD525S is a high-power, low frequency loudspeaker comprised of two 380 mm (15 in) Dual Coil - Dual Gap Differential Drive®, VGC™ low frequency drivers in a front-loaded, vented configuration. The trapezoidal cabinet is fitted with M10 threaded suspension points, and is intended for use as a flown, high-power, low frequency module used in conjunction with all full-range PD500 Series loudspeakers. The PD525S will perform well in any application where high output low-frequency is required. Low frequency transducers are the 2275H 380 mm (15 in) VGC Vented Gap Cooled drivers.

The speaker delivers excellent low frequency extension with minimal power compression, along with low distortion plus high sensitivity and power handling. Multiple vents assures minimal port compression and low distortion at high output levels.  The PD525S is a high power low frequency loudspeaker comprised of two 380 mm (15 in) Dual Coil - Dual Gap Differential Drive®, VGC™ low frequency drivers in a front-loaded, vented configuration.

Standard finish is black DuraFlex™, with white available as a cost-free option. Weather resistant and unpainted versions are also available. Applications include sports facilities, performance spaces, auditoriums and worship facilities.

JBL Electronics PD525S Features:

  • Two high power 380 mm (15 in) low frequency drivers
  • Low frequency extension to 40 Hz
  • Enclosure dimensions compatible with all PD500 Series models

JBL Electronics PD525S Specifications:

  • Frequency Range (-10 dB): 28 Hz to 3.8kHz
  • Frequency Response (±3 dB): 40 Hz to 1.1kHz
  • Transducer Power Ratings (AES): 2000 W (8000 W peak) 2 hrs
  • System Power Rating: TBD
  • Sensitivity (1W @ 1m): 102 dB (avg 40-1kHz)
  • Maximum SPL: 135 dB cont (141 dB peak)
  • Input Modes: Drivers Parallel/Drivers Discrete
  • Nominal Impedance:
    • 4 ohms in parallel-drive mode
    • 2 x 8 ohms in discrete drive mode
  • Low Frequency Driver: 2 x JBL 2275H 380 mm (15 in) Dual Coil - Dual Gap Differential Drive®, VGC™ drivers with 75 mm (3 in) voice coil
  • Enclosure: Trapezoidal with 10 degree side angles, 18 mm exterior grade 11-ply Finnish birch plywood.
  • Suspension Attachment: 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included)
  • Finish: Black DuraFlex™ finish. White (-WH) available upon request.
  • Optional Weather Resistant Versions:
    • WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements.
    • WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperature. See WRC/WRX configuration sheet for details.
  • Grille: Powder coated 14 gauge perforated steel, acoustically transparent backing
  • Input Connectors: CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
  • Environmental Specifications: Mil-Std 810; IP-x3 per IEC529.
    • For higher environmental ratings, use WRC or WRX.
  • Dimensions (H x W x D in vertical orientation): 783.59 x 789.94 x 669.80 mm (30.85 x 31.10 x 26.37 in)
  • Net Weight: 53.4 kg (118 lb)
  • Optional Accessories: 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts.
