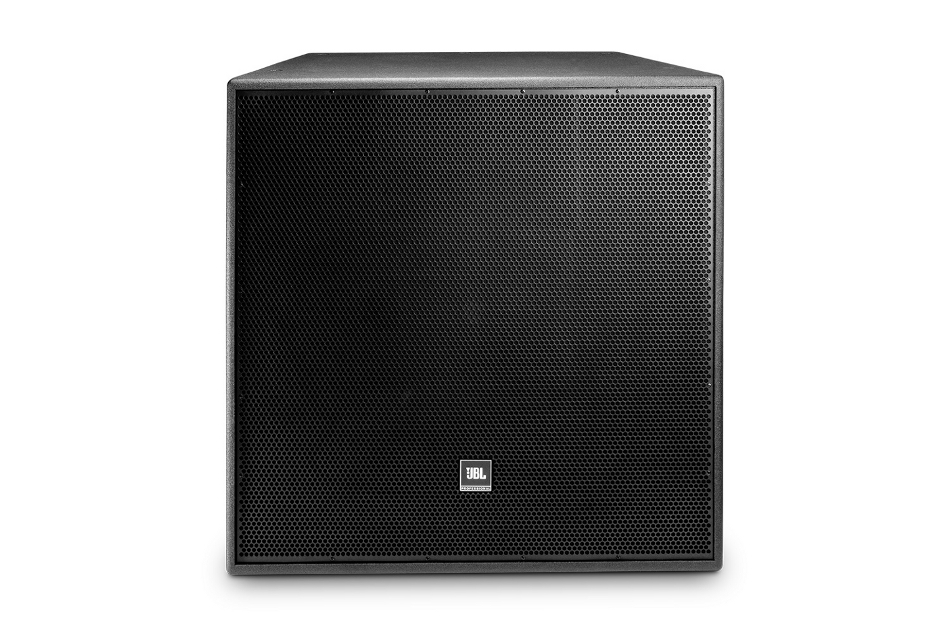

JBL PD595 15" 2-Way Full-Range, 90X50 Image 1
JBL PD595 15" 2-Way Full-Range, 90X50 Image 2
JBL PD595 15" 2-Way Full-Range, 90X50 Image 3
JBL PD595 15" 2-Way Full-Range, 90X50
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The JBL Electronics PD595 is a Precision Directivity™ loudspeaker designed for applications requiring high output capability with excellent pattern control. The PD595 can be utilized in music or speech systems where frequency extension to 80 Hz is adequate, or combined with subwoofers to create extended bandwidth fullrange systems. The 2031H 380 mm (15”) low frequency transducer features high sensitivity and low power compression for high, continuous SPL capability. It is horn-loaded for additional sensitivity and improved pattern control. The 2432H 38 mm (1.5”) exit, 75 mm (3”) voice coil high frequency compression driver utilizes a neodymium magnet and aluminum diaphragm to deliver clear high-frequency projection, extended frequency response, and low distortion at even the highest drive levels.

The system is equipped with a large format rotatable PT waveguide allowing the PD595 to be used in either the vertical or horizontal orientation. The loudspeaker can be operated in either biamplified or full passive mode. In either case, digital signal processing is required in order to achieve specified performance. Input connectivity is achieved via CE-compliant covered barrier strips, and the cabinet is fitted with twenty-two M10 threaded suspension points supporting a wide variety of installation approaches.

JBL Electronics PD595 Features:

  • 380 mm (15”) horn-loaded low-frequency driver
  • Large PT™ Progressive Transition™ waveguides
    • Provide broad band 90° x 50° pattern control, low distortion at high SPL levels and smooth frequency response
  • Rotatable waveguide allows for either horizontal or vertical cabinet orientation
  • Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes

JBL Electronics PD595 Specifications:

  • Frequency Range (-10 dB): 50Hz to 20kHz
  • Frequency Response (±3 dB): 90Hz to 16kHz
  • Coverage Pattern: 90° x 50°
  • Directivity Factor (Q): 10
  • Directivity Index (DI): 10 dB
  • Crossover Modes: Bi-amp/Passive switchable
  • Passive Crossover: 1.3 kHz
  • Transducer Power Ratings (AES):
    • LF: 450W 2hrs, 300W 100hrs
    • HF: 75W, 2hrs, 50W 100hrs
  • System Power Rating (IEC) Passive mode:
    • 500W - 2 hrs
    • 300W - 100 hrs (IEC)
  • Maximum SPL:
    • Bi-amp: LF: 133 cont (139 peak)
    • HF: 131 cont (137 peak)
    • Passive: 131 cont (137 peak)
  • System Sensitivity (1W @ 1m):
    • Passive Mode: 104 dB SPL
  • Nominal Impedance: 8 ohms
  • Transducers
    • Low Frequency Driver: 2031H 380 mm (15 in) driver with 75 mm (3 in) voice coil
    • Nominal Impedance: 8 ohms
    • Sensitivity (1W, 1m within operational band): 106 dB (avg 300Hz-1.3kHz)
    • High Frequency Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
    • Nominal Impedance: 8 ohms
    • Sensitivity (1W @ 1m): 113 dB (avg 1.5k-5kHz)
    • Waveguide: HF: PT-H40HF-1 300 x 300 mm (12 x 12 in)
  • Enclosure:
    • Trapezoidal with 10 degree side angles
    • 18 mm exterior grade 11-ply
    • Finnish birch plywood
  • Suspension Attachment: 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included)
  • Finish: Black DuraFlex™ finish. White (-WH) available upon request.
  • Optional Weather Resistant Versions:
    • WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements.
    • WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperature. See WRC/WRX configuration sheet for details.
  • Grille: Powder coated 14 gauge perforated steel, acoustically transparent and weather resistant cloth backing.
  • Input Connectors:
    • Neutrik Speakon® NL4, plus CE-compliant covered barrier strip terminals
    • Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs
    • Speakon in parallel with barrier strip for loop-through.
  • Environmental Specifications: Mil-Std 810; IP-x3 per IEC529.
    • For higher environmental ratings, use WRC or WRX.
  • Dimensions (H x W x D in vertical orientation): 783.59 x 789.94 x 669.80 mm (30.85 x 31.10 x 26.37 in)
  • Net Weight: 69.0 kg (152 lb)
  • Optional Accessories: 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts.
