Whirlwind STSR258
58 Channel Concert Series 2-Way Snake/Splitter System

OUR PART #  STSR258

Call for price! Not available online.
List Price: $53,310.00

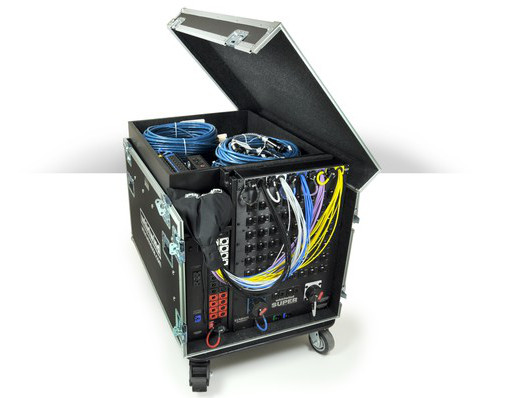

The Whirlwind Super Tour is an entire 58 channel Concert Series snake system, neatly packed into a single road case. Super Tour packages are very popular with hotels, casinos, convention centers and touring sound companies and include all of the cabling you need for FOH, monitors and broadcast (optional). Also included is Whirlwind's legendary Patchmaster system, complete with sub snakes.

All Super Tour splitters feature a W4 direct output on the rear, with the option of one or two isolated W4 outputs on the front panel. The 300' FOH cable consists of a 58 channel W4 cable, 12 channel W1 drive cable and AC cable bundled together. This cable coils neatly behind the splitter and exits through a trap door on the rear of the road case.

The Whirlwind STSR258 2-Way System Includes:

  • (1) STSCSR258: SuperTour Splitter: 58-channel, 2-way ISO w/ Whirlwind TRSP-1F transformers. Direct Out on rear, single ISO out on front. Both outputs on Whirlwind W4 MASS connectors.
  • (1) STSCASE: SuperTour Road Case w/ removable lid and front, houses all components and cables.
  • (1) STSACPANEL: SuperTour AC power disconnect panel
  • (1) PATCHMASTER60: PatchMaster system with 51 multipin inputs to color-coded tails.
  • (1) STSC5812AC300: 300' 3-piece main trunk, joined with heavy duty heatshrink, consists of 1 each:
       · 58 channel W4 toW4 MASS interconnect cable
       · 300' 12 channel W1 toW1 drive interconnect cable
       · 300' 12-3 AC power cable w/ Neutrik Powercon connectors
  • (1) FM562XLW4IRP(I)10SS:  10' fanout for FOH, 56inputs, 2 returns
  • (2) FM562XLW4IRP(I)25SS:  25' fanouts for split #2 and split #3, 56 inputs, 2 returns
  • (1) STSD12S1: Color-coded Drive Output panel w/ W1input.
  • (1) STSD12F1: 12 channel drive panel for FOH
  • (2) B120NRW1IM50 + COLOR: 12 channel drop boxes with50' cable to W1
  • (3) B120NRW1IM100 + COLOR: 12 channel drop boxes with 100' cable to W1



Whirlwind STSR258
58 Channel Concert Series 2-Way Snake/Splitter System

OUR PART #  STSR258

Product Information:

The Whirlwind Super Tour is an entire 58 channel Concert Series snake system, neatly packed into a single road case. Super Tour packages are very popular with hotels, casinos, convention centers and touring sound companies and include all of the cabling you need for FOH, monitors and broadcast (optional). Also included is Whirlwind's legendary Patchmaster system, complete with sub snakes.

All Super Tour splitters feature a W4 direct output on the rear, with the option of one or two isolated W4 outputs on the front panel. The 300' FOH cable consists of a 58 channel W4 cable, 12 channel W1 drive cable and AC cable bundled together. This cable coils neatly behind the splitter and exits through a trap door on the rear of the road case.

The Whirlwind STSR258 2-Way System Includes:

  • (1) STSCSR258: SuperTour Splitter: 58-channel, 2-way ISO w/ Whirlwind TRSP-1F transformers. Direct Out on rear, single ISO out on front. Both outputs on Whirlwind W4 MASS connectors.
  • (1) STSCASE: SuperTour Road Case w/ removable lid and front, houses all components and cables.
  • (1) STSACPANEL: SuperTour AC power disconnect panel
  • (1) PATCHMASTER60: PatchMaster system with 51 multipin inputs to color-coded tails.
  • (1) STSC5812AC300: 300' 3-piece main trunk, joined with heavy duty heatshrink, consists of 1 each:
       · 58 channel W4 toW4 MASS interconnect cable
       · 300' 12 channel W1 toW1 drive interconnect cable
       · 300' 12-3 AC power cable w/ Neutrik Powercon connectors
  • (1) FM562XLW4IRP(I)10SS:  10' fanout for FOH, 56inputs, 2 returns
  • (2) FM562XLW4IRP(I)25SS:  25' fanouts for split #2 and split #3, 56 inputs, 2 returns
  • (1) STSD12S1: Color-coded Drive Output panel w/ W1input.
  • (1) STSD12F1: 12 channel drive panel for FOH
  • (2) B120NRW1IM50 + COLOR: 12 channel drop boxes with50' cable to W1
  • (3) B120NRW1IM100 + COLOR: 12 channel drop boxes with 100' cable to W1
